Mini 4K HD CMOS OV08D10 Sensor Night Vision Flexible FPC Camera Module

Product Description:

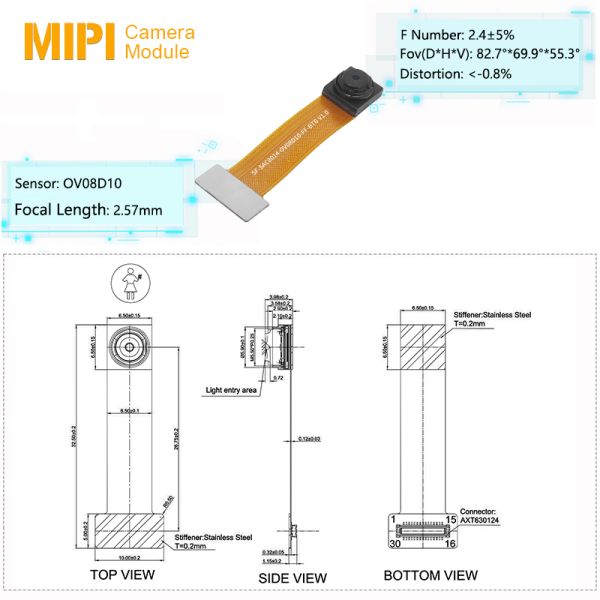

This is a mini 4K HD CMOS OV08D10 sensor night vision flexible FPC camera module. Its core is a 1/4-inch OmniVision OV08D10 image sensor, with comprehensive and balanced hardware parameter configuration, which can be widely adapted to the image collection needs of intelligent devices in various fields. It has 8 million effective pixels, a single pixel size of 1.12μm x 1.12μm, and can stably output ultra-high-definition video streams with 4K resolution @ 30 frames per second. The module integrates advanced PureCel® pixel technology and hardware HDR function, significantly improving image purity and dynamic range, and supports 10-bit RAW format data output, retaining rich original information for post-image processing. The optical system adopts an F2.4±5% precision aperture lens, with a focal length of 2.57mm, a depth of field ranging from 65cm to infinity, a field of view of D82.7°×H69.9°×V55.3°, and TV distortion strictly controlled within -0.8%. Equipped with a MIPI CSI-2 high-speed interface, it supports 1.5Gbps bandwidth transmission per channel. The entire module is manufactured using precision COB packaging and AA (Active Alignment) process, ensuring excellent consistency and reliability, and has fully passed international certifications such as CE, FCC, RoHS and Reach, complying with global market access standards.

Features:

1. Flexible FPC Design: Utilizes an FPC (Flexible Printed Circuit) substrate. Compared to traditional rigid substrates, it offers thin, lightweight, and bendable characteristics, allowing for easy adaptation to installation requirements in cramped spaces or devices with irregular structures, thereby reducing device integration complexity.
2. All-Scenario Light Sensing: PureCel® technology and HDR functionality work in synergy. Combined with the 1.12μm x 1.12μm pixel size and F2.4 aperture, they enable stable imaging across diverse lighting environments, including strong light, low light, and backlit conditions.
3. High-Speed & HD Output: The combination of 8MP resolution and 4K@30fps frame rate fulfills the demand for high-definition image capture while ensuring smooth video output. The 10-bit RAW format provides ample room for post-image processing.
4. Precision Manufacturing: The COB process enhances module integration and anti-interference capability. The AA (Active Alignment) process ensures the assembly precision of optical components. Coupled with multiple international certifications, these features guarantee the operational stability and compliance of the product in different environments.

Technical Parameters:

Applications:

• Consumer Electronics: Adaptable for smart speakers with screens, portable projectors, and other consumer devices where flexible design accommodates compact structures and HD imaging meets basic needs like video calls and scene preview.
• Smart Home: Deployed in smart refrigerators, smart mirrors, and interactive home appliances, the wide field of view captures user movements and surroundings completely, while HDR ensures clear imaging under varying indoor lighting conditions.
• Automotive Imaging: Serves as rear-seat entertainment screens and secondary monitoring cameras in vehicles. The FPC flexible design adapts to complex in-vehicle installation spaces, and 4K HD output enhances visual experiences for entertainment and surveillance.
• Commercial Self-Service Terminals: Applied in self-service photo booths and ID document kiosks, the 8MP HD imaging meets clarity requirements for ID photos and document capture, while low distortion ensures captured image proportions comply with regulatory standards.

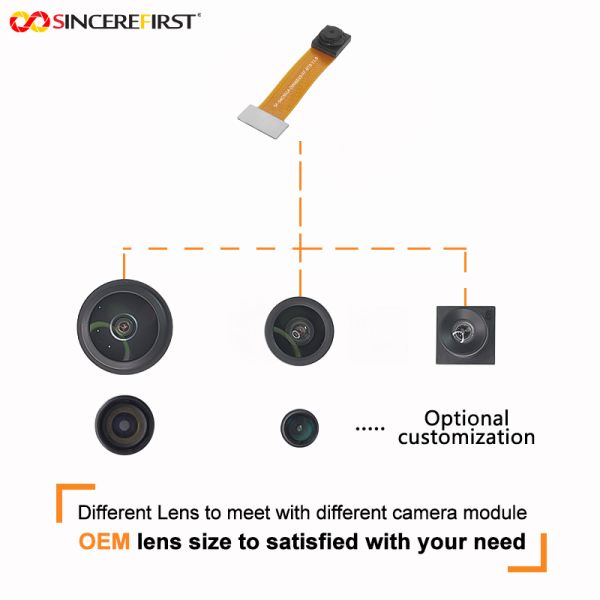

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
