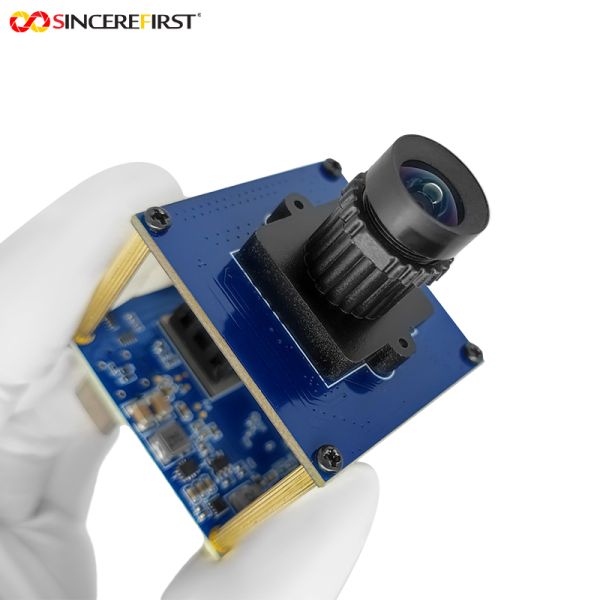

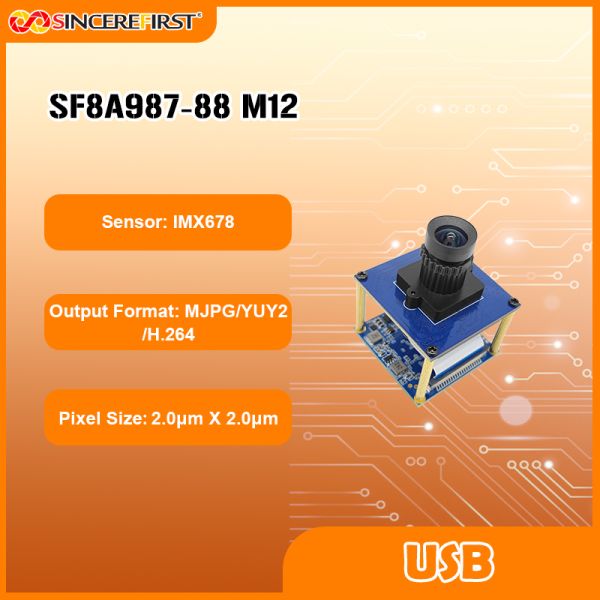

HDR 8.4MP Sony IMX678 Sensor USB Camera Module

Product Description:

This is an HDR 8.4MP Sony IMX678 Sensor USB Camera Module. It adopts the Sony IMX678 CMOS color image sensor, featuring 8.4MP ultra-high pixels and capable of outputting true 4K (3840×2160) resolution images with a smooth frame rate of up to 60fps. The core sensor has a size of 1/1.8 inch, and each pixel measures 2.0μm×2.0μm, ensuring excellent light-sensing performance. The module supports advanced STARVIS 2 technology and Clear HDR function; its optical configuration provides an 86° wide field of view and manual focusing capability with a focusing range from 1cm to infinity.​
In terms of video output, it is fully compatible with multiple formats including MJPG, YUY2, and H.264. The hardware adopts a compact 38mm×38mm design, equipped with a Type-C interface and supporting USB 3.0 high-speed transmission. It is perfectly compatible with the UVC protocol, supporting plug-and-play functionality for mainstream operating systems such as Windows, Linux, and macOS, as well as development boards like Raspberry Pi. The product offers professional SDK support and is manufactured using SMT (ROHS) environmental protection process and AA (Active Alignment) process, ensuring outstanding stability and consistency.

Features:

1. Ultra-Clear Image Quality & Smooth Capture: Combines 4K ultra-high definition resolution with 60fps high frame rate to deliver delicate and smooth dynamic images​
2. Excellent Night Vision & Rich Details: STARVIS 2 technology ensures superior low-light performance, making details in dark areas clearly visible​
3. Clear Imaging in Backlight & Distinct Layers: Clear HDR intelligently balances light and dark contrast, retaining rich details even under strong light or backlight conditions​
4. Plug-and-Play & Easy Deployment: Features a standard Type-C interface, supports driver-free installation, and is easily compatible with various device platforms

Technical Parameters:

Applications:

High-Definition Live Streaming: Meets the strict image quality requirements for live commerce and online teaching​
Industrial Inspection: Suitable for production line quality inspection and precision component measurement​
Intelligent Transportation: Used in in-vehicle recording, road monitoring, and other scenarios with complex lighting conditions​
Security Surveillance: Ensures 24/7 all-day high-definition video monitoring​
Machine Vision: Provides reliable visual navigation for drones and robots​
Scientific Research & Medical Care: Applicable to precision imaging needs such as microscopic imaging and endoscopy performance, making details in dark areas clearly visible​
Clear Imaging in Backlight & Distinct Layers: Clear HDR intelligently balances light and dark contrast, retaining rich details even under strong light or backlight conditions​
Plug-and-Play & Easy Deployment: Features a standard Type-C interface, supports driver-free installation, and is easily compatible with various device platforms

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
