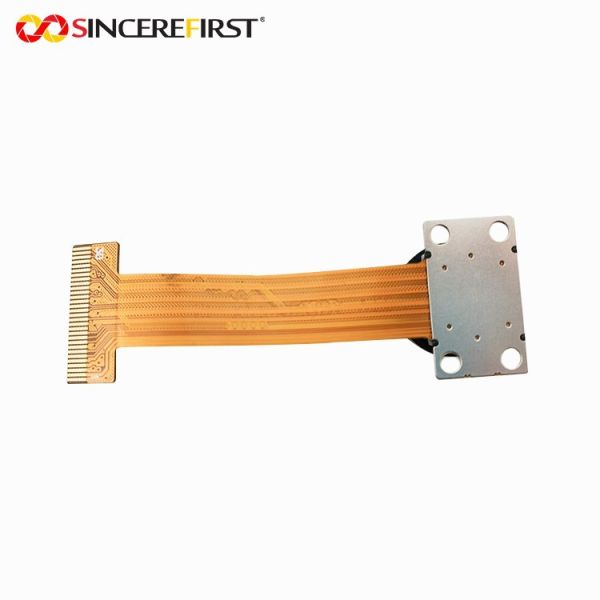

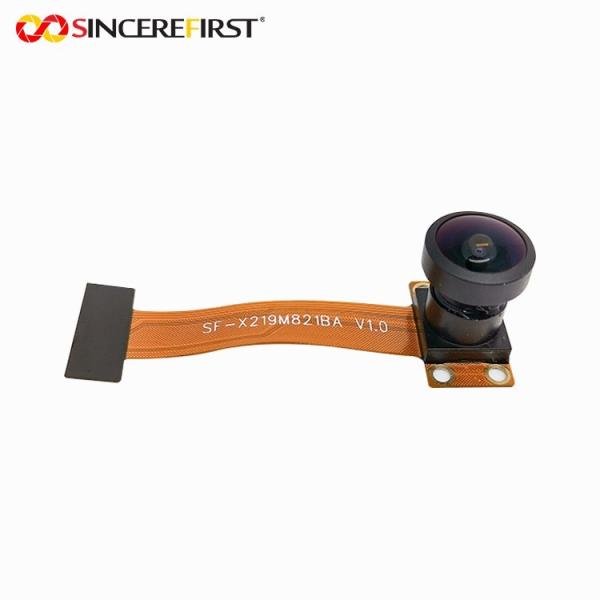

Wide Angle Arducam Sony Imx219 Camera Module 8 Megapixel
Wide Angle Arducam Sony Imx219 Camera Module 8 Megapixel
Wide Angle Arducam Sony Imx219 Camera Module 8 Megapixel
Wide Angle Arducam Sony Imx219 Camera Module 8 Megapixel
Wide Angle Arducam Sony Imx219 Camera Module 8 Megapixel
Wide Angle Arducam Sony Imx219 Camera Module 8 Megapixel
Wide Angle Arducam Sony Imx219 Camera Module 8 Megapixel
Wide Angle Arducam Sony Imx219 Camera Module 8 Megapixel
Specifications
Brand Name :
SINCERE FIRST
Model Number :
SF-X219M821BA
Certification :
CE, FCC, RoHS, REACH, ISO
Place of Origin :
Guangdong , China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability :
350000 pcs / month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Package, Carton Box
Sensor Type :
Sony IMX219 8MP Color Sensor
Active Pixels :
3280 (H) x 2464 (V)
Lens Type :
Fixed Focus
Data Output Interface :
CSI-2 MIPI 2-lane
Focus Range :
60cm to Infinity
Focal Length :
1.58mm
Distortion :
＜-25%
F Number :
2.0
Output Format :
RGB Output
Optical Format :
Type 1/4
Description

Wide Angle Arducam Sony IMX219 8 Megapixel Image Sensor Camera Module

Specificaitons

Sensor ‎Sony IMX219
Pixel 8MP
Pixel Size 1.12μm×1.12μm
Active Pixels 3280 (H) × 2464 (V)
CSI-2 Data Output 2-lane mode
Focus Type Manual
FOV(Field of View) 136°
IR Sensitivity Integral IR Fliter
Shutter Type Rolling Shutter
Frame Rates 30fps@8MP, 60fps@1080p, 180fps@720p

Description

The IMX219 8MP Camera Sensor is the IMX219 color sensor from Sony available as a drop-in part compatible with the Raspberry Pi v2 board or the ArduCam Nvidia board (B0187|NS). The sensor has a 1/4.0″ optical format, which combined with the pixel size of 1.12 µm x 1.12 µm, results in the 8 MP (3280 x 2464) image. This is a rolling shutter sensor, which captures an entire column (or row) simultaneously, and compiles the image by scanning across (or down).

Features

◆IMX219 color sensor
◆8-megapixel resolution (3,280 H x 2,464 V)
◆1.12 µm x 1.12 µm pixel size, 3.691 mm x 2.813 mm sensor size
◆Optional motorized stock lens
◆1/4.0-inch optical format
◆30 frames per second (fps) at full resolution;

Applicaitons

Robots, Drones
Action Cameras
3D scanning applications
Field animal camera
Recording slow motion
Machine vision, etc.

Wide Angle Arducam Sony Imx219 Camera Module 8 MegapixelWide Angle Arducam Sony Imx219 Camera Module 8 Megapixel
