Specifications
Brand Name :
CLW
Model Number :
CLW9603
Certification :
CCC ISO ASME
Place of Origin :
Suizhou,China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300units/month
Delivery Time :
Within 30days after received advance payments
Packaging Details :
Naked package
Material :
Q345R/Q370R/ASME Carbon Steel
Condition :
New
Design :
1.71 Mpa
Hydraulic Test Pressure :
2.21MPa 22.1bar
Loading Material :
Propane/Liquefied Petroleum Gas/LPG
Volume :
10tons,10mt,20cbm,20m3,20000liters
Pump Brand :
Corken, Blackmer, Chinese Brand
Corrosion Allowance :
1 mm
Life Time :
20 Years
Color :
Customized LOGO
Description

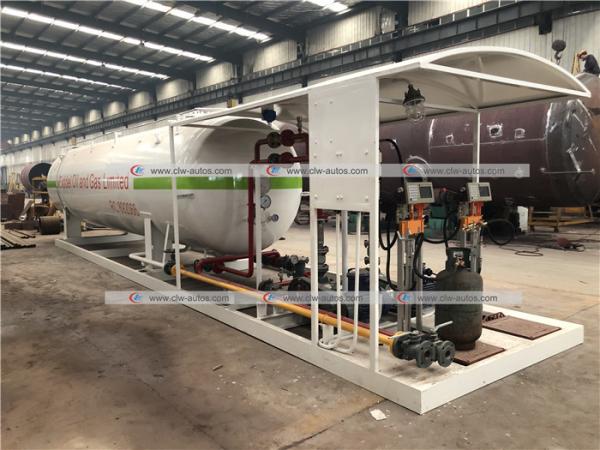

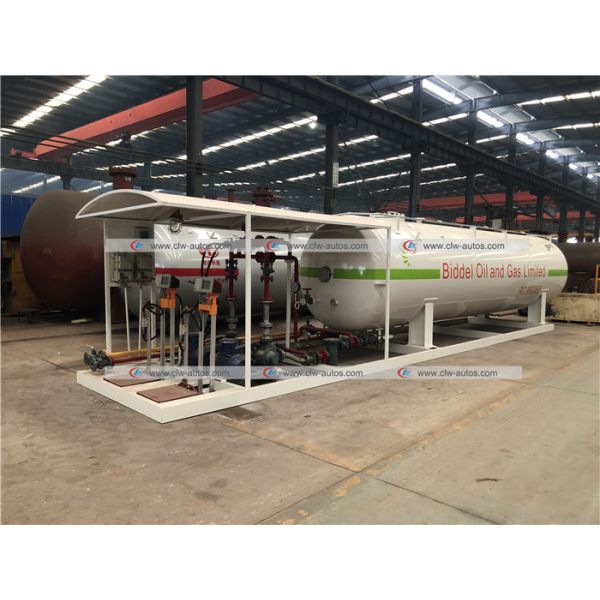

10tons LPG Skid Station Propane Cooking Gas Cylinder Refilling Skid Plant

Product Description

1. It is used for refilling in home use cylinder in different size.

2. It with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump

3. Digital Filling Scale or automated filling dispenser(single nozzle or double nozzle) with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling

4. Pump is optional for 5mt lpg skid station: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.

5. Motor: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW

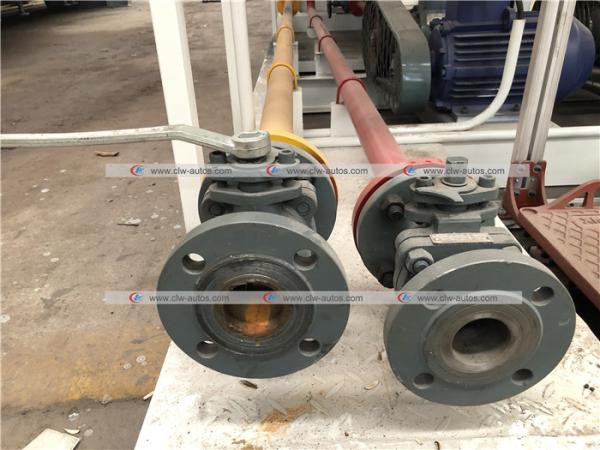

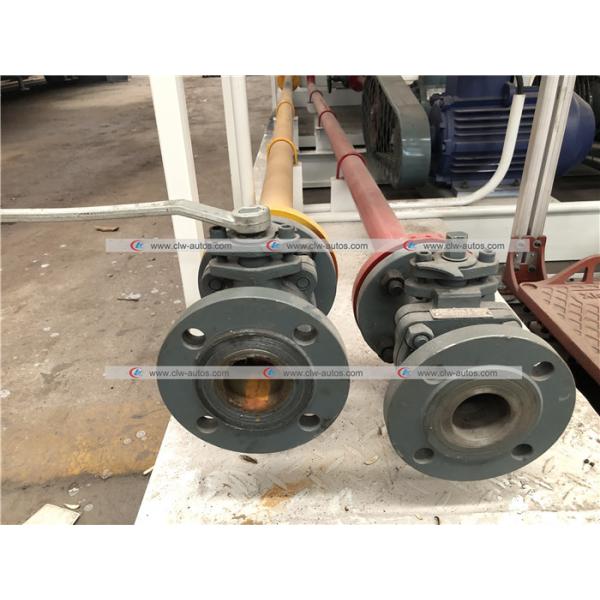

6. Pipeline : 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.

7. Explosive Proof Central Control Panel for whole 5mt lpg skid station system

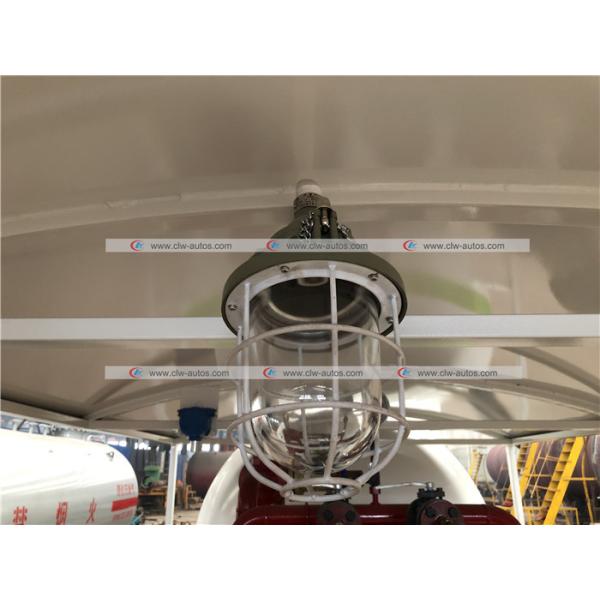

8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system

Technical Specifications

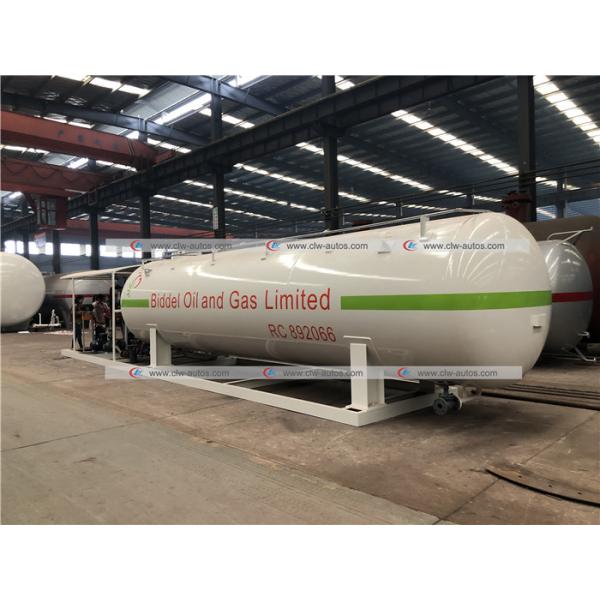

Specification of 10tons 20000L LPG Cylinder Filling Plant
Volume of Tank 20CBM(20,000liters) 10ton
Filling weight(Kg) 10000
Thickness of Shell (mm) 10 mm
Thickness of Endplate (mm) 12 mm
Tank Diameter (mm) 1800 mm
Tank Dimensions (mm) (length x width x height) 8174X1840X2410mm
Material of Tank and Main Pressure Parts Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 1.71 MPa
Corrosion Allowance 1 mm
Medium Density 500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item Specification
Specification of the Motor
Model Chinese famous brand
Revolving speed 1470 r/min
Power 5.5 kw
Voltage 380 V
Protection grade Anti explosive
Specification of the hydrocarbon Pump
Model YQB15-5
Medium Liquid petroleum gas
Speed 15 m3/h
Input and Output Diameter 50 mm
Working pressure 2.0 Mpa
Working temperature -40ºC- 50ºC
Material carbon steel

Detailed Photos

10tons LPG Skid Station Propane Cooking Gas Cylinder Refilling Skid Plant10tons LPG Skid Station Propane Cooking Gas Cylinder Refilling Skid Plant10tons LPG Skid Station Propane Cooking Gas Cylinder Refilling Skid Plant10tons LPG Skid Station Propane Cooking Gas Cylinder Refilling Skid Plant10tons LPG Skid Station Propane Cooking Gas Cylinder Refilling Skid Plant
