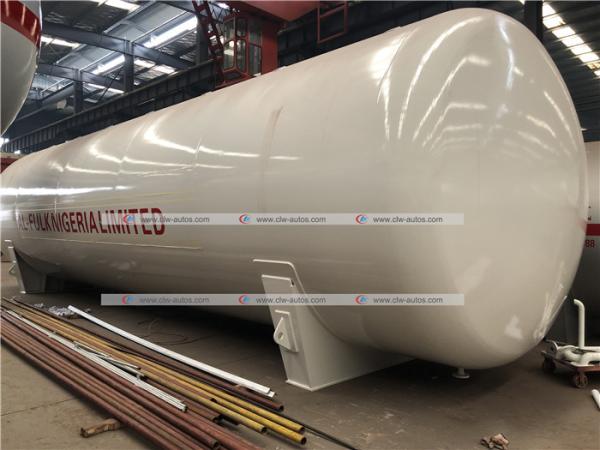

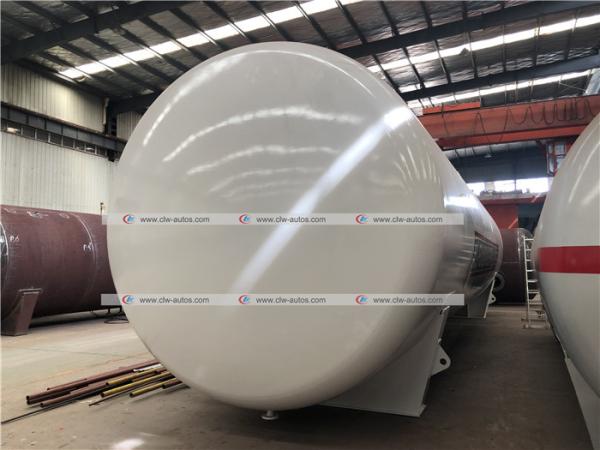

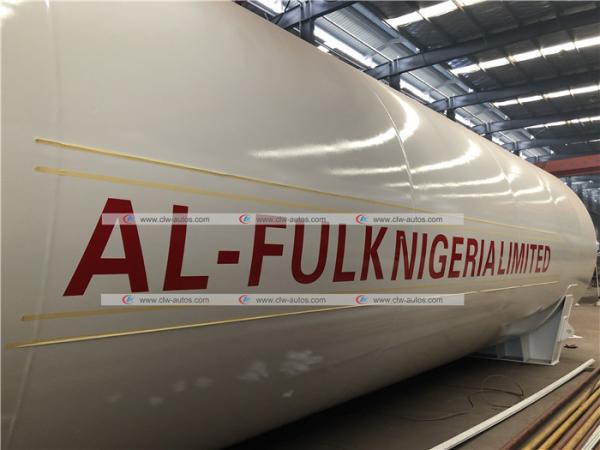

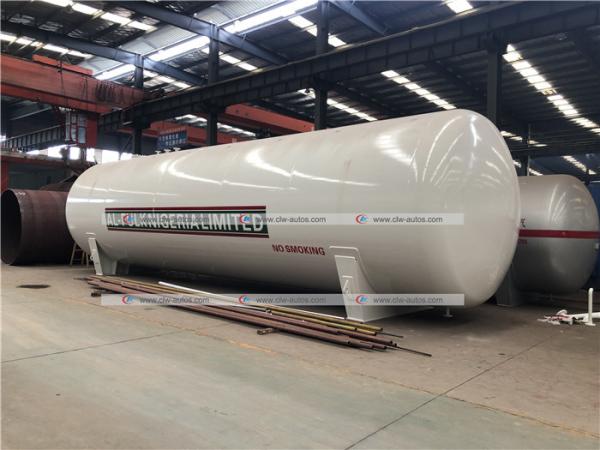

Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
Specifications
Brand Name :
CLW
Model Number :
ASME,CCC,SGS,BV
Certification :
CLW9522
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
20~30 days after receiving deposit
Packaging Details :
Naked Package,Bulk Ship,Roll-Roll
Size Option :
10mt,15mt,20mt,30mt,40mt,50mt,60mt,
Material :
Carbon Steel Q345R
Filling Medium :
Propane,butane
Tank Diameter :
DN2700mm
Design Pressure: :
1.71Mpa
Hydraulic Test Pressure :
2.21MPa 22.1bar
Level Gauge :
Rotogage Or Megnatic Type
Tank Valves :
Cut-off Valve, Needle Valve, Safety Valve, Return Valve etc..
LOGO :
As per request
Warranty :
one year
Diagram :
yes
Shell Thickness :
14 mm
End Thickness :
16 mm
Corrosion Allowance :
1 mm
Usage :
LPG Gas Storage, Station Tank
Life Time :
20 years
Description

Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria​

Product Description

1. Storage medium of lpg storage tank: LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg storage tank: 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg storage tank: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

Specification of lpg storage tank

Parameter of 60mt 120cbm lpg storage tank
ITEM PARAMETER ITEM PARAMETER
Volume 120cbm Thickness of Shell 18mm
Tank Material Q345R Thickness of End plate 20mm
Overall Size 13820*3436*4026mm Tank Net Weight 24960kg
Tank Diameter 3400mm Loading Capacity 47880kg
Design Pressure 1.77Mpa Gas Density 510~590kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20ºC~50ºC Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Life time 15 years
Accessories
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-80 Stop Valve DN80 2 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-80 Safety Valve DN80 2 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC

Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria

Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria

Horizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for NigeriaHorizontal Large LPG Storage Tank 120cbm 60tons 120000liters Gas Storage Tank for Nigeria
