Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
Specifications
Brand Name :
CLW
Model Number :
CLW5780cw
Certification :
CCC,ISO
Place of Origin :
Suizhou, China
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Unit Per Month
Delivery Time :
20-30 working Days
Packaging Details :
Naked packing,Ro-ro,Bulk Ship
Material :
High Strength Steel
Mixer Drum :
5cbm, 5m3
Hydraulic Pump :
Sunny,Rexro,Eaton, Sauer or Chinese Brand
Hydraulic Motor :
Sunny,PMP,Eaton, Sauer or Chinese Brand
Reducer :
Zf, Bonfiglioli or Chinese Brand
Warranty :
1 year
LOGO :
As customer's request
Working video :
yes
Water Tank Volume :
200Liters
Description

Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria

Product Description

1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman, etc.
2. High Tension Steel Q345 Tank Material in 4mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 200Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.

Condition New condition/Left hand drive/4x2
Chassis Brand FORLAND
Curb weight(kg) 5980 kg
Wheelbase(mm) 3400 mm
Dimensions(mm) 6500*2350*3450 mm
Overhang (front/rear) (mm) 1230/1830 mm
Approach/Departure angle(°) 24/20 °
Axle Load(kg) 3500/7000 kg
Max. driving speed(km/h) 80 km/h
Clutch Reinforced diaphragm clutch
Brakes

Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Number 6pcs with one spare tire
Specifications 8.25-16 nylon tire
Batter 2x12V
Starter motor capacity 24V
Transmission 5 Forwards and 1 Reverse with PTO
Cabin It can accommodate three people, With Air conditioner
Engine Brand YUCHAI
Model YCD4F22-110
Displacement(ml) 2799 ml
Power(kw)/Horsepower/(HP) 81 kw/110 HP
Emission standard Euro 2
Upper & Equipment
Mixer drum Mixing. Capacity 5.0 CBM
Material Manganese Steel
Specification Feeding Speed (m3/min) ≥2.8
Discharging Speed (m3/min) ≥1.2
Discharging Residual rate(%) ≤0.5
Mixing Tank Rotating Speed (RPM) 0-15
Discharging range 180° full range
Driving system Hydraulic Pump US SUNNY brand
Hydraulic Motor US SUNNY brand
Reducer China local brand
Radiator China local brand

Water

supply

system

 Tank volume(Liters) 200 Liters
Water supply type Pneumatic water supply
Control system Control Way Connecting Rod Controlling
Structure Features

1. Mixer Tank and Vane use special anti-resistant material.

2. Discharging slot and feeding plate are the same anti-resistant material as the tank.

3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable.

4. With US brand driving system. Discharging fast, no residue.
Remarks

1. Color is optional

2. LOGO painting as per customer request

Truck Diagram

Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria

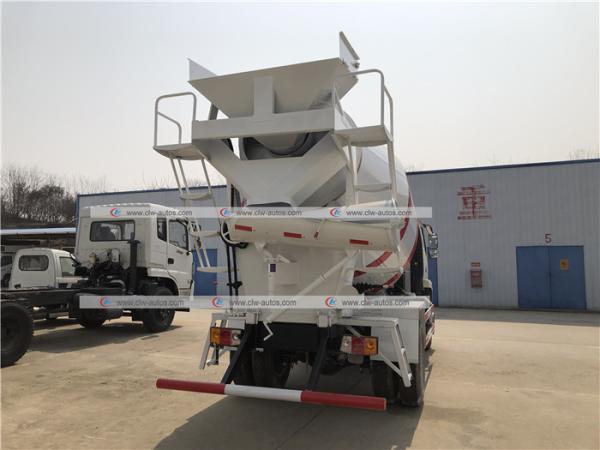

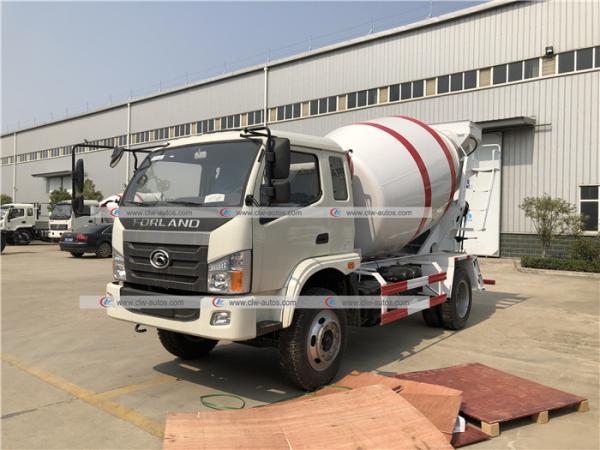

Reference photos

Forland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria

Forland 5CBM Concrete Mixer Truck Construction Equipment for NigeriaForland 5CBM Concrete Mixer Truck Construction Equipment for Nigeria
