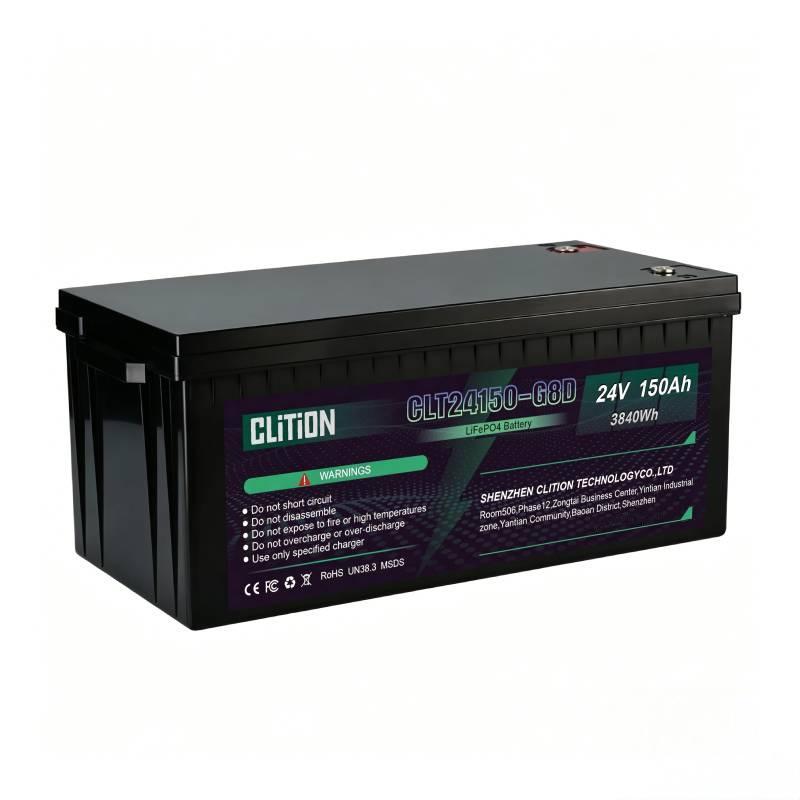

24V 150Ah Deep Cycle Lithium Iron Battery Pack LiFePo4 Solar Storage
24V 150Ah Deep Cycle Lithium Iron Battery Pack LiFePo4 Solar Storage
24V 150Ah Deep Cycle Lithium Iron Battery Pack LiFePo4 Solar Storage
24V 150Ah Deep Cycle Lithium Iron Battery Pack LiFePo4 Solar Storage
24V 150Ah Deep Cycle Lithium Iron Battery Pack LiFePo4 Solar Storage
24V 150Ah Deep Cycle Lithium Iron Battery Pack LiFePo4 Solar Storage
Specifications
Nominal capacity :
150Ah
Charge Method :
CC/CV
Parallel connection :
4
Model Number :
CLT24150-G8D
Cycle life :
6000 cycles@80%DOD
Weight :
28KG
Series connection :
2
Supply Ability :
1000pcs/month
Place of Origin :
China
Battery type :
LiFePo4
Delivery Time :
15-20 workdays
Packaging Details :
Carton
Energy :
3840Wh
Certification :
MSDS, UN38.3
Price :
Get A Quote
Nominal voltage :
25.6V
MOQ :
1
Brand Name :
CLITION
Payment Terms :
T/T
Size :
520*269*240mm
Description
24V 150Ah Deep Cycle Lithium Iron Battery Pack LiFePo4 Solar Storage
Product Overview

The 24V 150Ah LiFePO4 Battery Pack is a high-capacity deep-cycle lithium battery designed to deliver reliable, efficient, and long-lasting power for energy storage and off-grid applications. Built with high-quality Lithium Iron Phosphate (LiFePO4) cells and an integrated Battery Management System (BMS), the battery pack provides protection against overcharge, over-discharge, overcurrent, short circuit, and abnormal temperature conditions.

Its stable chemistry, high cycle life, and low maintenance requirements make it suitable for applications requiring dependable deep-cycle power. This battery provides a practical lithium solution for replacing traditional lead-acid batteries. The maintenance-free design eliminates watering, gassing, and terminal corrosion, which dramatically reduces total cost of ownership over the battery's service life.

Key Features
  • LiFePO4 Chemistry: Excellent thermal stability, safety, and long service life
  • Deep-Cycle Performance: Designed for frequent charge and discharge cycles
  • Integrated BMS: Protects against overcharge, over-discharge, overcurrent, short circuit, and temperature abnormalities
  • Long Cycle Life: Significantly longer service life than conventional lead-acid batteries
  • High Energy Density: Substantial energy delivery with reduced weight and installation space
  • Low Self-Discharge: Suitable for reliable standby and backup power applications
  • Flexible Installation: Compatible with standalone, parallel, or customized energy storage systems
Technical Specifications
Nominal voltage 25.6V Nominal capacity 150Ah
Nominal energy 3840Wh Battery type LiFePO4
Cycle life 6000 cycles@80%DOD Self Discharge Rate <3%/Month
Max. discharge current 100A Max. charge current 150A
Charge cut-off voltage 29.2V Discharge cut-off voltage 20.0V
Terminal type M8 Housing material ABS
Dimensions (L*W*H) 520*269*240mm Weight 28KG
Charge Temperature Range 0℃ to 50℃ Discharge Temperature Range -20℃ to 60℃
Applications
  • Golf carts and neighborhood electric vehicles
  • Backup and UPS Power
  • Portable and Mobile Power Systems
  • Off-grid solar energy storage system and RV auxiliary power
  • Telecom backup and general industrial equipment
Installation Precautions

Proper installation is essential to ensure the safety, performance, and service life of a LiFePO4 Deep Cycle Lithium Battery Pack. Please observe the following precautions during installation and commissioning:

  1. Check the Battery Before Installation
    • Inspect the battery pack, terminals, connectors, cables, and enclosure for visible damage
    • Confirm that the battery voltage, capacity, polarity, and model match application requirements
    • Do not install or use a battery that is swollen, cracked, leaking, or otherwise damaged
    • Check the battery's BMS and communication interface before connecting to the system
  2. Correct Polarity
    • Carefully identify the positive (+) and negative (-) terminals before connection
    • Ensure battery polarity matches the inverter, charger, controller, or load
    • Reverse polarity can cause serious damage to the battery, BMS, or connected equipment
    • Never connect positive and negative terminals directly together
  3. Installation Location
    • Install in a dry, clean, and well-ventilated location
    • Keep away from direct sunlight, water, excessive humidity, and heat sources
    • Avoid locations exposed to corrosive gases, conductive dust, or significant mechanical vibration
    • Allow sufficient space around the battery for heat dissipation, inspection, and maintenance
Frequently Asked Questions
Q1: Can this battery directly replace my 24V lead-acid bank?
A: Yes. The pack matches the 24V system voltage and is designed as a drop-in upgrade. It delivers more usable capacity, faster charging, and far longer cycle life than lead-acid, and the included BMS handles protection automatically.
Q2: How long does a full charge take?
A: With a suitable LiFePO4 charger at the recommended charge current, a full charge typically takes 3 to 5 hours depending on the charger output and the remaining state of charge.
Q3: Can I connect multiple packs in parallel?
A: Yes. Up to 4 packs can be connected in parallel to expand total capacity, provided the same model and charge state are used. Series connection is also supported for higher system voltages; please confirm with our engineers before configuring.
Q4: What are the advantages of LiFePO4 batteries over lead-acid batteries?
A: LiFePO4 batteries generally offer longer cycle life, higher energy efficiency, lower maintenance requirements, lower self-discharge, and lighter weight than comparable lead-acid batteries. They can also provide more consistent voltage during discharge.
Q5: What charger should I use?
A: Use a dedicated LiFePO4 charger with charging parameters matching the battery specifications. Lead-acid chargers may not apply the correct charge profile and could shorten battery life.
