Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
Specifications
Brand Name :
Clion
Model Number :
CHB38H
Certification :
CE/CCC
Place of Origin :
China
MOQ :
500pcs
Price :
get latest price
Payment Terms :
T/T
Supply Ability :
2k pcs 7 days
Delivery Time :
7-14 days
Item NO. :
CHB38H
Shaft Diameter :
φ8mm
Installation Form :
Axle Sleeve Type
Working Power :
DC5-24V
Specification :
Ф 38mm
Description

CHB-38H series Rotary Encoder

Features

1. Small size,Diverse varieties
2. Comprehensive functions
3. High-frequency response and resolution
4. Low power consumption
5. Stable and reliable performance

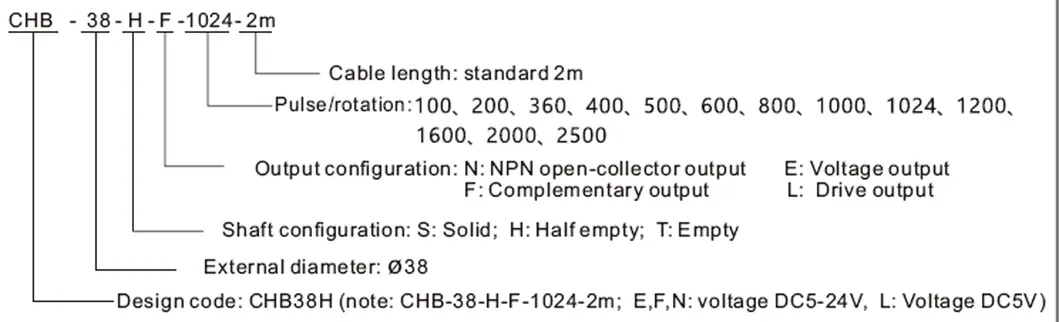

Ordering InformtaionClion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields



Specification
CHB38H series
Model CHB38H-N/E/F/L-(100,200,360,400,600,800,1000,1024,2000,2500)
Main size External diameter:φ38mm; Shaft inner diameter:φ8mm
Working power DC5V-24V
Output mode N: Open-collector output (NPN)
E: Voltage output
F: Complementary output
L: Drive output
Pulse output 100,200,360,400,600,800,1000,1024,2000,2500
Output phase A B Z or A B Z -A -B -Z
Termination mode G:Side entry cable
Application Stone machinery, robots and other automation fields

Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation FieldsClion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation FieldsClion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
