Specifications
Brand Name :
NNC
Model Number :
ESL4NR
Certification :
CE/TUV/UL/CQC
Place of Origin :
China
MOQ :
500pcs
Price :
get latest price
Payment Terms :
T/T
Supply Ability :
2k pcs 7 days
Delivery Time :
7-14 days
Operating Speed :
1mm/s-0.5m/s
Operating Frequency :
max 30 operations/min
Contact Resistance :
＜25mΩ
Insulation Resistance :
＞100MΩ（＜500VDC）
Electrical Endurance :
500,000 operations min(3A 125VAC,resistive load);300,000 operations min(10A 250VAC,resistive load)
weight :
approx.92g
Operating Ambient :
-40℃~70℃; ＜95%RH
Protection level :
IP67
Impulse withstand strength :
between terminals of different polarity:4KV
Description

ESL4NR Series Limit Switch

Features

1.Pull-reset safety limit switch series
2.The built-in switch has a direct opening structure that force to disconnect the NC contact when contact welding occurs.

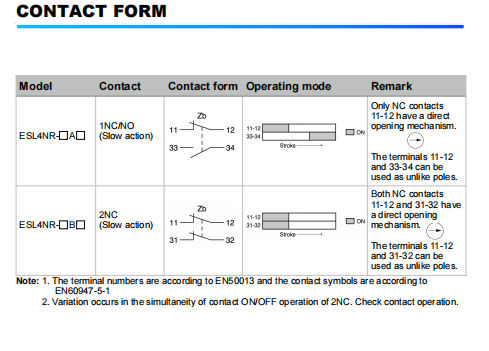

3.The built-in switch has the contact form includes with 1NC/1NO,2NC,2NC/1NO,3NC
4.Conform to the EN60947-5-1 standard
