Specifications
Brand Name :
KOMEG
Model Number :
KMT-125R（Air-Cooled）
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Temperature range :
-20℃ ～ +70℃
Temperature fluctuation :
±0.5℃
Workspace volume :
W500 mm*H500 mm*D500 mm
Door :
Single door, left open
Observation window :
explosion-protected Observation window
Explosion-protected chains :
Two explosion-protected chains
Description

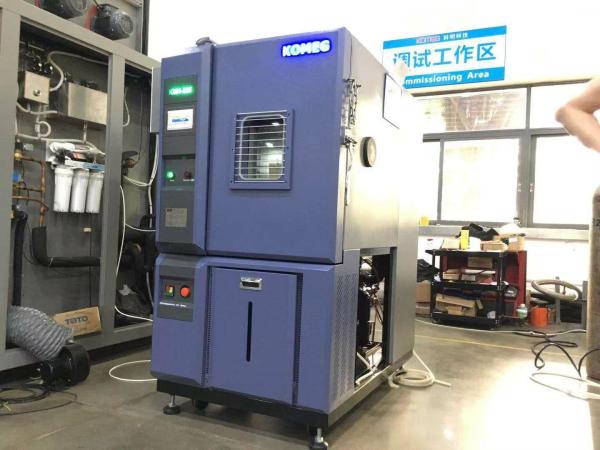

Air - Cooled 125LSingle door high and low temperature test chamber with Explosion-proof device

Application

The chamber structure stainless steel plate is processed by CNC machining,the appearance is beautiful

and dignified,using non-reaction mechanical handle, safe and easy operation;internal wall using matte

stainless steel SUS#304,external wall apply A3 steel panel with spraying coat, improving the outside

neatness;suitable for electrical, electronics, machinery and other products, parts, materials, etc.under

high or low temperature conditions on the products,parts,materials quality and reliability testing.

Features

Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical

appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research

institution, inspection and quarantine bureau, university etc..

Specifications

2.1 Test space About 125L
2.2 Interior size W500 mm*H500 mm*D500 mm
2.3 Exterior size

W700 mm*H1535 mm*D1525 mm(Excluding the protruding part of the machine!)

Tips: For external dimensions, please confirm according to the final design!
2.4 Floor area About 1.1m2；(confirm after place the order)

3. Main technical parameters

3.1 Test Conditions

Equipment cooling method: fresh air type

Measured at room temperature +25 ° C under no load, the temperature performance test is measured according to the relevant regulations IEC 60068 -3; the sensor is placed at the air outlet of the unit
3.2 Temperature range -20℃ ～ +70℃
3.3 Temperature fluctuation ±0.5℃
3.4 Temperature uniformity ≦2.0℃
3.5 Temperature deviation ≦±2.0℃
3.6 Temperature change rate

Heat up rate:

-20℃～+70℃, average 3℃/min；(no laod)

Cooling rate:

+20℃～-20℃, average 1℃/min；(no laod)
3.7 Load No
3.8 Noise ≦75 (dB) (The noise detection device is measured 1m away from the door of the chamber)
3.9 Meet the test standard

GB-2423.1-2008(IEC68-2-1)Test A: Low temperature test method.

GB-2423.2-2008(IEC68-2-2)Test B: High temperature test method.

GJB360.8-2009(MIL-STD.202F)High temperature life test.

GJBl50.3-2009(MIL-STD-810D)High temperature test method.

GJBl50.4-2009(MIL-STD-810D)Low temperature test method.

4. Chamber construction

4.1 Construction type

Integral box structure

The test box consists of three parts: the main insulation box, the air conditioning system, and the electrical control cabinet.
4.2 Thermal insulation structure Outer box color steel plate - intermediate insulation layer is temperature resistant foam insulation material - inner box SUS304 stainless steel
4.3 Outer box material Outer box color steel plate
4.4 Wall material SUS304matte stainless steel plate,Thickness=1.0 mm；Inner box full welding
4.5 Insulation Rigid polyurethane foam insulation layer,Thickness=100mm, flame retardant grade B2.

4.6 Door

Single door, left open,；Explosion-proof handle

Two silicone rubber sealing strips and anti-condensation electric heating device at he door frames to prevent condensation at low temperatures；
4.7 Observation window

Observation window on the door(size:W210*H270MM)

Multi-layer vacuum glass window with electronic film for heat and sweat defogging protection.

Glass enclosed stainless steel protective net, to prevent the explosion when flying glass (can not guarantee absolute safety).
4.8 Explosion-protected chains

Two explosion-protected chains are added on both sides of the box door. The chain is longer. When the box is opened, it can be opened a bit, letting Quick release of internal air pressure, but no pop.

Environmental test chamber Standard

GJB150.3 high-temperature testing

GJB150.4 low-temperature testing

GJB150.9 humid testing

GB11158 Technical conditions for high-temperature testing box

GB10589-89 Technical conditions for low-temperature testing box

GB10592-89 Technical conditions for high and low temperature testing box

B/T10586-89 technical conditions for humidity testing chamber

GB/T2423.1-2001 Low-temperature testing methods

GB/T2423.2-2001 High-temperature testing methods

B/T2423.3-93 Testing Method for humidity Test Chamber

GB/T2423.4-93 Alternating hot and humid testing method

GB/T2423.22-2001temperature testing method

IEC60068-2-1.1990 low-temperature testing method

IEC60068-2-2.1974 high-temperature testing method

FAQ:

Q1 : Can you customize the product?

A: Yes, we can customize any products according to requirements.

Q2 : How to choose the most suitable products?

A: Our professional team will give you the best suggestion,just be patiently to tell us the information about

the parameters your required.

Q3 : Can you arrange installations and commissioning in our lab?

A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link

power in your lab, then can start to operate;

Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;

Thirdly, some of customized chambers we should to install and teach your team to operate.

Product details

Air Cooling 125L High and Low Temperature Climatic Test Chamber With Explosion - Proof Device

Air Cooling 125L High and Low Temperature Climatic Test Chamber With Explosion - Proof Device

Air Cooling 125L High and Low Temperature Climatic Test Chamber With Explosion - Proof Device

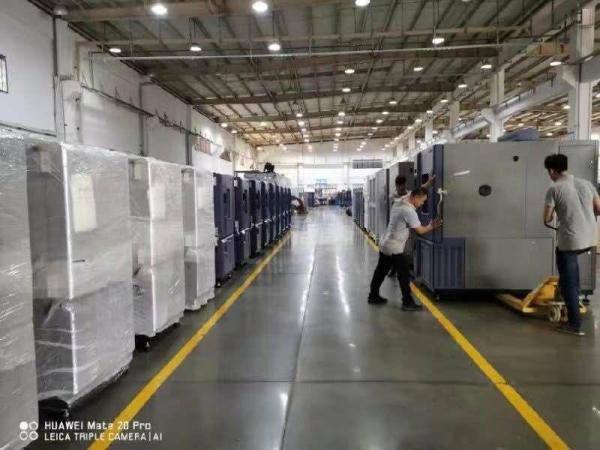

Packing details

We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched

first, then use strong plywood case for easyload and transport, and to keep the chambers from potential

crash or impact.

Air Cooling 125L High and Low Temperature Climatic Test Chamber With Explosion - Proof Device

After-sale Service:


If you face any problems in future during testing process we promise we will give you a reply within 48

hours and solution provide within 3 working days. We can offer operation video and English operation

muanual. We can provide video-conference. If customers require on-site service, the transport and travel

expense shall be borne by customer.
