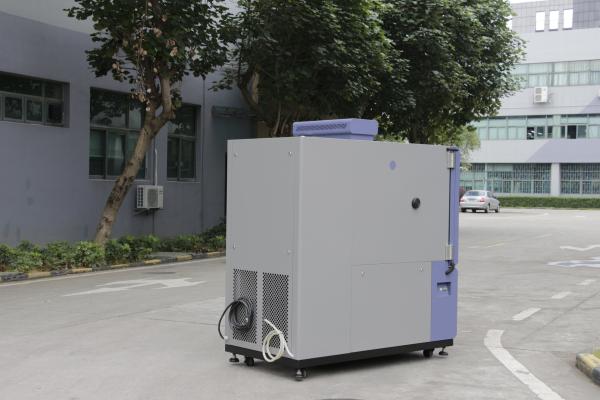

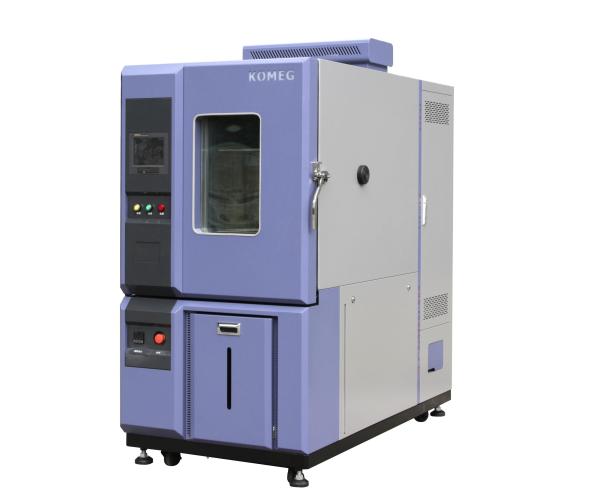

800L Single Door Temperature And Humidity Testing Chamber With Lighting Device
800L Single Door Temperature And Humidity Testing Chamber With Lighting Device
800L Single Door Temperature And Humidity Testing Chamber With Lighting Device
800L Single Door Temperature And Humidity Testing Chamber With Lighting Device
800L Single Door Temperature And Humidity Testing Chamber With Lighting Device
800L Single Door Temperature And Humidity Testing Chamber With Lighting Device
800L Single Door Temperature And Humidity Testing Chamber With Lighting Device
800L Single Door Temperature And Humidity Testing Chamber With Lighting Device
Specifications
Brand Name :
KOMEG
Model Number :
KMH-800R
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Interior material :
Stainless steel plate(SUS304)
Exterior Material :
Baked Painting Steel Plate Or SUS304
Controller :
LCD Touch panel
Inside dimension :
W 1000 × H 1000 × D 800 mm
Temperature range :
+25℃60%RH；+30℃65%RH；+40℃75%RH
Lighting device :
1pc LED lighting device,Installed in the window.
Description

800L Single door temperature and humidity testing chamber with Lighting device​

Description

Able to accurately simulate a wide range of complicated natural environments, and is suitable for

reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental

testing equipment and test methods for the basic parameters of electric and electronic products under

the condition of humidity, low temperature, high temperature, and constant heat.

Application

Temperature and humidity test chamber is also called temperature and humidity


testing machine, constant temperature and humidity experimental chamber, programmable wet heat


alternating test chamber, or constant temperature machine. The Temperature and humidity test chamber


is used to inspect equipments quality and test performance of materials in various environments,


and all kinds of materials properties of heat resistance, cold resistance, dry resistance and


moisture resistance, which is fit for Electronics, electrical appliances, mobile phones, communications,


meters, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and


other products quality inspection.

Specifications

1,Chamber
1.1Temperature range +25℃60%RH；+30℃65%RH；+40℃75%RH(Three fixed point temperature and humidity)
1.2Temp Deviation ≦±2.0℃
1.3Temp fluctuation ±0.5℃
1.4Temp Uniformity ≦2.0℃
1.5Humidity Deviation ±3.0％RH
1.6Humidity Uniformity ±3.0％RH(no load)
1.7Humidity flutuation ±2.0％RH
temperature and humidity performance measurement comply with related regulation of IEC60068-3-5 standard; Sensors placed in the air outlet.
Ⅴ,Chamber Structure

Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.
1.Chamber size

Inside dimension: W 1000 × H 1000 × D 800 mm

Outer dimension: W 1200 × H 2035 × D 1815 mm (Excluding stand highlights)
2.Insulation box

wall material: high-quality carbon steel with static color spray

inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
3.Door Single door, left open,Heating wire was installed at the door frames to prevent condensation at low temperatures.
4.Observation window With 1 set 460 × 560mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively
5.Lighting device 1pc LED lighting device,Installed in the window.
6.Heating

Quality nickel-chromium alloy wire electric heaters,

Non-contact control mode (SRR).
7.Humidifier

Basin heated humidification

Stainless steel sheathed heater

Heater control: non-contact period, such as pulse width modulation, SSR (solid state relay)

Water level control devices, anti-dry unit heater
8.Condensate water outlet Equipped with studio condensate and unit condensate drain holes.
9.Cable port Φ50mm*2 located on both sides(each*1) with rubber stopper and plastic cover
10.Sample holder Stainless steel sample rack 6 layers, height adjustable, carrying weight 30kg / layer.
11.Mobile Casters Mobile Casters *4 with foot cups
12.Electric control box Total power circuit breaker, over-temperature protection.
13.Water supply system Water pump automatic supply
14.Access control security system Access control security system * 1, can be connected to PC through software
15.Mobile alarm system Mobile alarm system*1,used to monitor critical conditions in the laboratory.

Environmental test chamber Standard

GJB150.3 high-temperature testing

GJB150.4 low-temperature testing

GJB150.9 humid testing

GB11158 Technical conditions for high-temperature testing box

GB10589-89 Technical conditions for low-temperature testing box

GB10592-89 Technical conditions for high and low temperature testing box

B/T10586-89 technical conditions for humidity testing chamber

GB/T2423.1-2001 Low-temperature testing methods

GB/T2423.2-2001 High-temperature testing methods

B/T2423.3-93 Testing Method for humidity Test Chamber

GB/T2423.4-93 Alternating hot and humid testing method

GB/T2423.22-2001temperature testing method

IEC60068-2-1.1990 low-temperature testing method

IEC60068-2-2.1974 high-temperature testing method

FAQ:

Q1 : Can you customize the product?

A: Yes, we can customize any products according to requirements.

Q2 : How to choose the most suitable products?

A: Our professional team will give you the best suggestion,just be patiently to tell us the information about

the parameters your required.

Q3 : Can you arrange installations and commissioning in our lab?

A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link

power in your lab, then can start to operate;

Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;

Thirdly, some of customized chambers we should to install and teach your team to operate.

Product details

800L Single Door Temperature And Humidity Testing Chamber With Lighting Device

Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

800L Single Door Temperature And Humidity Testing Chamber With Lighting Device
