Constant Temperature And Humidity Walk-in Chamber For Electronic Instruments 380V 50Hz
Constant Temperature And Humidity Walk-in Chamber For Electronic Instruments 380V 50Hz
Constant Temperature And Humidity Walk-in Chamber For Electronic Instruments 380V 50Hz
Constant Temperature And Humidity Walk-in Chamber For Electronic Instruments 380V 50Hz
Specifications
Brand Name :
KOMEG
Model Number :
KMHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500 Set/Sets per Year thermal shock test machine
Delivery Time :
Shipped in 45 days upon your deposit
Packaging Details :
Each set protected with resin fiber and PP film, then put into strong plywood case with operation mannual inside.
Test. Chamber :
-60 °C~ +120°C
Controller :
LCD Touch Screen
Power Supply :
AC 380V/50Hz 3 Phase 4 Wires+Ground Wires
Refrigeration System :
Water Cooled
Description

380V 50Hz Walk - In Constant Temperature And Humidity Chamber With LCD Touch Screen

→Application

KOMEG Walk-in Constant Temperature and Humidity Chamber is suitable for aerospace products,electronic instruments,materials,electrical and electronic products,alll kinds of electronic components to test the various performance cables in the high and low temperature,or in hot and humidity environment.

→specification

Walk-in Constant Temperature and Humidity Chamber
Model KMHW
4 6 8 13 17 21
Interior size W(mm) 210 300 390 300 390 480
H(mm) 210 210 210 210 210 210
D(mm) 205 205 205 430 430 430
Exterior size W(mm) 325 416 505 505 505 595
H(mm) 235 235 235 235 235 235
D(mm) 225 225 225 225 450 450
Temp. range -60ºC~+120ºC
Temperature Deviation ≤±2.0ºC
Temperature Fluctuation ±0.5ºC
Humidity range 20~95%R.H
Humidity uniformity ±5.0%R.H
System
Balanced & Humidity Control System
Lighting device One light of 11W/AC220V,located on observation window
Standard accessory Observation Window*1,cable port(port^50mm)*1,chamber lamp*1,status indicator light*1
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fiber wool
Refrigeration system

Water Cooled (HFC-507 and HFC-23 ) Semi-hermetic compressor,

single stage or cascade refrigeration system,CFC free referigerant
Controller

Panel

Operation model

Memory capacity

Accuracy

Input

Comm.port
Ambient Temp. +5ºC~+35ºC
Power AC 380±10%50Hz ,3 phase 4 wires +Ground Wires

→Structure Features

Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing

Inner wall material:Stainless Steel Plate SUS304

Body insulation material:Rigid polyurethane Foam + glass fiber

Door insulation material:Rigid Polyurethane Foam + Glass fiber

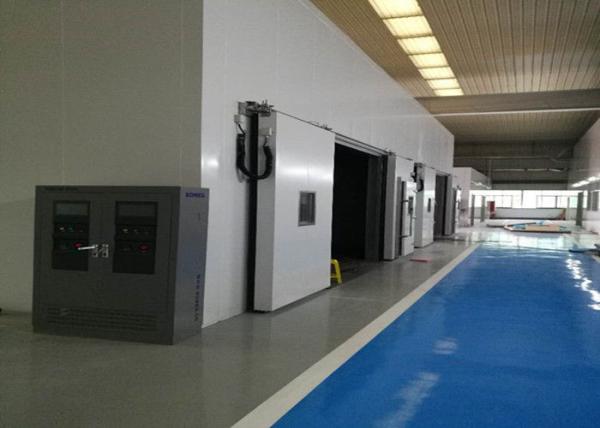

→product picture

Constant Temperature And Humidity Walk-in Chamber For Electronic Instruments 380V 50Hz

Constant Temperature And Humidity Walk-in Chamber For Electronic Instruments 380V 50Hz

→COMPANY INFO

Why Choose KOMEG?

Over 28 Years' Experience
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.

Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)

→PACKING

Packing
Size
 123 (L) * 456 (W) * 789 (D)
Weight
 1.2 T
Packing Details
 The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special requirments.
