3000L High Automotive Materials And Low Temperature Testing Chamber With LCD Touch Panel
3000L High Automotive Materials And Low Temperature Testing Chamber With LCD Touch Panel
3000L High Automotive Materials And Low Temperature Testing Chamber With LCD Touch Panel
3000L High Automotive Materials And Low Temperature Testing Chamber With LCD Touch Panel
Specifications
Brand Name :
KOMEG
Model Number :
KMT-3000S
Certification :
CE, ISO9001
Place of Origin :
China Dongguang
MOQ :
One set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Temp Range :
-50℃～ +80℃
Humidity Deviation :
≦±2.0℃
Lighting :
LED Lights
Color :
Self determination
Description

3000L Automotive materials High And Low Temperature Testing Chamber With LCD Touch Panel

Explore Temperature Chambers by Type:

Environmental testing of automobiles requires additional consideration of the facility where the chamber

will be installed, and its planned use. Test methods for vehicles can include additional conditions besides

temperature and humidity in an attempt to simulate real-world conditions.

Parameter Specifications:

Model KMT-3000S
3000L chamber volume
Temp. range -50°C ～+80°C
Heat up time -50°C ～+80°C within 65
Pull down time +80°C ~-50℃ within 130
Temperature fluctuation ±2.0°C
Interior Dimension(mm) W 150x H100x D 200mm
Exterior Dimension(mm) W 170 x H 150 x D 375mm
Insulation material Rigid polyurethane Foam
Interior material Stainless Steel Plate ( SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Ambient Temp. 5°C ～35°C
Power Supply

AC 3ψ4W 380V 50Hz(R,S,T,N +Ground Wires)(Voltage constancy

≦±10%)
Heater Fin heat dissipating tube shaped stainless steel heater
Safety device (standard)

No fuse breaker,over pressure,over heat&over current protect,over temp.

protect, over load protect for blower, dry heat protect
Control System Balanced Temperature & Humidity Control (BTHC)System
Refrigeration system Fin type attached heat dissipation motor
Semi-Hermetic compressor
Non fluorine environmental cold medium R404A, R23 comply with environmental regulations, safe and non-toxic

Note: 1. We reserve the right to change specifications

without prior notice 2. Customized sizes and configurations available

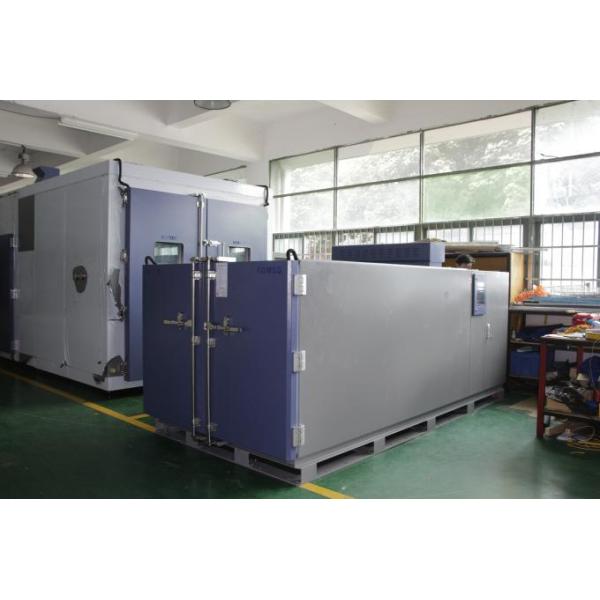

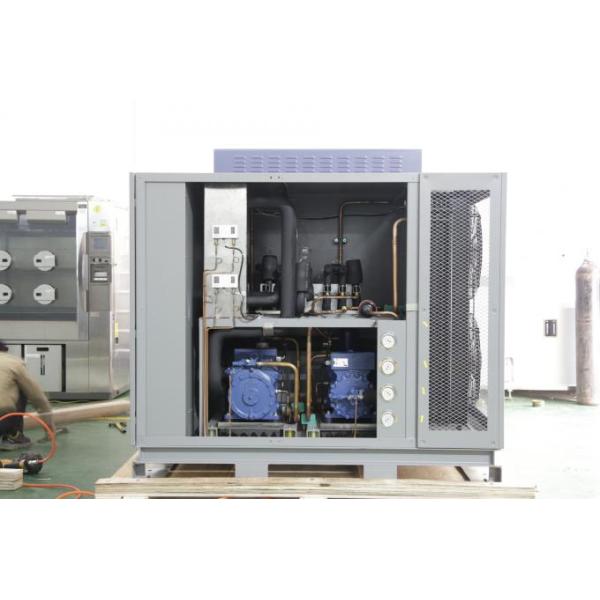

Product pictures:

3000L High Automotive Materials And Low Temperature Testing Chamber With LCD Touch Panel

3000L High Automotive Materials And Low Temperature Testing Chamber With LCD Touch Panel

Service Quality Assurance

a. Quality assurance issues:

1. The equipment warranty for one year from the date of sales under normal use (except natural

　

　disasters,power abnormal, man-made improper, improper maintenance, the Company free

　maintenance, for morethat warranty service , costs will be charged accordingly.

2. The equipment problems during use should be respond within 24 hours to appoint maintenance

　engineers, technical staff in time, solve the problems.

3. Promise to provide lifetime free technical support.

b. The main evidence for the free service:

1. Please save your company properly, "Operating Instructions" and "warranty card", any loss should be

　within one month to contact the customer service department with my company.

2. "Operating Instructions" and "warranty card" if the altered seal or add me to the Company, the invalid.

c. The following cases, although the effective guarantee period, may also small additional

Technology or materials:

1. Change and damage due to natural disasters.

2. As the user of the fault or operator error resulting in failure.

3. The damage caused by improper maintenance.

4. Failing to use the power supply lead to damage

5. Overhaul their own fault.

6. Resulting in failure to lend to others.
