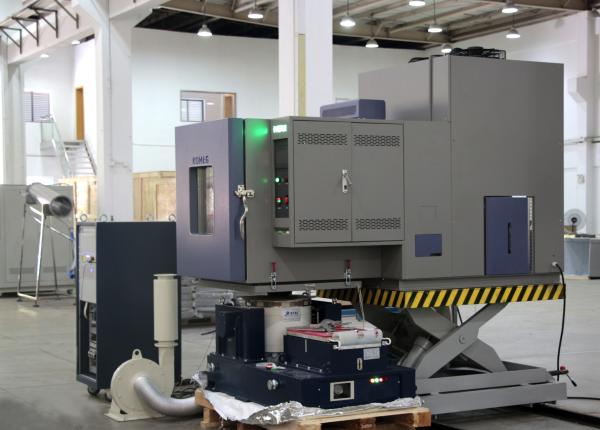

-70℃ ～ +180℃ Combined Vibration Temperature Humidity Test Chamber 20%R.H.～98%R.H
-70℃ ～ +180℃ Combined Vibration Temperature Humidity Test Chamber 20%R.H.～98%R.H
-70℃ ～ +180℃ Combined Vibration Temperature Humidity Test Chamber 20%R.H.～98%R.H
-70℃ ～ +180℃ Combined Vibration Temperature Humidity Test Chamber 20%R.H.～98%R.H
Specifications
Brand Name :
KOMEG
Model Number :
KMVH-1000S
Certification :
CE,ISO9001,ISO14001
Place of Origin :
China mainland
MOQ :
One set
Price :
USD 110000~ 150000/ SET
Payment Terms :
L/C, T/T
Supply Ability :
50 SETS PER YEAR
Delivery Time :
40~50 WORKDAYS
Packaging Details :
Standard export plywood case
Temperature range :
-70℃ ～ +180℃
Humidity range :
20%R.H.～98%R.H
Temperature fluctuation :
±0.5℃
Workspace volume :
W 1000 × H 1000 × D 1000 mm
Compressor :
BOCK/ Semi-hermetic compressors
Humidity deviation :
±2％RH
Vertical expansion countertop :
800mm*800mm
Frequency Range :
2～3000 Hz
Rated speed :
2m/s
Equipment size :
L 1200mm×W 870mm×H 1100mm（Vertical table）
Description

-70℃ ～ +180℃ Combined Vibration and Temperature and Humidity Test Chamber 20%R.H.～98%R.H

Auto Parts Testing Chamber Temperature Humidity Vibration Combined Laboratory Combined Test Equipment provides the change of temperature and humidity environment for the aerospace, aviation, petroleum, chemical, electronics, communication and other scientific research and production units, at the same time in the test chamber electric vibration stress according to the provisions of the cycle is applied to the sample, for the user of the machine (or components), electrical appliances, instruments, materials etc. temperature and humidity, vibration stress screening test, in order to assess product adaptability or experiment on behavior evaluation.

Ⅰ. Performance (Water cooled, Ambient temperature +20℃, no load )
1. Temperature range -70℃ ～ +180℃
2.Temperature deviation ≦±2.0℃
3.Temperature fluctuation ±0.5℃
4.Temperature change rate

Heating rate: -70℃ to +180℃ within 90 min no load

Cooling rate: +20℃ to - 70℃ within 90 min no load
5.Humidity range 20%R.H.～98%R.H
6. Humidity deviation ±2％RH
7. Humidity uniformity 3.0％RH
8.Humidity deviation ±2.0％RH
Ⅱ. Chamber Structure
1. Chamber size

Workspace volume: W 1000 × H 1000 × D 1000 mm

Exterior size: W 1550 × H 2080 × D 2500 mm (appr.)
2．Insulation box

※ wall material: high-quality carbon steel with static color spray

※ inner wall material: SUS304 # matte stainless steel plate

※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
3.Protection Devices Fuse-free switch, overloading protection switch for the compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
4.Vibration Test Equipment Choose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference

Auto Parts Testing Chamber Temperature Humidity Vibration Combined Laboratory Combined Test Equipment Features:


1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console.
2. Original refrigerating compressor unit and its main accessories are an internationally famous brand;
3.LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models of the vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boast remarkable effect of mechanical vibration

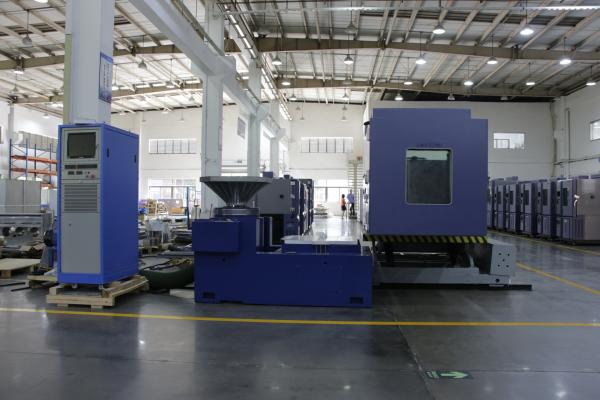

Vibration System working principle
-70℃ ～ +180℃ Combined Vibration Temperature Humidity Test Chamber 20%R.H.～98%R.H
Ⅲ Specification
System technical specification
1.Exciting force

Sin: 2200Kg.f peak

Random: 2000Kg.f rms

2.Frequency Range Vertical table: 2Hz~3000Hz
3.Rated acceleration 100G(980 m/s2)
4.Rated speed 2m/s
5.Rated displacement 50.8 mm p-p
6.Maximum load 400kg
7.Equivalent mass of moving parts Vertical table: 20kg
8.Vibration isolation frequency 2.5 Hz
9.Moving coil diameter Ф320 mm
10.Mounting hole position 17×M10

FAQ


Q1. What are your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?
A: EXW, FOB, CIF.

Q4. How about your delivery time?
A: Generally, it will take 40 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the fixtures.


Q6: What about the product' services and quality?
A: Each instrument must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provides video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer’s company when you need.


Q7: How to choose the most suitable products?
A: Our professional team will give you the best suggestion, when you need some products to make the test, just be patient to tell us the information about your test sample, the parameters you're required. Our team may help you to find the best one.

If you need more information about Auto Parts Testing Chamber Temperature Humidity Vibration Combined Laboratory Combined Test Equipment, please don't hesitate to contact me.
