Specifications
Brand Name :
KOMEG
Model Number :
KMH-64L
Certification :
CE
Place of Origin :
China Dongguang
MOQ :
ONE set
Price :
Negotiation
Supply Ability :
100 pcs/day
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Humidity Uniformity :
3.0%RH (no-load
Color :
Self determination
Heat Up Rate :
From -70℃ ↑ +180℃ Average 20℃/min No Load .(According To IEC60068-3 Standard )
Humidity Deviation :
±3.0%RH(>75%RH) ±5.0%RH(≤75%RH)
Interior Material :
SUS 304
Description

64L High and Low Temperature Climate Test Box With In-hole operation For Calibration

Product description:

Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability

test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing

equipment and test methods for the basic parameters of electric and electronic products under the condition

of humidity, low temperature, high temperature, and constant heat.

Specification

Capacity(L)

64L

Temperature range

L :-40℃ ~ +150℃

R : :-20℃ ~ +150℃

S:-70℃ ~ +150℃

Temp Deviation ≦ ± 2.0℃
Size

Workspace volume: W 400 × H 400 × D 400 mm

Exterior size: W 600 × H 1550 × D 1220 mm (about)

Temp Fluctuation ±0.5℃
Heat up rate

Heating up rate: -40℃↑ +100℃ about 45min (no-load, ambient temperature +25℃)

Cooling rate: 20 ℃to -40℃about 60min (no-load, ambient temperature +25℃)

Humidity range

20%R.H~98%R.H

Door

Single door, left open. Heating wire was installed at the door frames to prevent

condensation at low temperatures.

Humidity uniformity 3.0%RH (no-load)
Load

Product calorific value 1000w

Humidifier

Water basin heating and humidification method;

Stainless steel sheathed heater;

Heater control: no-contact control (SSR);

Water level control device, heater anti-dry device

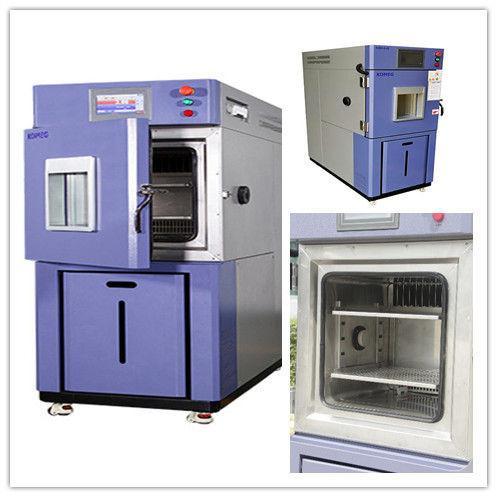

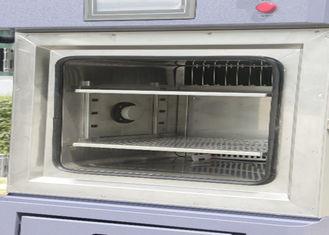

Product picture
