High And Low Temperature Test Chamber Two Sides Door Open For Oil Electronic Pump
High And Low Temperature Test Chamber Two Sides Door Open For Oil Electronic Pump
High And Low Temperature Test Chamber Two Sides Door Open For Oil Electronic Pump
High And Low Temperature Test Chamber Two Sides Door Open For Oil Electronic Pump
High And Low Temperature Test Chamber Two Sides Door Open For Oil Electronic Pump
High And Low Temperature Test Chamber Two Sides Door Open For Oil Electronic Pump
Specifications
Brand Name :
Komeg
Model Number :
KMT-408
Certification :
CE approval
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs /day
Delivery Time :
35 day after confirm the order
Packaging Details :
rigid poly foam and wooden box
Temp Range :
-70℃ ～ +180℃
Temp Deviation :
≦ ± 0.5℃
Pressure range :
Normal Pressure ～1k Pa
Interior material :
Stainless steel
Exterior Material :
Baked Painting Steel
Heating uptime :
0.7℃～1.0℃/minutes(Average )
Description

High And Low Temperature Test Chamber Two Sides Door Open For Oil

OEM and ODM are welcome

More detail information ,pls kindly contact :anna@komegtech.com Mobile no :+86-18098281986 or Wechat:+86-18098281986

Main technical parameters ( water-cooled, temperature +25℃, no load)
1.Temperature range

-70℃ ～ +180℃(Different temperature range per customer requirements)
2.Temperature deviation ±2.0℃
3.Temperature fluctuation ≦1.0℃
4.Temperature uniformity ≦±2.0℃

5.Heating up rate&Cooling down rate

from 25℃ to +150℃ whole process average≧3℃/min Load 50 kg aluminum alloy

from +25℃ to -40℃whole process average ≧2℃/min Load 50kg aluminum alloy

The temperature performance test is based on the relevant provisions of the IEC 60068 -3

standard; the sensor is placed at the unit air outlet.

Chamber structure

The test chamber adopts the overall structure, the upper part is the working chamber, the rear side is

the refrigeration unit, the lower right space (≧700mm) is vacant to install the hydraulic part device, the

right is the electric control cabinet, the control panel is located on the right front side; the width direction

opens the door , the right side is the air duct system; the air supply motor, the centrifugal fan blade, the

heater, and the evaporator.
1.Chamber size

Inner size: W 1800 × H 1200 × D 1200 mm

Outer size :W 2935 × H 2170 × D 1450 mm approx
2.Insulation box

Outer wall material: cold-rolled steel plate electrostatic double-sided spray, color ivory white;

Inner wall material: SUS304# matte stainless steel plate, thickness 1.5mm

Insulation material: rigid polyurethane foam insulation layer + glass fiber.
3.Structural strength

bottom bearing capacity: ≧150kg

The bottom of the workroom has a threaded port for mounting the work shelf

Standards Implement and Met

● GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test.

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D)High Temperature Test

● GJBl50.4-2009(MIL-STD-810D) Low Temperature Test

● GB2423.3-2008 (IEC68-2-3) Test Ca: Constant Hot and Humid Test

● GB2423.4-2008 (IEC68-2-30) test Db: Alternating Hot and Humid Test

● GJBl50.9-2009 (MIL-STD-810D) Damp heat test method

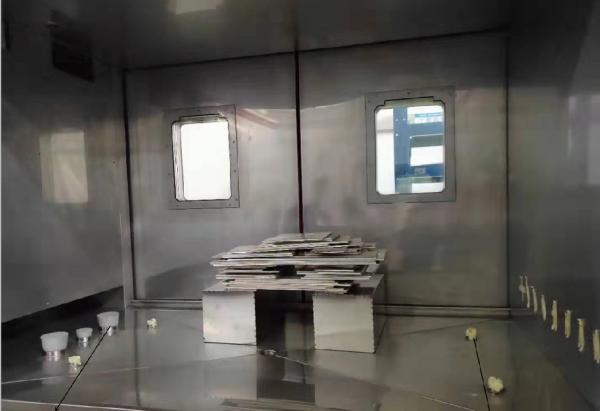

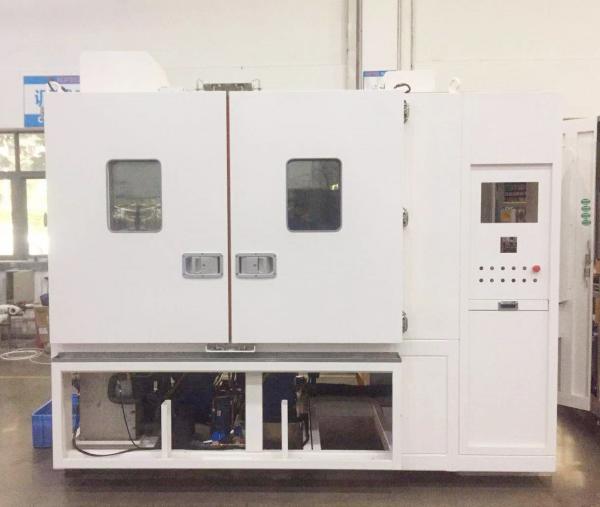

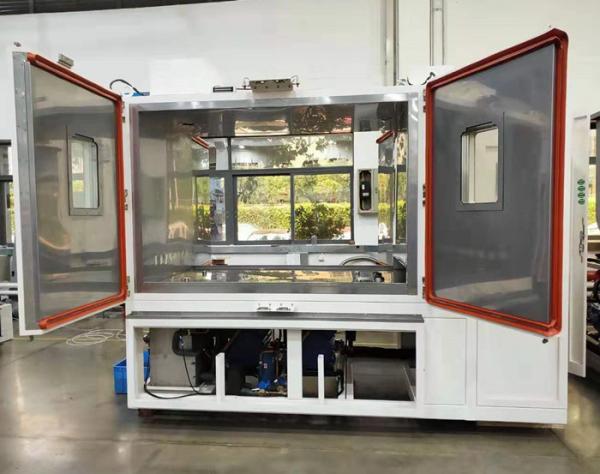

Photos show

High And Low Temperature Test Chamber Two Sides Door Open For Oil Electronic Pump

High And Low Temperature Test Chamber Two Sides Door Open For Oil Electronic Pump
