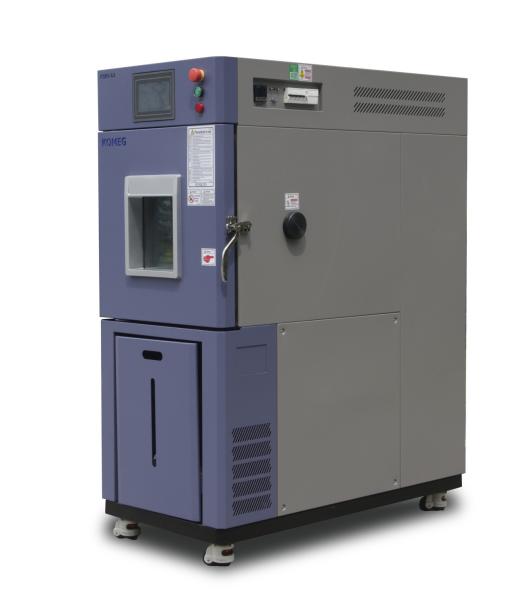

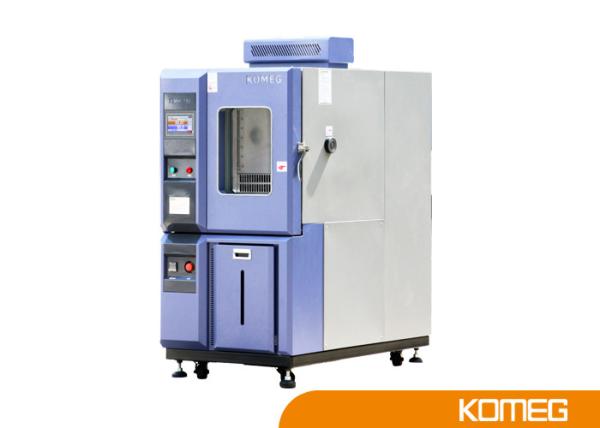

380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment
380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment
380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment
380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment
Specifications
Brand Name :
KOMEG
Model Number :
KMH
Certification :
CE
Place of Origin :
GUANGDONG, CHINA
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
800 Set/Sets per Year climatic test chamber
Delivery Time :
Shipped in 30 days upon your deposit
Packaging Details :
Each set protected with resin fiber and PP film, then put into strong plywood case with operation mannual inside.
Products Name :
KMH Temperature And Humidity Chamber
Application :
electronic products to do the heat and cold resistance test
Material :
Stainless Steel Plate (SUS304)
Refrigeration System :
air cooled and water cooled for option
Temperature range :
-40 °C~ +150°C
System :
Balanced and Humidity Control System
Power supply :
AC 380V/50Hz 3 Phase 4 Wires+Ground Wires
Description

Climatic Test Chamber used for electronic products resistance test

380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment

KOMEG Temperature and Humidity Chamber used for inspecting the equipment and testing the

performance of materials in various environments and all kinds of materials which need to test the heat

resistance, cold restance. for LCD, PCB and other products do the high temperature aging test, for

automobile to do the high and low temperature, damp and heat test.

Temperature and Humidity Chamber
Model(KMH) 150L 225L 408L 800L 1000L
Interior size(CM) W 60 70 70 100 100
H 60 70 75 100 100
D 46 48 80 80 100
Exterior size(CM) W 88 90 90 120 120
H

163.5

 173.5 178.5 203.5 203.5
D 148.5 150.5 182 181.5 201.5
Weight(kg) 250 300 420 530 600
Temp. range

-40°C~+150°C
Temp. uniformity ±2.0°C
Temp. fluctuation

±0.5°C
Heat up time -40°C~+100°C Within 45 min
Cool down time +20°C~ -40°C Within 60 min
Humidity range ormityf20~98%R.H
Humidity fluctuation ±2.5%R.H
Humidity uniformity ±3.0%RH (>75%RH) ±5.0%RH (≤75%RH)
System
Balanced & Humidity Control System
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fiber wool
Refrigeration system Air cooled and Water Cooled for option
Hermetic compressor,stage refrigeration system
Controller

Touch screen controller Chinese, English, Russian menu Operation mode: setting/program

Hermetic Compressor,Cascsde Refrigeration CFC free refrigerant
Safety devices

No-fuse breaker, over-pressure, over-heat and over-current protectors for compressor

over-temp. protector, over-load protector of fan, dry heat protector, short of water protector
Standard Accessories Observation Window*1, cable port(port 50mm)*2, shelves*2, chamber lamp*1, power cable 2m
Ambient Temp. +5ºC~+35ºC
Equipment power 8KW 5.5KW 7.2KW 8KW 8.5KW
Weight(kg) 450 450 480 500 880
Power AC 380V/50Hz ,3 Phase 4 wires +Ground Wires

Structure Features

Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing

Inner wall material:Stainless Steel Plate SUS304

Body insulation material:Rigid polyurethane Foam + glass fiber

Door insulation material:Rigid Polyurethane Foam + Glass fiber

380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment

380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment

380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment

380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment

Why Choose KOMEG?

Over 28 Years' Experience
KOMEG has been the brand of Komeg Technology Industrial since 1990, which was an enterprise focused

in researching, manufacturing and selling reliability testing device. Including High and Low Temperature

Testing chamber, Power Battery High and Low Temperature Explosion Proof Test Chamber, Thermal Shock

Testing Chamber, Walk-in Temperature and Humidity Test Chamber, Temperature and Humidity Altitude test

Chamber, Precious Oven Test Chamber, etc. We built producing factory 1 and factory 2, which is about

10000 M. Both of our factories strictly obey ISO9001 and ISO14001 standards, to ensure high performance

and reliability of our products.

Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)

380V 50Hz 3 Phase Temperature Humidity Chamber / Environmental Testing Equipment
