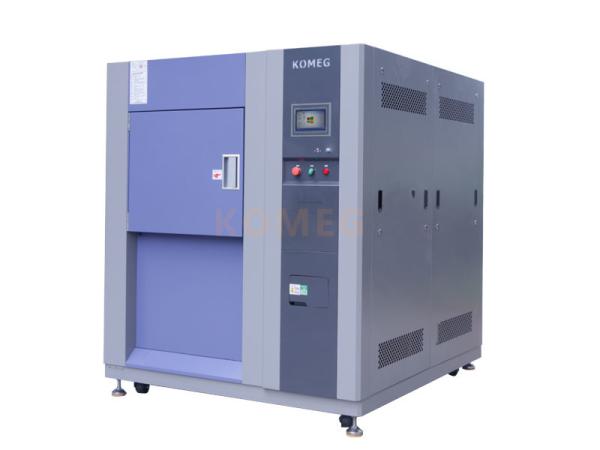

CE ISO 3 Zone Thermal Shock Test Chamber For Automotive Components
CE ISO 3 Zone Thermal Shock Test Chamber For Automotive Components
CE ISO 3 Zone Thermal Shock Test Chamber For Automotive Components
CE ISO 3 Zone Thermal Shock Test Chamber For Automotive Components
Specifications
Brand Name :
KOMEG
Model Number :
KTS-252B
Certification :
CE, ISO,
Place of Origin :
China
MOQ :
1SET
Price :
negotiation
Payment Terms :
T/T, negotiable
Supply Ability :
1000 SETS / YEAR
Delivery Time :
45 working days after received your payment
Packaging Details :
Packed in carton firstly, and then reinforced with plywood case for outer packing
Chamber Model :
KTS Series
Chamber Volume Size :
27L to 480L
Shock range :
-55ºC～+150ºC
Maximal Temperature :
200°C
Lowest Temperature :
-70°C
Transition time :
≤15S
Recovery time :
5min
Temperature change rate :
15 to 50°C/min
Description

CE ISO 3-Zone Thermal Shock Test Chamber for Automotive Components Testing

1. Thermal Shock Test Chamber Features

1.3-zone design: high temperature zone, cold temperature zone, and testing zone.
2.The test specimens under test are stationary in the testing zone.
3.Touch-control operation interface for ease of use.
4.Max.999H and max.9999 cycles for high or low temperature shock for thermal shock test chamber.
5.Automatic cycling shock or/and manual selective shock are available.
6.Water cooled, binary cooling system for quick cooling effect.
7.Japan imported Seamless Welding Machine, especially for copper pipe welding

2. Description and Application


This machine is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics ... and other materials can be used as a basis to improve their products or reference.

Thermal shock testing exposes products to alternating low and high temperatures to accelerate failures caused by temperature cycles or thermal shocks during normal use. The transition between temperature extremes occurs very rapidly, greater than 15 °C/min.

We supply thermal shock chambers for LG, Magna International, Nesan Automotive,etc.

if any inquiry, please contact Nancy via email nancy@komegtech.com, or mob/wechat:+86 6648 1206.

CE ISO 3 Zone Thermal Shock Test Chamber For Automotive Components

3. Specification

(1) KTS-A Series

Model

KTS-A Series

72A

100A

150A

200A

252A

300A

480A

Inside size(mm)

W

450

500

600

670

700

800

800

H

400

450

500

600

600

600

800

D

400

450

500

500

600

650

750

Outside size(mm)

W

1490

1540

1640

1720

1750

1850

1850

H

1790

1840

1890

2000

2000

2000

2200

D

1600

1700

1830

1850

1930

1980

2500

Test weight

5

10

12

15

18

20

20

Low Temp Chamber

-55ºC～-10ºC, Pre cooling time: ≤ 60 min from +20ºCto-55ºC

Test Chamber

-40ºC～+150ºC

High Temp Chamber

+60ºC～+200ºC ,Within 20 min, Pre-heating time

Transition time

≤15S

Recovery time

High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample

Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample

≤ 5 min

Ambient Temp.

+5ºC～+35ºC

Power

AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires

(2) KTS-B Series

Model

KTS-B Series

72B

100B

150B

200B

252B

300B

480B

Inside size(mm)

W

450

500

600

670

700

800

800

H

400

450

500

600

600

600

800

D

400

450

500

500

600

650

750

Outside size(mm)

W

1490

1540

1640

1720

1750

1850

1850

H

1790

1840

1890

2000

2000

2000

2200

D

1600

1700

1830

1850

1930

1980

2500

Test weight(KG)

5

10

12

15

18

20

20

Low Temp. chamber

-70ºC～-10ºC ,Pre cooling time: +20ºC～-70ºC ,≤ 60 min

Test. Chamber

-55ºC～+150ºC

High Temp. chamber temperature

+60ºC～+200ºC,Preheating time: ≤20 min

Transition time

≤15S

Recovery time

High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample

Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample

≤ 5 min

Ambient Temp.

+5ºC～+35ºC

Power

AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires

(3) KTS-D Series

Model

KTS-D Series

72D

100D

150D

200D

252D

300D

480D

Inside size(mm)

W

450

500

600

670

700

800

800

H

400

450

500

600

600

600

800

D

400

450

500

500

600

650

750

Outside size(mm)

W

1490

1540

1640

1720

1750

1850

1850

H

1790

1840

1890

2000

2000

2000

2200

D

1600

1700

1830

1850

1930

1980

2500

Test weight

5

10

12

15

18

20

20

Low Temp Chamber

-80ºC～-10ºC, Pre cooling time: ≤ 60 min from +20ºCto-80ºC

Test Chamber

-65ºC～+150ºC

High Temp Chamber

+60ºC～+200ºC ,Within 20 min, Pre-heating time

Transition time

≤15S

Recovery time

High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample

Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample

≤ 5 min

Ambient Temp.

+5ºC～+35ºC

Power

AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires

4. Product Details Picture:

CE ISO 3 Zone Thermal Shock Test Chamber For Automotive Components

CE ISO 3 Zone Thermal Shock Test Chamber For Automotive Components
