1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window
1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window
1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window
1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window
1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window
1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window
1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window
1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window
Specifications
Brand Name :
KOMEG
Model Number :
KMH-1000S
Certification :
CE approval
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
35 working days after received 60% deposit
Packaging Details :
Packed in carton firstly, and then reinforced with plywood case for outer packing
Temp Range :
-70℃ ～ +180℃
Temp Deviation :
≦±2.0℃
Temp Uniformity :
≦2.0℃
Humidity range :
20%R.H～98%R.H
Humidity deviation :
±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH）
Humidity uniformity :
±3.0％RH（no-load）
Description

250L Air cooled Temprature And Humidity Testing Chamber With LCD touch screen controller


Description

Able to accurately simulate a wide range of complicated natural environments, and is suitable for

reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental

testing equipment and test methods for the basic parameters of electric and electronic products under

the condition of humidity, low temperature, high temperature, and constant heat.


Application

Temperature and humidity test chamber is also called temperature and humidity

testing machine, constant temperature and humidity experimental chamber, programmable wet heat

alternating test chamber, or constant temperature machine. The Temperature and humidity test chamber

is used to inspect equipments quality and test performance of materials in various environments,

and all kinds of materials properties of heat resistance, cold resistance, dry resistance and

moisture resistance, which is fit for Electronics, electrical appliances, mobile phones, communications,

meters, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and

other products quality inspection.

Specifications

1. Chamber
1.1 Workspace volume IW 1000 × IH 1000 × ID 1000 mm
1.2 Exterior size EW 1200 × EH 2035 × ED 2050 mm
2. Temperature
2.3 Temperature range -70 ℃ ~ +180 ℃
2.4 Temp Deviation ≦±2.0℃
2.5 Temp Constancy ±0.5℃
2.6 Temp Uniformity ≦2.0℃
2.7 Ramping and soaking rate

-70℃↑ +100℃ within 60 mins (no-load)

+20℃↓ -70℃ within 80 mins (no-load)
3. Humidity
3.1 Humidity range 20%R.H.～98%R.H
3.2 Control range

3.3 Humidity deviation

±3.0％RH(＞75％RH)

±5.0％RH(≤75％RH)
3.4 Humidity uniformity ±3.0％RH(no-load)
3.5 Humidity constancy ±2.0％RH
Temperature and humidity performance measurement comply with related regulation of IEC60068-3-5 standard; Sensors placed in the air outlet.
Ⅴ. Chamber Structure

Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.
1．Insulation box

wall material: high-quality carbon steel with static color spray

inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
2．Door Single door, left open,Heating wire was installed at the door frames to prevent condensation at low temperatures.
3．Observation window With 1 set 460 × 560mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively
4．Cable port Φ50mm*2 located on both sides (each*1) with rubber stopper and plastic cover
5．Lighting device 11W/AC220V *1 located on observation window
6. Heating

Quality nickel-chromium alloy wire electric heaters,

Non-contact control mode (SRR).
7. Humidifying

Steam heating and humidification method;

Stainless steel sheathed heater;

Heater control: contactless control (SSR);

Water level control device, heater anti-dry device.
8．Water outlet hole Available for drain the condensate water
9．Sample holder Two layers of stainless steel sample holder.Layer height adjustable, Bearing weight 30kg/ layer
10．Mobile Casters Mobile Casters *4 with foot cups
11．Electric control box Total power circuit breaker, over-temperature protection.
12. Water supply system Water pump automatic supply


Environmental test chamber Standard

GJB150.3 high-temperature testing

GJB150.4 low-temperature testing

GJB150.9 humid testing

GB11158 Technical conditions for high-temperature testing box

GB10589-89 Technical conditions for low-temperature testing box

GB10592-89 Technical conditions for high and low temperature testing box

B/T10586-89 technical conditions for humidity testing chamber

GB/T2423.1-2001 Low-temperature testing methods

GB/T2423.2-2001 High-temperature testing methods

B/T2423.3-93 Testing Method for humidity Test Chamber

GB/T2423.4-93 Alternating hot and humid testing method

GB/T2423.22-2001temperature testing method

IEC60068-2-1.1990 low-temperature testing method

IEC60068-2-2.1974 high-temperature testing method


FAQ:

Q1 : Can you customize the product?

A: Yes, we can customize any products according to requirements.

Q2 : How to choose the most suitable products?

A: Our professional team will give you the best suggestion,just be patiently to tell us the information about

the parameters your required.

Q3 : Can you arrange installations and commissioning in our lab?

A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link

power in your lab, then can start to operate;

Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it;

Thirdly, some of customized chambers we should to install and teach your team to operate.


Product details

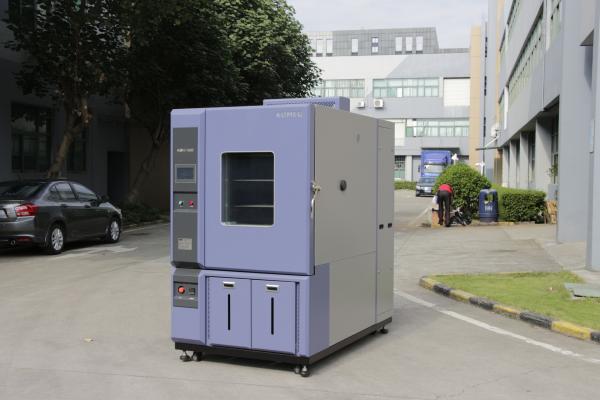

1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window



Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

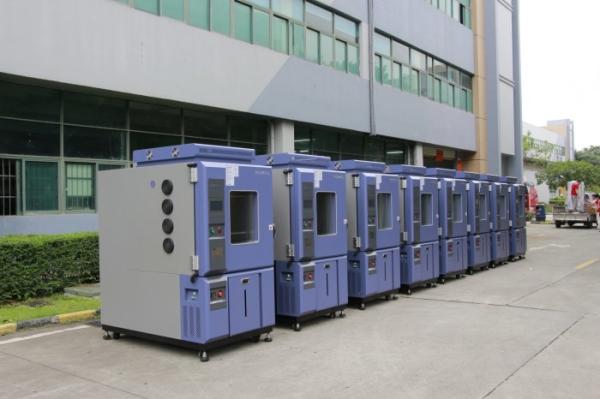

1000L Air Cooled Temprature And Humidity Testing Chamber With Observation Window
