Specifications
Brand Name :
KOMEG
Model Number :
KMHW-408L
Certification :
CE approval
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
35 working days after received 60% deposit
Packaging Details :
Packed in carton firstly, and then reinforced with plywood case for outer packing
Temp Range :
+15℃ ~ +50℃
Temperature uniformity :
≦±2.0℃
Humidity range :
20%R.H~98%R.H
Humidity uniformity :
±3.0%RH
Workspace volume :
W 600 × H 850× D 800 mm
Door :
Single door
Description

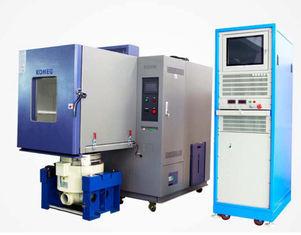

Full average 2℃ /min 408L Temperature, Humidity and Vibration Test Chamber with LCD Touch screen

Summary:

Temperature Humidity/Vibration Combined testing chamber complies complex testing requirement for

temperature,humidity and vibration.

Characteristic:

Testing chamber combined perectly in one part with refrigerant system.spearate control system.easy

operation. Compressor system and main components are all imported world top brand .professional

designed touch screen controller,with RS485 port and auto-control temperature and humidity

program.Vibration systems are optional according to customer requirement. Professional vibration system

installation ensure high isolation of air and temperature, as well as high transmission of mechanical

property.

Product Speifications

1,Temperature
1.1 Temperature range -40℃ ~ +150℃
1.2Temperature uniformity ≦±2.0℃
1.3Temperature fluctuation ±0.5℃
1.4Heating time From -40℃ to +150℃ Full average 2℃ /min no-load,including vibration table
1.5Cooling time From +150℃ to -40℃ Full average 2℃ /min no-load,including vibration table
2,Humidity
2.1 Humidity range 20%R.H~98%R.H
2.2Control range

2.3Humidity uniformity ±3.0%RH
2.4Humidity fluctuation ±2.0%RH
Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet.
. Chamber Structure
1.Chamber size

Workspace volume: W 600 × H 850× D 800 mm

Exterior size: W 1160 × H Pending × D 2500 mm(Not including the protruding part)

2.Insulation box

wall material: high-quality carbon steel with static color spray

inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

3.Door

Single door, single window, left open, handle on right hand side

A. Window W460 * H560mm with energy-saving lamps 1 only

B. Explosion-proof handle

C. Button: SUS # 304

4.Supply air circulation system

A. Special stainless steel lengthened axis of the motor 1

B. SIROCCO FAN

C. Adjustable shutter outlet

5.Heater Bare wire heater (no flammable gas in the box)
6. Humidifier

Water basin heating and humidification method;

Stainless steel sheathed heater;

Heater control: no-contact control (SSR);

Water level control device, heater anti-dry device.

7.Temperature measuring body High precision DIN A class, dry bulb SUS # 304 PT 100Ω 1 Pcs
8.Cable port Φ50mm*1 located on both sides(each*1) with rubber stopper and plastic cover
9.Sample holder Two layers of stainless steel sample holder, load capacity 30kg/layer
10. Water-supplying system Pump water supply automatically

Testing Standard

● GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test

● GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test

● GBJl50. 3 (MIL-STD-810D) High Temperature Test

● GJBl50. 4 (MIL-STD-810D) Low Temperature Test

● GB2423. 3-93 (IEC68-2-3)Test Ca: Constant Heat Test

● GB2423. 4-93 (IEC68-2—30)Test Db: Damp Heat Alternative Test

● GJBl50. 9-93 (MIL-STD-810D) Damp Heat Test

Product Details

Full Average  2℃ / Min 408L Climatic Test Chamber With Refrigerant System

Full Average  2℃ / Min 408L Climatic Test Chamber With Refrigerant System

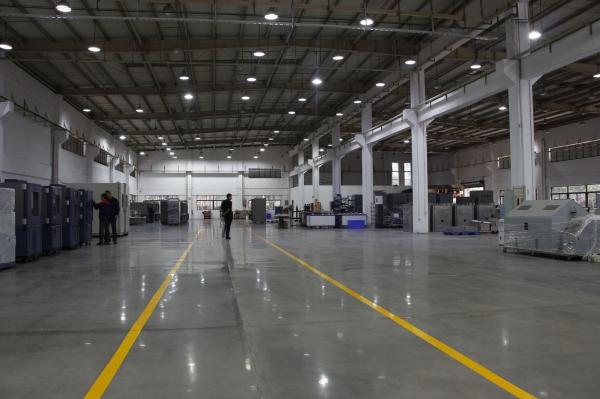

Photos show

Full Average  2℃ / Min 408L Climatic Test Chamber With Refrigerant System

Full Average  2℃ / Min 408L Climatic Test Chamber With Refrigerant System

Pre-Sales Service

1.Inquiry support.

2.Consulting support.

3.Sample testing support.

4.Visiting welcomed.

Packing Details

We use standard inner box PP film and carton plywood for the packing.

Full Average  2℃ / Min 408L Climatic Test Chamber With Refrigerant System

Product After-sale service

If you face any problems in future during testing process we promise we will

give you a reply within 48 hours and solution provide within 3 working days. We

can offer operation video and English operation muanual. We can provide

video-conference. If customers require on-site service, the transport and travel

expense shall be borne by customer.

Full Average  2℃ / Min 408L Climatic Test Chamber With Refrigerant System
