Specifications
Brand Name :
KOMEG
Model Number :
KMHW-12
Certification :
CE/ROHS/FCC/
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
50sets per month
Delivery Time :
15working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Drive-in Temperature / Humidity Test Chambers
Application :
reliability testing, research & development testing, failure analysis
Volume(M3) :
12
Door Size :
Single Wing:W80*H180;Double Wing:W160*H180
Temp. Constancy :
+/-0.5oc
Humidity Constancy :
+/-2.5%R.H
Description

12 cubic Walk-in Programmable Constant temperature and humidity Chamber

1. Applications

Walk in test Chamber are used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.

2. Features

1) Stainless steel interior

2) Painted galvanized steel exterior for long life

3) MAP service doors are hinged (no tools or lifting)

4) Easy access to frequently checked refrigeration components

5) Reliable steam generator system for humidity applications

6) Adjustable vanes in supply grille allow directing of airflow as needed

3. Parameters

Inspect standard:JJF-1101,GB/T 10592,GB/T 10586

Testing standards:YD/T 2061,HB 7122.3,6783.7,GJB 5382.7,GJB 150,GB/T 2423,5170.2,5170.5,5179.2, ASTM E512,NF EN 60068-2-38,CNS 12565,12566,KS C0227,KS C022

Specifications

Specification of Walk-In Chambers 12 cubic Walk-in Programmable Constant temperature and humidity Chamber

Model

KMHW-13

Volume(m³)

27.1CBM

Interior Dimensions

W3000*H2100*D4300mm

Exterior Dimensions

W5050*H2350*D2250mm

Safety Devices(standard)

No fuse breaker, over pressure,over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection

Standard accessories

Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator

Control System

Balanced Temperature & Humidity Control System

Refrigeration system

Water Cooled

Semi-hermetic compressor, single stage or cascade refrigeration system,

CFC free refrigerant(HFC-507 and HFC-23)

Controller

Panel

7-inch LCD Touch panel,Chinese or English display selectable

Operation model

Program or fix point running

Memory capacity

120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles

Accuracy

Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit

Input

Temp.:pt-100, Humidity:pt-100 or ～5V DCV

Comm.port

RS-232 or RS-485 (Softawre is option)

Temp. range

Maximum:80 ºC,120 ºC；Minimum:-60 ºC,-50 ºC,-40 ºC,-30 ºC,-20 ºC,-10 ºC,0 ºC

Humidity Range

10％,20%,30%～95%

Temp. constancy

±0.5 ºC

Humidity constancy

±2.5％R.H

Temp. uniformity

±2.0 ºC

Humidity uniformity

±5.0％R.H

Ambient Temp.

+5 ºC～+35 ºC

Wiring method

AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires

Heat up time

+20 ºC～+80 ºC,Within 60 min

Pull down time

+20 ºC～-55 ºC, -40 ºC,-20 ºC,-10 ºC,Within 120 or 90 or 60 min

Interior material

Stainless Steel Plate(SUS 304)

Exterior material

Baked Painting Steel Or Stainless steel(SUS304)

Insulation material

Rigid polyurethane foam

Door size (mm)

Single wing:W800*H1800； Double wing:W1600*H1800；

Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available

4. Description

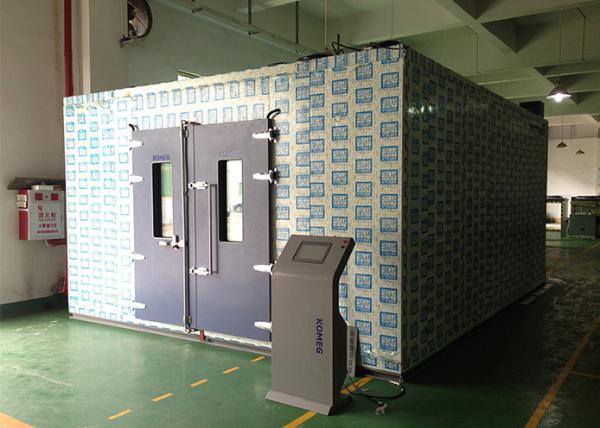

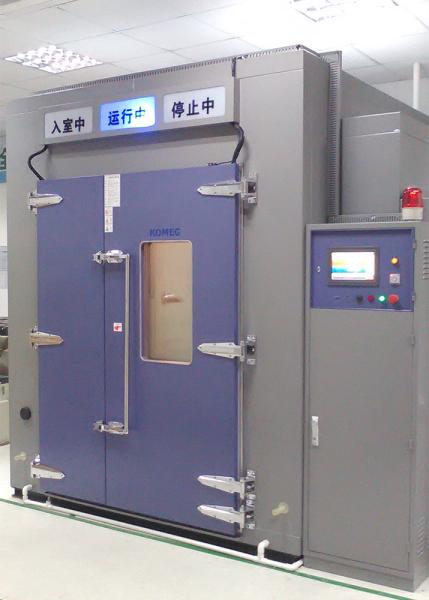

Most popular walk-in type

  1. Standard sub-assemblies for quick delivery and low cost
  2. High quality panels manufactured to KOMEG standards.
  3. Standard muti-layer heated window in door(s)
  4. Operation allowable to 120°C(75°C in humidity mode )
  5. Temperature change rates to 10°C/m.

12 cubic Walk-in Programmable Constant temperature and humidity Chamber

Flexibility for structure

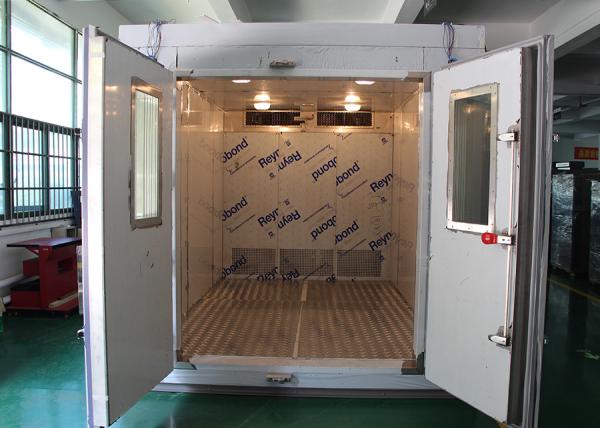

The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.

12 cubic Walk-in Programmable Constant temperature and humidity Chamber

Widest test range, most customizable

12 cubic Walk-in Programmable Constant temperature and humidity Chamber
