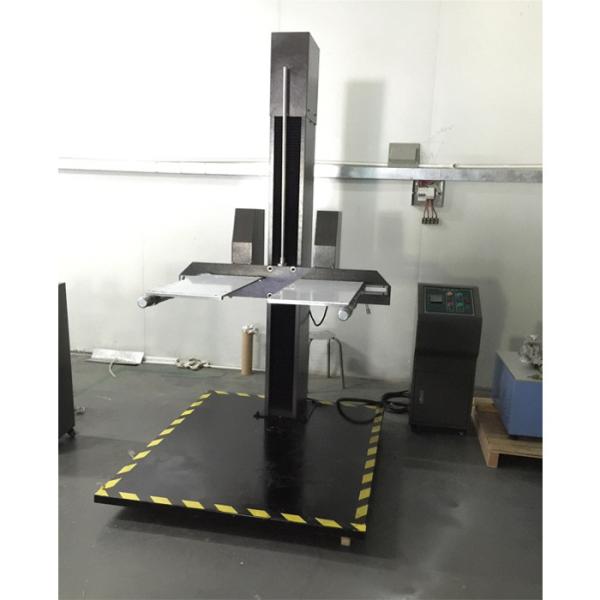

Single Arm / Single Wing Drop Test Machine / Free Fall Drop Tester Equipment
Single Arm / Single Wing Drop Test Machine / Free Fall Drop Tester Equipment
Single Arm / Single Wing Drop Test Machine / Free Fall Drop Tester Equipment
Single Arm / Single Wing Drop Test Machine / Free Fall Drop Tester Equipment
Specifications
Brand Name :
KOMEG
Model Number :
KT-7003
Certification :
CE ,ISO9001
Place of Origin :
Guangdong, China (Mainland)
MOQ :
one set
Price :
USD1500-USD4500/set
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
About 20 working days after receipt of down payment
Packaging Details :
Well packed in strong plywood box.
Type :
drop testing machine
Drop height :
30~150 cm
Control system :
Digital control
Usage :
Drop Tester
Dropping method :
Pneumatic cylinder
Error for Drop Height (mm) :
±10
Fitting modes :
Rhombohedrons, Angle, face
Max Weight of specimen :
65 kg
Description

Single Arm / Single Wing Drop Test Machine / Free Fall Drop Tester Equipment

This tester can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops

Specification:

Model KPD-150A KPD200A KDP-150B KDP-200B
Type Single arm lifting
Test height 30~150cm 30~200cm 300~150cm 300~200cm
Max.size of specimen 100*100*80cm
Maximun weight of specimen 85kg
Overall weight 480kg 550kg 480kg 550kg
Overall size 150×100×225cm
Baseplate size 150×100×2cm
Control mode Electronic control box
Drop method Cylinder
Height indicator LCD display shows drop height
Height adjustment Servo motor precision control
Buffer type Oil pressure absorption
Power supply AC 1 phase 220V 60/50Hz

Model KT-7003
Height range 40-150cm
Area of single wing (W*D) 30*75cm
Base area(W*D) 120*140cm
Test space(W*D*H) 87*74*40~160cm
Load weight about 60kg
Height adjustment Motor driven
Motor 1/3 HP
Host volume 120*140*210cm
The control box volume H110cm
Weight 400kg
Power AC 1 phase 220V 50Hz

Design Standard: GB4757.5-84 JISZ0202-87 ISO2248-1972(E)

Characteristics:

1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.

2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.

3. High Accuracy, direct display

4. It is steady when it is dropping and lifting

Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animation Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
