Vacuum Drying Oven 130 PA With Vacuum Pump PID Control For Electronic Component
Vacuum Drying Oven 130 PA With Vacuum Pump PID Control For Electronic Component
Vacuum Drying Oven 130 PA With Vacuum Pump PID Control For Electronic Component
Vacuum Drying Oven 130 PA With Vacuum Pump PID Control For Electronic Component
Specifications
Brand Name :
komeg
Model Number :
KOV-134B
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs /day
Delivery Time :
30 day after confirm the order
Packaging Details :
rigid poly foam and wooden box
Interior Size :
w120xH132xD88cm
Exterior Size :
W160XH207XD110CM
Temp Range :
50℃～200℃ Approx 50Min
Interior Material :
Stainless steel
Exterior Material :
Baked painting steel
Insulation Material :
Glass Wool
Description

Description

Vacuum Drying Oven 130 PA With Vacuum Pump PID Control For Electronic Component

OEM and ODM are welcome

Application


The vacuum Oven is used for drying and heating test in vacuum condition of objects in scientific research units, specialty universities, industrial and mining enterprises’s laboratories together with production field, etc.

Features

● GB-2423.2-89(IEC68-2-2)Test B:High Temperature Test

● GJB360.8-87(MIL-STD.202F) High Temperature Life Test

● GJBl50.3(MIL-STD-810D)High temperature test



Specification

Model KW Control range Vacuum limit workshop size
KUO-27-200 3KW

60℃-200℃

 130pa 30x30*30cm
KUO-72-200 4KW 60℃-200℃ 133pa 40*45*40cm
kUO-100-200 5KW 60℃-200℃ 133PA 45*45*45CM
KUO-290-200 7KW 60℃-200℃ 130PA 60*95*50CM

Other specification

Door Sealing

Silicone, double wing door

Material

Inner material:SUS304# stainless steel ；Exterior size:cooling baked painting

Insulation material

Glass wool

Heater

High quality nickel-chromium alloy wire electric heaters,

Temperature Controller

ST-570 South Korea imported thermostat ST-570

*high precision(0.1%), high performance

*Support multiple input (T / C, RTD, DCV)

*Can finish multiple output and simultaneous output (Max 4 points)

*Simple parameter operation , available text settings

*Supports suppressing system Overshoot function

*Alarm output 1 point

Auxiliary output status operation screen displayed

*Each zone input adjustment function (Max 4 Zone)

To achieve control heating and cooling function

*PID automatic adjustment function (AT Gain)

(AT Gain)

*Supports multiple communication protocols (Modbus, etc.)

*To achieve high quality, high reliability (CE, CUL, ISO, etc.)

Temperature body

K thermoelectric

ventilator

Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct outside the laboratory to be handled by the customer)

Protection System

Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.

Work timer

Digital working timer 1type, the timer starts when the temperature reaches the set value, , 0 ~ 9999 hours

Control panel

Controller ；‚Over-temperature protection；ƒwork timer； ④ emergency stop switch; ⑤ power switch;⑥ timer switch; ⑦ fault lights.

Competitive Advantage
1. Have 27 years experience on environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.
2. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

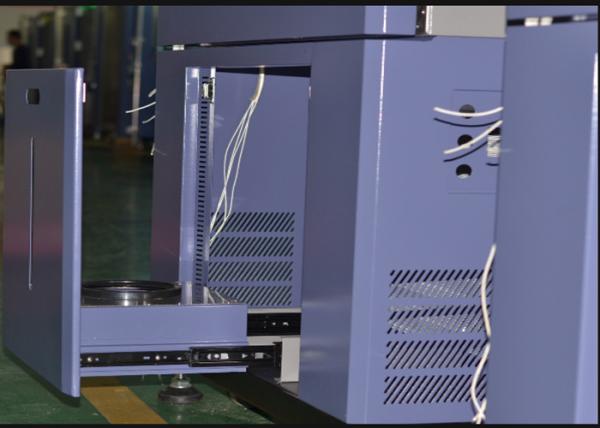

Photos show

Vacuum Drying Oven 130 PA With Vacuum Pump PID Control For Electronic Component
