Programmable LCD touch screen LED Light Temperature Humidity Test Equipment

Company introduction :

KOMEG Technology has been manufacturing environmental test equipment since 1990 and specializes in climatic test chambers, thermal shock test chambers, walk-in chambers, and medical laboratory equipment.

Komeg has been a specialist in environmental tests for almost 26 years and designs and manufactures chambers that can simulate extreme and reproducible environments. Present in sectors as diverse as automotive, aeronautics, space, defense and telecommunications, Komeg helps guarantee the best level of performance, reliability, and safety for your products.

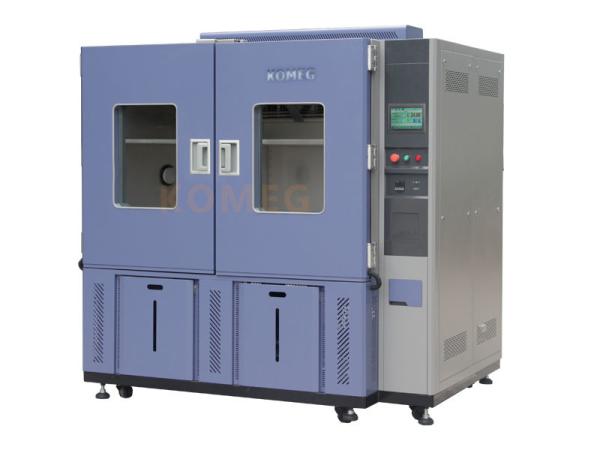

The KMH-L range is a -40°C to +150°C range of environmental chambers available in 5 sizes from 150L up to 1000L. This model features a large 7” full-color LCD touch screen controller capable of up to 120 programs or 1200 cycle steps. The programmable controller is easy to use and clear to read making operation simple and quick and designed with ease-of-use a priority.

Application:

Test material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.

Specifications:

Features:

• Different sizes available starting at 36L
• -70°C ~ +150°C models available
• 7” color touch screen programmable controller
• Heavy-duty castors to allow easy movement
• Large viewing window with fluorescent light
• 50mm diameter portholes
• Refrigeration system uses world-known reliable components

Standards Implemented and met :

●GB10592-89 Technical requirements for high and low-temperature test chamber

●GB2423.1-1989 Low-temperature test mode

●GB2423.2-1989 High-temperature test mode

●GJB150.3-1986 High-temperature test mode

●GJB150.4-1986 Low-temperature test mode

●GJB150.9-1986 Warm test method

Standard configuration :

●Stainless steel exterior

●Energy-efficient refrigeration with exclusive electronic expansion valve system

●Specialized humidity generation and control

●Unique thermal break construction for extreme testing

●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m

●No fuse breaker, overpressure, overheat and over current protection for compressor, Over temperature protection, overload protection of the blower, dry heat protection

Optional accessories :

●Cable Port: Φ100mm cable port is available

●Shelves

●Ro-type water purifier: R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.

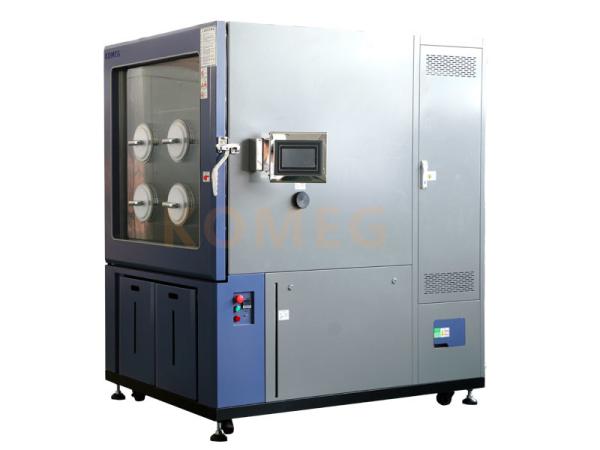

●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.

●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.

●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.

●Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating below 0℃.

●Liquid or infection
In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected to the chamber

F. The energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.
