Specifications
Brand Name :
KOMEG
Model Number :
KM-XD-3F1800
Certification :
CE ,ISO9001
Place of Origin :
Guangdong, China (Mainland)
MOQ :
one set
Price :
USD 13000~45000 PER SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Month
Delivery Time :
35-45 workday
Packaging Details :
Xenon Lamp Climatic Aging Test Chamber is packed by standard export wooden case
Humidity range :
40% to 98%RH xenon arc test machine
Test size :
H 550 × W 750 × D 550mm
External size :
H 1800 ×W 1200 × D 1200mm
Usage :
Weather Resistence Xenon Lamp Climatic Aging Test Chamber
Temperature range :
Rt+10°C ~80°C
Light source :
Full spectrum xenon lamp (air-cooled)
Spray cycle :
1-240min, interval adjustable
Spray time :
1 to 9999min, abjustable
Xenon lamp wavelength :
340~400nm
Xenon lamp radiation intensity :
0.25~0.55W/m2
Description

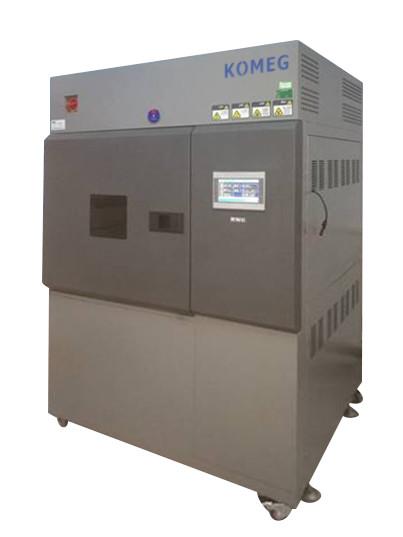

Accelerated Weather Resistence Xenon Lamp Integrated Climatic Aging Test Chamber

Equipment summary:

Xenon accelerated weathering test chamber is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;

Model KM-XD-3F1800
Testing room D×W×H 550*750*550mm
Index Temperature range RT+10°C~80°C
Humidity range 40% to 95%R·H
Spray time 1 to 9999min, abjustable
Spray cycle 1-240min, interval adjustable
spectral wavelength 340~400nm (550w/m2)
light source Full spectrum xenon lamp (air-cooled)
Xenon lamp power 1.8kw (longevity: 1200H)

Control

system

Time controller Import controller from Moeller
Accourate range Temperature: ±0.1 degree / humidity: ±0.1R·H
Sensor Platinum resistance Pt 100Ω/mv
Heating system Independent system, nickel chromium alloy electric heating type heater
Humidity system stainless steel, external Isolated humidifier
Blackboard temperature Bimetal thermometer blackboard 55~75 degree
Water supply Humidification water supply with automatic control, xenon lamp cooled by water recycling

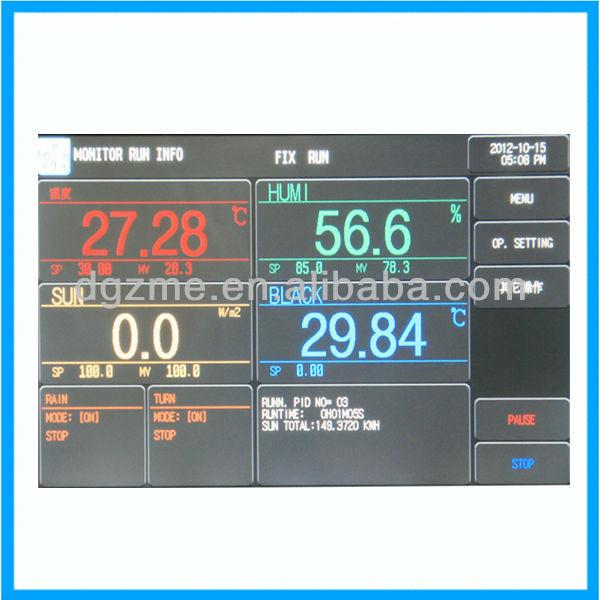

Temperature controller Import controller
humidity Irradiation: 30%~65%RH darkly: up to 90%RH
Cycle system low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel
Material Outside material Advanced spray color plate /SUS304 stainless steel
Inside material SUS304 stainless steel
Sample holder material SUS304 stainless steel
insulation High and low temperature aging of silicone rubber
standard a set of radiation-proof glass window, dynamic testing sample shelf 1, xenon lamp tube 2
protector Leakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection.
Power AC380V±10% 50±0.5HZ , Three-phase five-wire system
Environmental temperature ±5+30 ≤85%R·H

Equipment meets standard GB/T16422.2-1999,GB/T2423.24-1995,SAEJ1885,SAEJ19960,ISO4892-2,AATCC,JASOM,ASTM and so on

Applicable industries of the climatic chamber:

Accelerated Weather Resistence Xenon Lamp Climatic Aging Test Chamber is applied to control the product quality, such as electronic, plastic products, electricalappliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ..and so on.

Our Services

We are here to help you. Services available:
Implementation Assistance
Installation
Training
Calibration
Preventive Maintencance
Technical Support
Relocation Assistance
Upgrade
Repair & Parts

F A Q

1.Are your company a trading one or a factory?

Factory + trade (integration),27 years focusing on test instruments field,10 years exporting experience.

2.After an order is placed, when to deliver?

Generally about 25 days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.

3.What about the warranty with after - sales services?

12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product,handles guest problems and complaints in a professional and timely.

4.What about the services and product' quality?

Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.

♥ Want to know more information welcome to contact us now!

And welcome to our company! We display more new design in our showroom.

♥ Main web site: http://www.komegtech.com

♥Email : bella@komegtech.com
