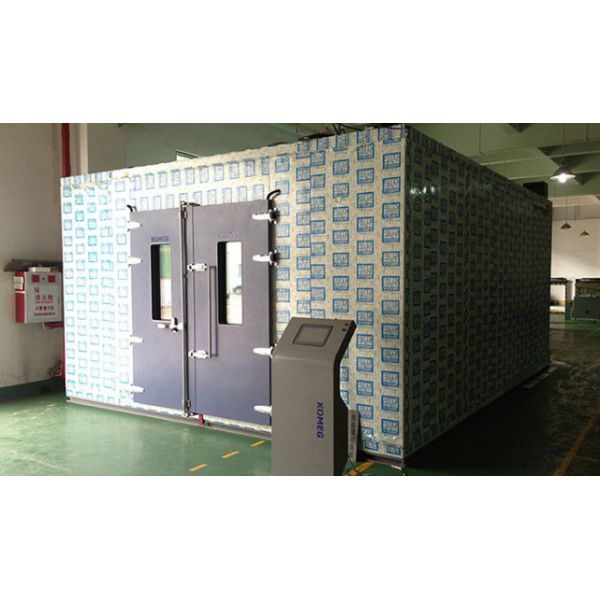

Photovoltaic Performance Temperature Walk-in Chamber , Environmental test Chamber
Photovoltaic Performance Temperature Walk-in Chamber , Environmental test Chamber
Photovoltaic Performance Temperature Walk-in Chamber , Environmental test Chamber
Photovoltaic Performance Temperature Walk-in Chamber , Environmental test Chamber
Specifications
Brand Name :
KOMEG
Model Number :
KMHW
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1set
Price :
negotiated
Payment Terms :
T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
50 sets per month
Delivery Time :
42 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Programmable Walk-in Test Chambers
Application :
reliability testing, research & development testing, failure analysis
Temp. Constancy :
+/-0.5oc
Humidity Constancy :
+/-2.5%R.H
Delivery :
45working days
Installation :
Yes based on your arrangement of room and board
Description

Photovoltaic Performance Temperature Walk-in Chamber , Environmental test Chamber

1. Walk-In Test Chambers

The KMHW series of in-house temperature and climate laboratories are specially developed and designed for large specimens. Size and design means the choice of the best load of the specimen. The test chamber is sold to research and development laboratories of photovoltaic enterprises around the world. The modularity and variability of dimensions and equipment are ideal for customer specific applications.

2. Main Technical Parameters Of Walking In Chamber

Interior Dimensions W3000 x H2000 x D4000mm
Exterior Dimensions W4050 x H2250 x D4000mm
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC～+35 ºC
Wiring method AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time +20 ºC～+80 ºC, Within 60 min
Pull down time +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available

3.Walk-In Chamber Types

Model Number Temperature Range Humidity Range Temperature Change Recommended Use
1 -60°C to +85°C 20% to 95%RH 1 to 2°C/min
Temperature Cycling Temp / Humidity Cycling / Storage Testing
2 -60°C to +150°C 20% to 95%RH 4 to 5°C/min, or faster Temperature Cycling
Temp / Humidity Cycling
Extreme Temp / Humidity Testing
Altitude Testing
3 -20°C to +50°C 20% to 95%RH N/A Constant Temperature
Constant Temp / Humidity
Storage Testing

4. Description

Function has diversity
The structure is flexible
The panels used in our room are 4 "(100mm or 150mm) thick polyurethane foam sandwiched between stainless steel interior and coated steel.
The assembled box is self-supporting. So do not need heavy structural parts. Different door sizes, floor upgrades, access ports and other modifications are possible.

The widest range of tests, the most customizable
