Specifications
Brand Name :
KOMEG
Model Number :
ESS-225S-C10
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 Set/Sets per Year
Delivery Time :
30 days after confirm the order
Packaging Details :
Packed by PP firstly, and then reinforced with plywood case for outer packing
emperature deviation :
≦±2.0℃
Temperature range :
-40℃ ～ +100℃
Temperature uniformity :
≦2.0℃
Temperature fluctuation :
±0.5℃
Workspace volume :
W 700 × H 700 × D 480 mm
Door :
Single door. Left open
Description

225LSingle door rapid-rate temp change testing chamber with LED lighting device

Control method and characteristics

High precision microcomputer temperature and humidity systems by PID controlling SSPR reduce the

system’s heating and humidification amount, to achieve low power consumption, energy saving, carbon

reduction effect. Intelligent electronic control of cooling, heating, humidity control, so it could be used long-

term stability.

Application


Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical

appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research i

nstitution, inspection and quarantine bureau, university etc.

Prouduct Specifications

Ⅳ. Main Technical Parameters(Water Cooled and Ambient +25℃, Empty loading)
Temperature Range -40℃ ～ +100℃
Temp Deviation ≦±2.0℃
Temperature fluctuation ±0.5℃
Temperature uniformity ≦2.0℃

Rate

Of temperature change

Test the following ramp rate at the air outlet, The rate of temperature change is based on the IEC-60068-3-5 standard.

Heating rate: From-40℃ to +100℃ Nonlinear 5℃/min load 5kg

Cooling rate:From +100℃ to -40℃ Nonlinear 5℃/min load 5kg
Ⅴ. Chamber Structure
Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet.
Chamber

Workspace volume: W 700 × H 700 × D 480 mm

Exterior size: approximately W 1000 × H 1735 × D 2030 mm
Insulation

wall material: high-quality carbon steel with static color spray ※ inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
Door Single door. Heating wire was installed at the door frames to prevent condensation at low temperatures.
Observation Window Observation Window on the door, with multi-layers of electric painted heat hollow glasses to avoid condensation.
Lighting device 1 LED lighting device located on observation window.
Heating High-quality nickel-chromium alloy wire heater, non-contact control mode (SSR).
Water outlet hole Equipped with studio condensate and unit condensate drain holes.
Thread port φ50mm Thread port on left and right side with rubber lid and plastic cover.
Sample holder Two layers of stainless steel sample holder, Adjustable spacing ,load capacity 30kg
Mobile casters Include mobile casters (with goblet)
Electric control box Total power circuit breaker, over-temperature protection.
Ⅵ.Refrigeration system
Compressor German Bock semi-tight compressor or German semi-compact compressor.
Refrigerant

Non-fluorine environmental refrigerant,

high temperature level refrigerant: R448A, R23
Condenser Shell-and-tube type condenser (water-cooled).
Evaporator Fin-type multi-stage automatic load capacity adjustment, Long-term use of low temperature and high humidity conditions without frost.
Other Accessories

World top brand accessories, such as high accurate extension valve,

driers, etc
Refrigerant flow control Multi-stage adjustable energy consumption output control of the refrigeration system.
Refrigeration Technology

Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.

water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.

Features

● GB-2423.1-2008(IEC68-2-1) test A: low-temperature test

● GB-2423.2-2008(IEC68-2-2) test B: high-temperature test

● GJB360.8-2009(MIL-STD.202F) Life of high temperature test

● GJBl50.3-2009(MIL-STD-810D) high-temperature test

● GJBl50.4-2009(MIL-STD-810D) low-temperature test

● GB2423.3-2008(IEC68-2-3) test Ca: constant damp heat test

● GB2423.4-2008(IEC68-2—30) test Db: Alternating hot and humid test method.

● GJBl50.9-2009(MIL-STD-810D) Damp heat test method.

Prouduct Display

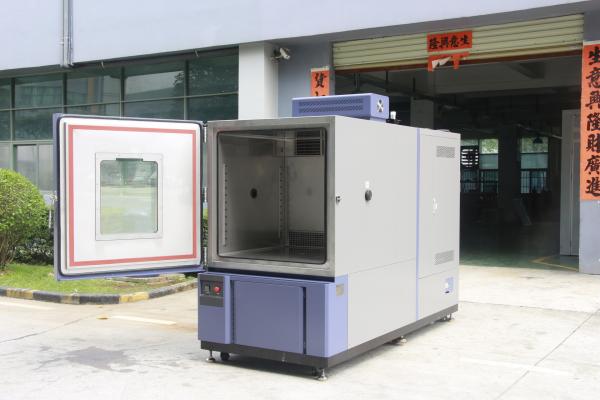

Single Door Rapid Rate Temp Change Environmental Chamber With LED Lighting Device

Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

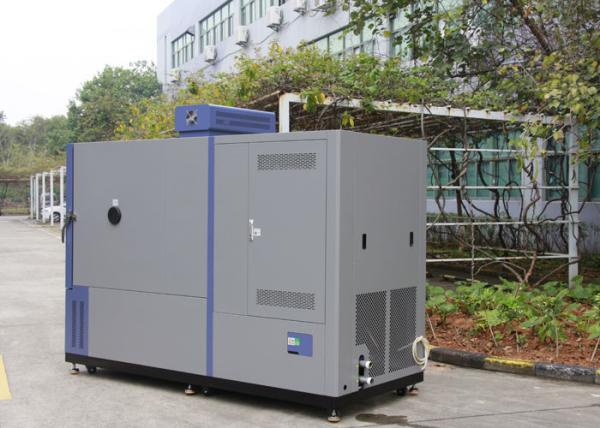

Single Door Rapid Rate Temp Change Environmental Chamber With LED Lighting Device
