1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
Specifications
Brand Name :
KOMEG
Model Number :
KOV-1500B
Certification :
CE,UL
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Temperature Range :
RT+20℃ ～ +300℃
Temperature Fluctuation :
±0.5℃
Inner Material :
SUS ＃304 stainless steel
Power :
AC 3ψ 4W 380V 50Hz (R、 S、 T、 N+G ) (voltage fluctuation ≦ ± 10%).
Inner Size :
W 1500 × H 1000 × D 1000 mm
Outside Size :
about W 1900 × H 1825 × D 1316 mm ( not including the machine protruding part)）
Description

1500 L double door glass fiber high temperature oven with protective device

Product Overview

This series is applicable to the reliability test and production of industrial products, with the characteristics

of high temperature control accuracy and wide control range, performance index accords with

GB5170.2.3.5.6-95 "electrical and electronic products environmental testing equipment basic parameter

calibration method of high temperature test equipment” required standards.

Specifications

Air supply mode Forced air circulation

Temperature

Range

 RT+20℃ ～ +300℃

Temp

fluctuation

 ±0.5℃
Temp Uniformity

±2.0℃ (RT+20℃ ～ +100℃)

±3.0℃ (+101℃ ～ +200℃)

±4.0℃ (+201℃ ～ +300℃)
Heat up time RT+20℃ ～ +300℃ 80min (no-load)
Control mode PID+SSR output

Interior

dimension

 W 1500 × H 1000 × D 1000 mm

Exterior

dimension

 about W 1900 × H 1825 × D 1316 mm ( not including the machine protruding part))
Door Silicone, double door
Materials:

interior material :SUS201# stainless steel；

External material: high-quality carbon steel

Insulation

materials:

 glass fiber.
Heater Fins radiator pipe shaped stainless steel electric heater
Temperature controller Korea imported thermostat ST-570
High precision (0.1%), high performance
Support multi imput (T / C, RTD, DCV)
Multi output and simultaneous output (Max 4 points)
Parameter operation is simple, the text can be set
Supports suppression of Overshoot function
Alarm output 1 point
Operation display of auxiliary output status
Input adjustment function for each zone (Max 4 Zone)
Control the heating and cooling functions
PID automatic adjustment function (AT Gain)
Supports multiple communication protocols (Modbus, etc
To achieve high quality, high reliability (CE, CUL, ISO, etc.)

Temperature

measurement

 K thermoelectric pairs
Work timer Digital timer type 1, range 0 to 9999min (after the temperature is
reached, timing starts, timing is completed, and
operation stops)
Sample holder Two stainless steel sample holder (adjustable height), 30kg/ply.

Protective

device

Over-temperature protection, motor overload protection, buzzer,

fault indicator, no fuse switch.
Accessory Power cord 3 meters.
Power supply AC 3ψ 4W 380V 50Hz (R, S, T, N+G ) (voltage fluctuation ≦ ±
10%).

Features

GB-2423．2-89(IEC68-2-2)Test B: High Temperature Test

GJB360．8-87(MIL-STD．202F) High Temperature Life Test

GBJl50．3(MIL-STD-810D) High Temperature Test

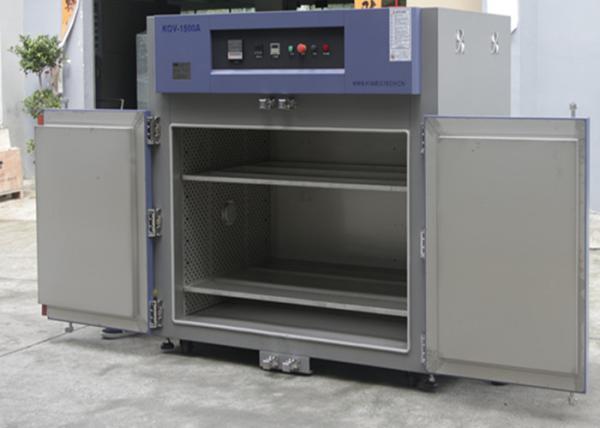

Meaningful picture

1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device

Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.
1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
Our Services

1,Pre-sales service

Before the purchase, our company will provide customers with detailed product-related information, and

welcome you to visit the company and check the goods.

2,After-sales service

After the completion of the transaction, our company will be arranged different after-sales service

according to the ease of the goods , and even arrange work engineers on-site service.

3,Warranty period

Our product warranty is 12 months and we are committed to responding within 48 hours of the problem,

providing a solution.

1500 L Double Door Glass Fiber Small Industrial Oven High Temperature With Protective Device
