64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing
64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing
64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing
64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing
64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing
64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing
64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing
64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing
Specifications
Brand Name :
KOMEG
Model Number :
KTS-64D
Certification :
CE approval
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
30 day after confirm the order
Packaging Details :
rigid foam and wooden box
High temperature exposure temperature range :
+60℃ ～ +150℃
Low temperature exposure temperature range :
-65℃ ～ -10℃
Preheating temperature up time :
-60℃～ +150℃ ≦5min
High and low temperature impact thermostat time :
30min above
Temp.uniformit :
±2.0℃
Power supply :
AC 3ψ4W 380V 50Hz (R, S, T, N plus ground) (voltage fluctuation ≦ ± 10%)
Description

64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing

Applications

The use of low temperature and high temperature thermal storage tank, according to the

need to open the DAMPER, achieve a rapid shock impact; balance temperature control system

(BTC), PID control SSPR, the system heat equal to the amount of heat loss so that can be

long-term stability usage.

Specifications

Main Technical Parameters:(Water Cooled,Water temperature+25℃,no load )
Temperature shock range High temperature exposure temperature range:+60℃ ～ +150℃
Low temperature exposure temperature range:-65℃ ～-10℃
High temperature preheating chamber temperature range +60℃ ～ +200℃
Preheating temperature up time +60℃ ～ +150℃ 5min
Low temperature storage chamber temperature range -75℃ ～ -10℃
Cooling temperature pull down time +20℃～ -55℃ within60min
Shock recovery time

-65℃ ～ +150℃ about 5min (Load 5kg electronic products or car parts)

(Sensor placed in the unit outlet)
High and low temperature impact thermostat time 30min above
Temp.uniformit ±2.0℃
Temp.fluctuation ±0.5℃
Structure
Workspace volume W 400 × H 400 × D 400 mm
Exterior size About W 1410× H 1930 × D 1900 mm (Not contain a prominent part)
Chamber Structure Independent product testing area, high temperature heat storage
area, low temperature storage area
Interior material (SUS 304#)
Exterior material Baked painting steel
Insulation material

High Temp.chamber:24k Glass fibre wool

Low Temp.chamber: PU Foam+Glass fibre wool
Heater Bare wire heater
Air circulation system a.TECO Motor
b.Stainless steel ext
c.(SIROCCO FAN)
Door Single door,
a .Flat embedded handl
B. Rear button:SUS 304
C. Silicone foam strip
Noise Measured at 1 meter from the machine, the noise is ≦70dB
Refrigeration System
Compressor German Bock semi-hermetic compressor or German semi-hermetic compressor
Refrigerant R404A/R23 ,safe and no ozone damage
Condenser Shell and tube condenser ( water cooled )
Evaporator High function fin type auto load adjusting and no frosting during long
time operating
Accessories High accuracy expansion valves, Oil Separator, drier are all top
international brands
Refrigerant Control Auto adjust energy output
Refrigeration
Technology		 Nitro protect welding, bi-stage vacuum bump to ensure clean and
stable inside the system
※Water collecting plate under compressor, drainage the waters out
of the chamber through pipe

Standards Met and Implemented:

GB/T2423.1.2

GB10592-89

GJB150

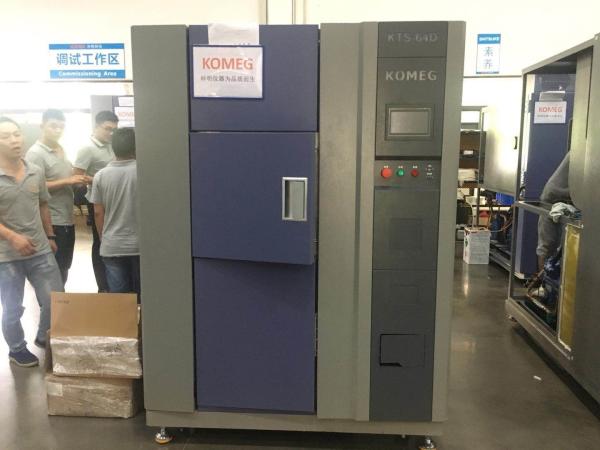

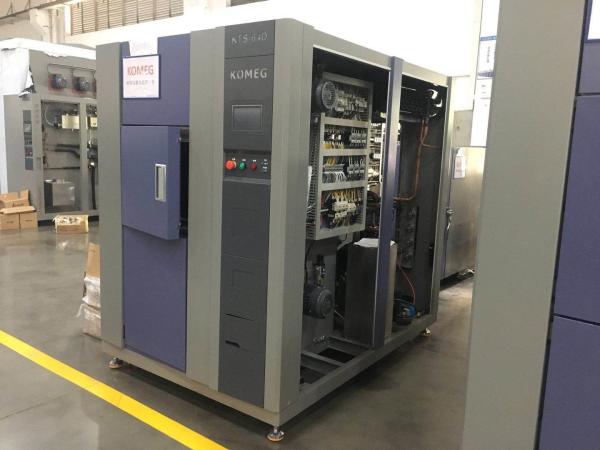

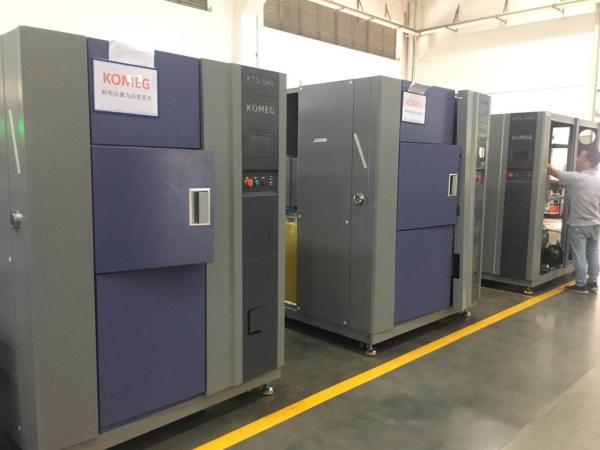

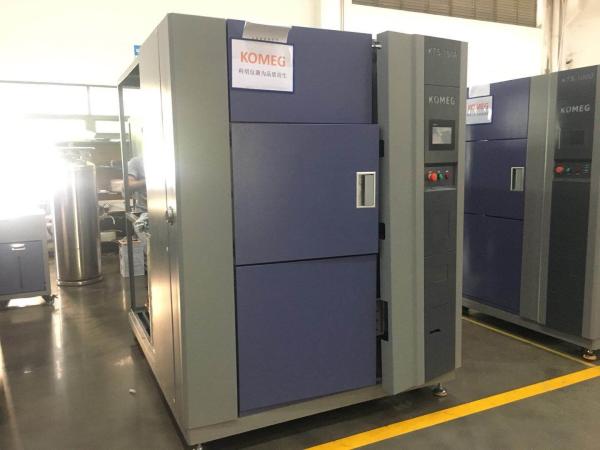

Prouduct Display

64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing

Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.
64L 3 Zone Thermal Shock Test Chamber For Reliability Destruction Testing
After-sales service

We deal with your complains within 24 hours.
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be
dedicated to provide high quality service and products for you.
