Single door stainless steel 225L Temperature And Humidity Test Chamber with Two explosion-protected chains

Overview

Able to accurately simulate a wide range of complicated natural environments, and is suitable for

reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental

testing equipment and test methods for the basic parameters of electric and electronic products under

the condition of humidity, low temperature, high temperature, and constant heat.

Application

Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical

appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research

institution, inspection and quarantine bureau, university etc.

Specifications

Ⅳ. Main Technical Parameters (performance: air-cooled, ambient temperature of +20C)

1,Temperature
1.1Temperature range -40℃ ～ +150℃
1.2Temp Deviation ≦±2.0℃
1.3Temp Constancy ±0.5℃
1.4Temp Uniformity ≦2.0℃
1.5Ramping
and soaking rate -40℃↑ +100℃ within 45 mins (no-load,ambient temperature +25°C)
+20℃↓-40℃ within 25 mins (no-load,ambient temperature +25°C)
2,Humidity
2.1Humidity range 20%R.H～98%R.H
2.2Control range

2.3Humidity deviation ±3.0％RH(＞75％RH)
±5.0％RH(≤75％RH)
2.4Humidity uniformity ±3.0％RH(no-load)
2.5Humidity deviation ±2.0％RH
3.Heat load Product weight 8kg, heat 300W (above -20°C)
The temperature and humidity performance test is based on the relevant regulations of the IEC60068-3 standard; the sensor is placed at the unit outlet.

Ⅴ,Chamber Structure
Overall structure and chamber was composed of three parts as below.
Insulation box, separate refrigeration units, and electrical control cabinet.
1.Chamber size Inside size: W 700 × H 700 × D 480 mm
Exterior size:Approximately W 900 × H 1735 × D 1500 mm
2.Insulation box ※ wall material: high-quality carbon steel with static color spray
inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
3.Door Single door, left open,Heating wire was installed at the door frames to prevent condensation at low temperatures.
Two explosion-protected chains are added on both sides of the box door. The chain is longer. When the box is opened, it can be opened a bit, letting Quick release of internal air pressure, but no pop.

4.Observation window With 1 set 210 × 270mm (width × height) observation window,Glass enclosed

stainless steel protective net, to prevent the explosion when flying glass (can not guarantee absolute

safety).

5.Lighting device LED Lighting devic *1 located on observation window.
6.Heating Quality nickel-chromium alloy wire electric heaters,
Non-contact control mode (SRR).
7.Humidifying Steam heating and humidification method;
Stainless steel sheathed heater;
Heater control: contactless control (SSR);
Water level control device, heater anti-dry device.
8.Water outlet hole Equipped with studio condensate and unit condensate drain holes.
9.Cable hole Φ100mm*2 located on both sides (each*1) with rubber stopper and plastic cover
10.Sample holder Two layers of stainless steel sample holder,Height adjustable,every holder could load 30KG.
11.Mobile Casters Mobile Casters *4 with foot cups.
12. Electric
control box Total power circuit breaker, over-temperature protection.
13. Water
supply system Water pump automatic supply.
14. Explosive pressure
Release device When the pressure in the equipment or pipeline exceeds the pressure of the safety valve, it will automatically open and relieve pressure
Equipped with: sensor switch, exhaust fan
Function:

a. When the test article in the box is exploded, there can be a pressure release pipe.
b. Protect test equipment from damage caused by sudden pressure changes.
c. Protection personnel.

Environmental test chamber Standard

● GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009(MIL-STD-810D) Low Temperature Test

● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test

● GB2423.4-2008(IEC68-2—30)Test Db: Damp Heat Alternative Test

● GJBl50.9-2009(MIL-STD-810D) Damp Heat Test

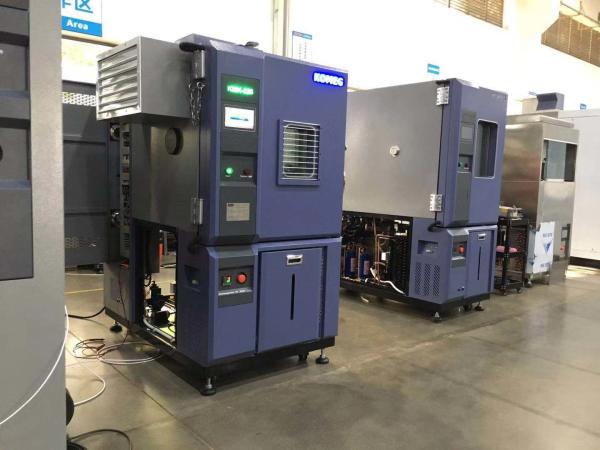

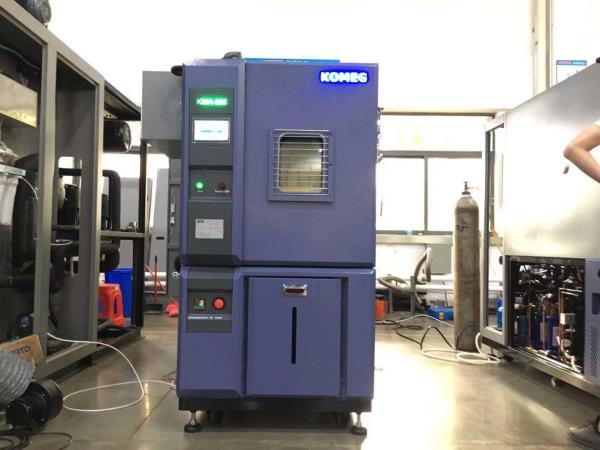

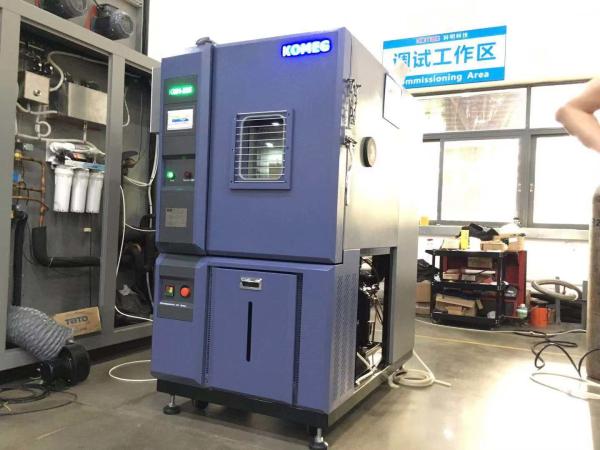

Prouduct Display
