Vertical Industrial High Temperature Drying Oven PID Controller
Vertical Industrial High Temperature Drying Oven PID Controller
Vertical Industrial High Temperature Drying Oven PID Controller
Vertical Industrial High Temperature Drying Oven PID Controller
Vertical Industrial High Temperature Drying Oven PID Controller
Vertical Industrial High Temperature Drying Oven PID Controller
Specifications
Brand Name :
komeg
Model Number :
KNO-240
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs /day
Delivery Time :
30 day after confirm the order
Packaging Details :
rigid poly foam and wooden box
Interior Size :
60W*65H*50D
Exterior Size :
90WX170HX64D
Temp Range :
50℃～200℃ Approx 50Min
Interior Material :
Stainless steel
Exterior Material :
Baked painting steel
Insulation Material :
Glass Wool
Description

240L Vertical Industrial High Temperature Drying Oven PID Controller Reliablility

Oem and ODM are welcome ,kindly contact: anna@komegtech.com

Application


Drying oven is widely applicable for drying and sterilization in fields of biochemistry, pharmacy,

medicine and health, agriculture and scientific research and environment protection. It is designed

specially for drying of material which is thermo-sensitive or decompounded and oxidative easily.

Specification

No-Oxidation Oven
SPECIFICATIONS

Note: We reserve the right to change specifications without prior notice
MODEL

Kov-240L
Temp. range

50°C ~ 250 °C
Temp. constancy

±1.0 °C
Temp. uniformity

±2.0℃ (+50℃ ～ +100℃)

±3.0℃ (+101℃ ～ +200℃)

±4.0℃ (+201℃ ～ +250℃)
Heat up time

±20 ~ + 250 °C about 90 Min
Interior dimension

W 500 × H 800× D 600 mm
Exterior dimensions

W 1300 × H 2080 × D 1150 mm
Interior material

Stainless steel
Exterior material

Baking painted steel
Insulation material

Glass wool
Safety devices

No Fuse Breaker, Over Temp. relay, ceramic fuse
Accessories

Recorder 30hr isolating layer *2, N2 or CO2 flow meter
Power AC220V±10% 1Φ 50Hz/60Hz

Temperature controller

Controller

Komeg technology programmable KM-5166 color LCD touch controller parameter

PID control

Display function

Temp and humidity setting (SV) The actual (PV) value is displayed directly;

Support executive program number, Paragraph, remaining time, number of cycles, running time display;

Program editing and graphical curve display;

Fixed point or program action status display;

7-inch resolution: 800 * 480, 65535 true color, LED backlight display screen.

Control resolution

Temp: + 0.01℃；Humidity: + 0.1%；time: 0.01min

Setting range

Temp Condition:–100～200 ℃；

According to the temperature of the chamer to adjust the working range (upper

limit +5 ℃, lower limit -5 ℃)

Humidity Condition:0～100 %RH

Operating mode

Programmable running, constant running

Program capacity

Running time up to 999999 h 59 m (also can be set to continue running without time limit);

Available program capacity: up to 269 groups, a total of 13450 paragraphs;

Usable memory capacity: 50 steps per group;

Repeatable commands: Up to 32000 cycles per command.

Communication Interface

RS-232,RS-485 and Ethernet.

Data collection and curve display when connected with a computer

Can be used as monitoring and remote control system

Multi machines synchronization control available

Installation and commissioning

1. Take care not to force on the glass during transportation, and do not hit the box.

2. After the equipment is grounded, it should be placed as smooth as the ground should be corrected.

3, please do not use the instrument in direct sunlight or hot and humid places.

4. This equipment should be far away from sources of electromagnetic interference, and should be

effectively grounded.

5. When the equipment is in normal operation, placing the contents in the box should not affect the air

circulation to ensure that the temperature inside the box is uniform.

6, the power supply is AC 220V 50HZ, must use more than 10A three-core socket, and there is a reliable

grounding line, shall not use a two-pin socket.

7. Don't press the power cable close to the back, and don't let the instrument or other items press on the

power cable to avoid damage to the power supply.

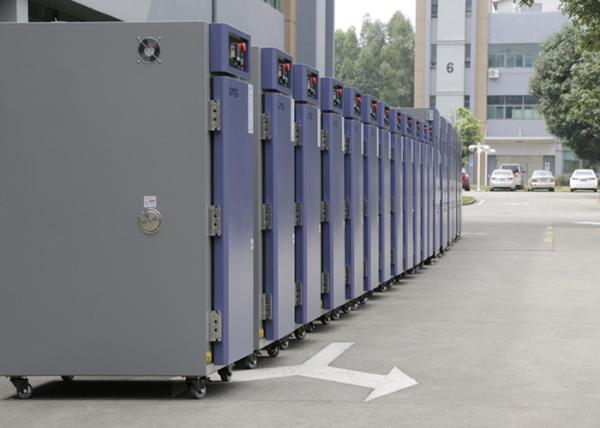

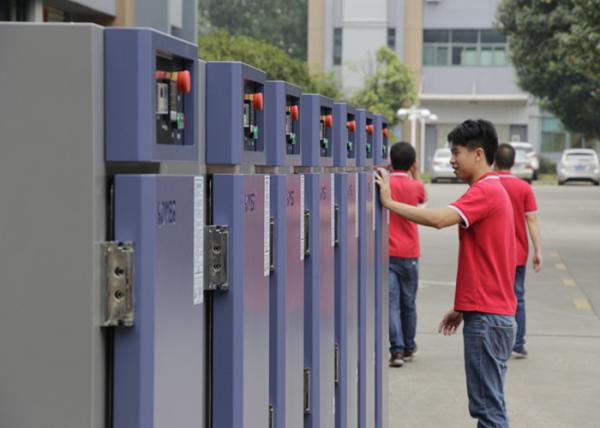

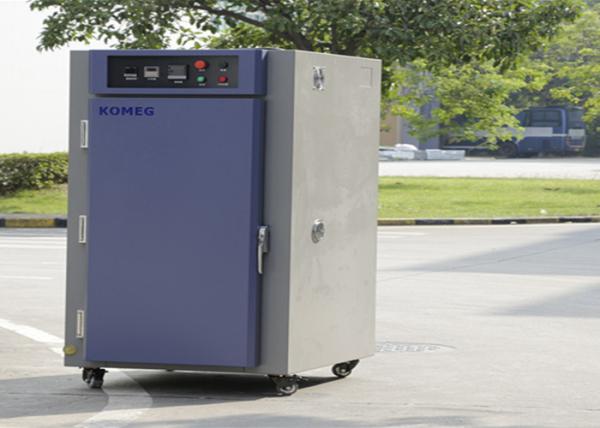

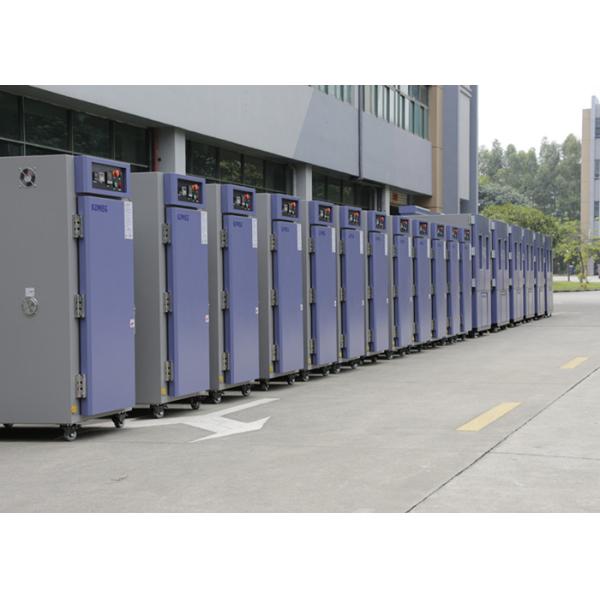

Photos show

Vertical Industrial High Temperature Drying Oven PID Controller
