64L Single Door Open Stainless Steel Humidity Temperature Chamber
64L Single Door Open Stainless Steel Humidity Temperature Chamber
64L Single Door Open Stainless Steel Humidity Temperature Chamber
64L Single Door Open Stainless Steel Humidity Temperature Chamber
64L Single Door Open Stainless Steel Humidity Temperature Chamber
64L Single Door Open Stainless Steel Humidity Temperature Chamber
64L Single Door Open Stainless Steel Humidity Temperature Chamber
64L Single Door Open Stainless Steel Humidity Temperature Chamber
Specifications
Brand Name :
KOMEG
Model Number :
KMH-64S
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Innner size :
W 400 × H 400 × D 400 mm
Outer size :
around W600 × H 1540 × D 1220 mm
Door :
Single door opened
Lighting device :
11W/AC220V *1 located on observation window
Mobile Casters :
Mobile Casters *4 with foot cups
Water supply system :
Water pump automatic supply
Description

64L Single door open stainless steel humidity temperature chambe

Product Overview

Able to accurately simulate a wide range of complicated natural environments, and is suitable for

reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental

testing equipment and test methods for the basic parameters of electric and electronic products under

the condition of humidity, low temperature, high temperature, and constant heat.

Application

Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical

appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research

institution, inspection and quarantine bureau, university etc..

Specifications

Temperature
Temperature range -70 ～ 150 ℃
Temp Deviation within ± 2.0℃
Temp Constancy within ±0.5 ℃
Temp Uniformity within ±2.0 ℃
Ramping and soaking rate

1) rise : within 60min (-70 ℃ → 150 ℃) Nonlinearity (RT+25’C, no load) The heating rate is 3’C/MIN

2) fall : within 80min (150 ℃ → -70 ℃) Nonlinearity (RT+25’C, no load) The cooling rate is 1-2’C/MIN
Humidity
Humidity range 10%R.H～98%R.H
Humidity range
Humidity deviation

±3.0％RH(＞75％RH)
Humidity fluctuation ±3.0％RH (no-load)
3Humidity uniformity ±2.5％RH
Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet.
Chamber Structure

Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.

Chamber Size

Innner size: W 400 × H 400 × D 400 mm

Outer size: around W600 × H 1540 × D 1220 mm
Insulation box

wall material: high-quality carbon steel with static color spray

inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
Door Single door opened, left side, add door frame to to prevent exposed at low temperature
Observation window With 1 sets 380 × 560mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively
Lighting device 11W/AC220V *1 located on observation window
Heater High quality nickel chromium alloy wire heater, contactless control mode (SSR)
7Humidifier

Water basin heating and humidification method;

Stainless steel armored heater;

Heater control mode: non-contact control mode (SSR);

Water level control device, heater anti-drying device
Condensate drain hole Equipped with the studio condensate water and the condensate drain hole
Cable port Φ100mm*2 located on both sides(each*1) with rubber stopper and plastic cover
Sample shelves Stainless steel sample shelves 2 layer adjustable height with 30kg/layer weight undertake
Mobile Casters Mobile Casters *4 with foot cups
Electric control box Total power circuit breaker, over-temperature protection.
Water supply system Water pump automatic supply

Environmental test chamber Standard

GB-2423．1-89(IEC68-2-1)Test A: Low Temperature Test

GB-2423．2-89(IEC68-2-2)Test B: High Temperature Test

GJB360．8-87(MIL-STD．202F) High Temperature Life Test

GBJl50．3(MIL-STD-810D) High Temperature Test

GJBl50．4(MIL-STD-810D) Low Temperature Test

GB2423．3-93(IEC68-2-3)Test Ca: Constant Heat Test

GB2423．4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test

GJBl50．9-93(MIL-STD-810D) Damp Heat Test

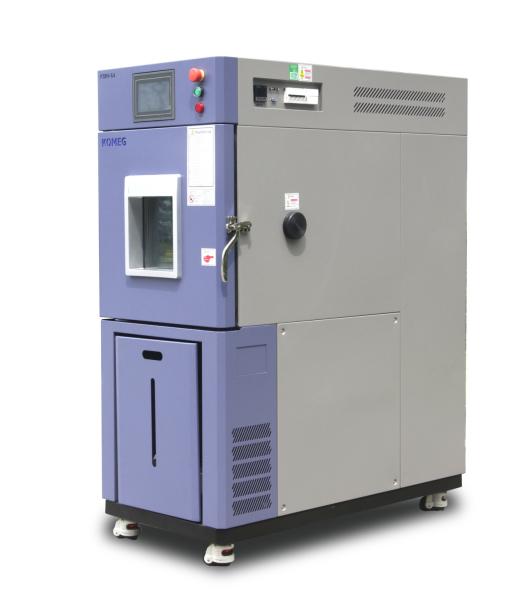

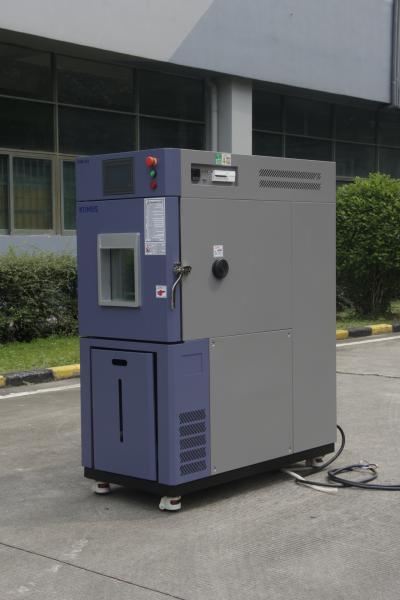

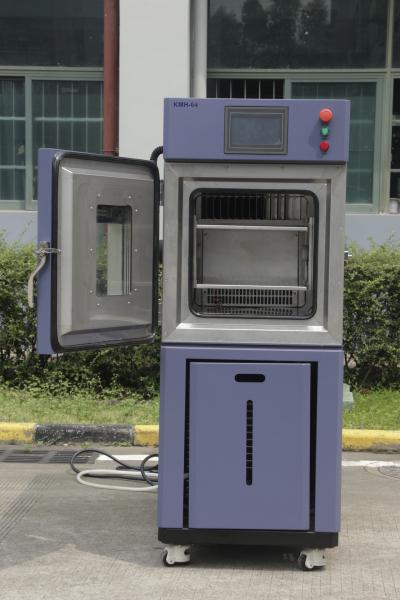

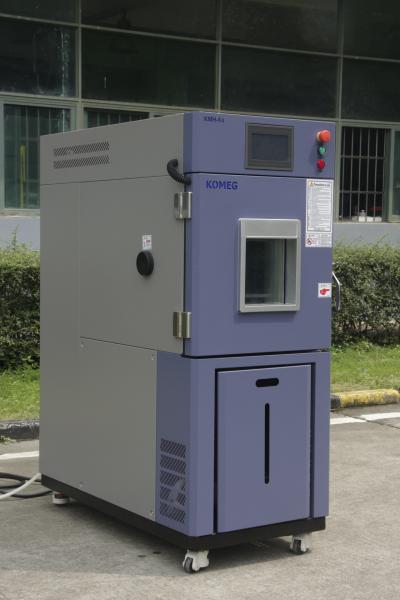

Prouduct Display

64L Single Door Open Stainless Steel Humidity Temperature Chamber

Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.
64L Single Door Open Stainless Steel Humidity Temperature Chamber
After-sales service

1) We deal with your complains within 24 hours.
2) Training how to install the machine, training how to use the machine.
3) Engineers available to service machinery overseas.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be
dedicated to provide high quality service and products for you.
