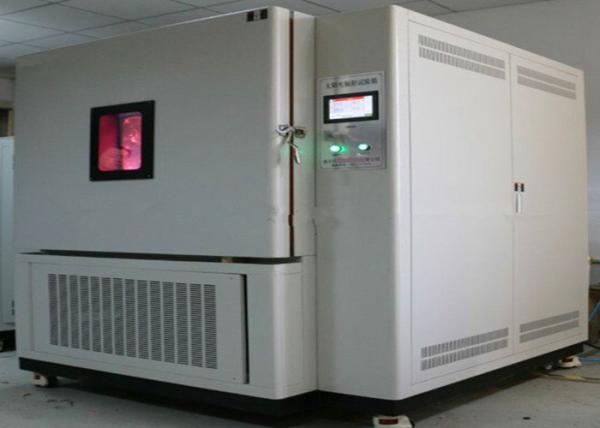

UV Xenon Lamp Weathering Aging Test Chamber For Auto Parts Plastic Fading Yellowing
UV Xenon Lamp Weathering Aging Test Chamber For Auto Parts Plastic Fading Yellowing
UV Xenon Lamp Weathering Aging Test Chamber For Auto Parts Plastic Fading Yellowing
UV Xenon Lamp Weathering Aging Test Chamber For Auto Parts Plastic Fading Yellowing
Specifications
Brand Name :
komeg
Model Number :
KMH-900
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs/day
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Temperature Range :
RT+10℃～70℃
Accuracy :
0.1 ℃ (display range)
Resolution: :
± 0.1 ℃
Radiation intensity resolution :
0.1W / ㎡
Temperature and humidity sensor :
Integrated temperature and humidity sensor
lElectrical control system :
with 7-inch color LCD touch screen controller
Description

UV Xenon Lamp Weathering Aging Test Chamber For Auto Parts Plastic Fading Yellowing

OEM &ODM are welcome ,more information ,pls kindly contact :anna@komegtech.com

Product Description

UV Xenon Aging Test Chamber ,The destruction of materials by the sunshine and moisture in nature creates an estimated annual economic loss. The damage caused mainly include fading, yellowing, discoloration, decreased strength, embrittlement, oxidation, decreased brightness, cracking, fading and chalking. The risk of light damage is greatest for products and materials that are exposed to sunlight directly or through glass windows. Long-term exposure to fluorescent, halogen or other light-emitting materials, the same will also be affected by photodegradation.


Main technical specification

Model

KMH-900

External dimension(mm)

800*800*800mm

Temperature range

RT+10℃～70℃

Humidity range

40～90% RH(no water spray during drying)

Temperature fluctuation

 ±0.5℃

Light adjustment

automatic dimming type

Hub diameter

750mm, speed: 1r / min

Blackboard temperature

63 ~ 100 ℃ ± 3 ℃

Other Techinical information

Xenon lamp source

6KW water-cooled lamp 1, a random spare

Black panel temp. fluctuation

±1℃

Wavelength

300 ~ 800nm

Light/Shower cycle

continuously adjustable

Test records

Automatically saved, USB export print

Temperature, humidity, irradiance

other functions are displayed in an interface operation

Power:

about 11KW

Exterior wall

elegant arc shape, A3 steel electrostatic spray

Interior wall:

SUS304 stainless steel plate
Door

A reasonable position of the door to set a transparent window (220 × 320mm)to observe changes in the indoor sample (with UV film), the observation window with multi-layer tempered glass

Low noise

Multi-wing axial fan strong air supply to avoid any dead ends, the test area can be evenly distributed temperature and humidity. Wind loop air return air design, wind pressure, wind speed are in line with test standards, and can make the door open temperature and humidity fast stabilization time

Test door and body

Adopt double high temperature silicone rubber seal

Refrigeration system

installed in the studio below, the compressor imported from France, "Taikang" brand
Heating system

Heating with far-infrared nickel-chromium alloy heating wire heating speed

Heating power

3KW

Site floor load-bearing capacity

not less than 600kg / m2

Temperature

5 ℃ ~ 30 ℃

Our Services

1) More than 28years manufacturer experience and 8 years export experience.

2) Acceptable customization for all kinds of special specification products.

3) We value very inquiry sent to us, ensure quick and competitive offer.

4) We put your order into our tight production schedule, ensure your punctual delivery time.

5) We are a sales team, with more than 4 years experience, more professional and reliable.

6) Welcome to view our factory at any moment.

Company Information

Since 1990,we went into the environmental test chambers industry. In 1990 we established our own factory,Dongguan Komeg Technology Co., Ltd., which has become an important manu-facturer of environmental friendly test chambers.

Our main products include Temperature Humidity Test Chamber, Thermal Shock Chamber, Walk in Stability Chamber, LCM(LAD)Aging Chamber, Hot Oven, Salt Spray Tester, Steam Aging Chamber, etc.
