Stainless Steel Large Capacity Walk-in Storage Chamber / Climatic Test Chamber 36CBM
Stainless Steel Large Capacity Walk-in Storage Chamber / Climatic Test Chamber 36CBM
Stainless Steel Large Capacity Walk-in Storage Chamber / Climatic Test Chamber 36CBM
Stainless Steel Large Capacity Walk-in Storage Chamber / Climatic Test Chamber 36CBM
Specifications
Brand Name :
komeg
Model Number :
KMH-
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs/day
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Temp range :
-40℃ ～ +150℃
capacity :
1500L
Interior Material :
SUS 304
System :
Balanced and humidity control System
safety devices :
No fuse breaker,over pressure
Packing :
Rigid foam and wooden box
Description
Stainless Steel Large Capacity Walk-in Storage Chamber /Climatic Test Chamber
OEM and ODM are welcome ,more information ,pls kindly contact :anna@komegtech.com
Description :

It is suitable for low temperature, high temperature, high and low temperature change, constant heat, high and low temperature alternating heat test. The size and function of the studio can be changed according to user requirements; Block type box body, elegant appearance; Scientific wind tunnel design can meet the needs of different customers;Adopt touch screen, PLC program controller.

Specification

Capacity(L) 36CBM
Temperature range

Max High temperature :80℃ ,120℃,Max Low Temperature :-60℃,-50℃,-40℃,-30℃,-10℃ ,0℃ (As per customer requirements)
Temp Uniformity ≦ ± 2.0℃
Temp Fluctuation ±0.5℃
Heat up rate

Heating up rate:from -20℃ ↑ +80℃ Nonlinear 2℃min no load
Humidity range 10% ,20%R.H,30%～95%R.H
Cooling rate

Cooling rate:from +20℃～-55℃ ,-40℃ ,-20℃,-10℃ Within 120 or 90 or 60Min

Chamber size

Interior size: W 700 × H 1250 × D 600 mm

Exterior size: W 1250 × H 1630× D 1800 mm ( not include the chamber highlights)
Load Product calorific value 1000w

Insulation box

Wall material: high-quality carbon steel

nner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
Other specification

Door

Double door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.

Observation window

With observation window(according to design), multi-hollow electric insulation coated glass prevent condensation effectively

Lighting device

LED Lighting device *1 located on observation window

Heater

High quality nickel-chromium alloy wire electric heaters,

Non-contact control mode(SSR)

Condensate drain hole

With workroom condensate and condensate drain.

Cable port

Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover

Shelf for samples

stainless steel sample holder 8pcs,Adjustable, load capacity 30kg/ layer

Feathers

1. It has wide temperature and humidity control range, which can meet the needs of users. It can achieve a safe and accurate temperature and humidity environment by adopting a unique and balanced temperature-regulating method.With stable and balanced heating and humidification performance, high precision and stable temperature and humidity control can be carried out.

2. According to the function requirement, the optional computer can be controlled remotely.

3. The inner door is equipped with a large observation window, which can be used to observe the test status of the test products.


Photos show

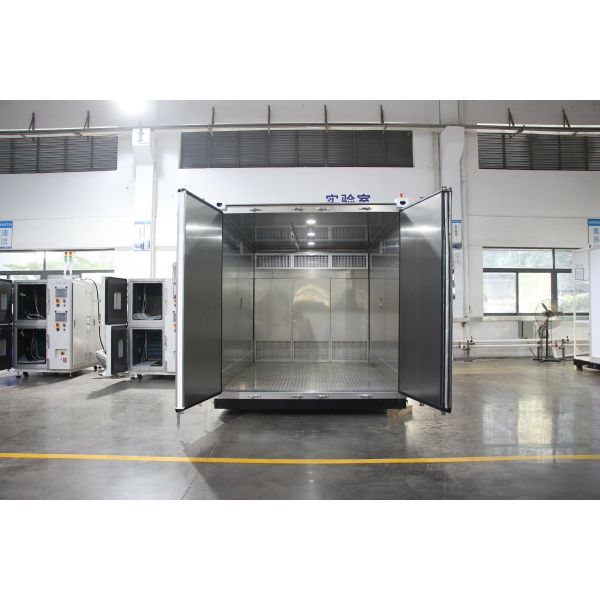

Stainless Steel Large Capacity Walk-in Storage Chamber / Climatic Test Chamber 36CBM

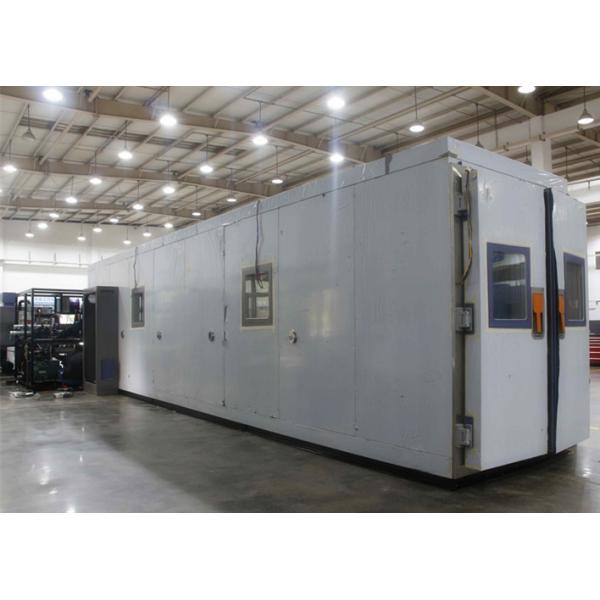

Stainless Steel Large Capacity Walk-in Storage Chamber / Climatic Test Chamber 36CBM
