Durable Climate Control Chamber Providing Rapid Changes Of Temperature And Humidity
Durable Climate Control Chamber Providing Rapid Changes Of Temperature And Humidity
Durable Climate Control Chamber Providing Rapid Changes Of Temperature And Humidity
Durable Climate Control Chamber Providing Rapid Changes Of Temperature And Humidity
Durable Climate Control Chamber Providing Rapid Changes Of Temperature And Humidity
Durable Climate Control Chamber Providing Rapid Changes Of Temperature And Humidity
Specifications
Brand Name :
komeg
Model Number :
KMH-225S
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs/day
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
Temp range :
-70℃ ～ +100℃
capacity :
different
Interior Material :
SUS 304
System :
Balanced and humidity control System
safety devices :
No fuse breaker,over pressure
Packing :
Rigid foam and wooden box
Description
Durable Climate Control Chamber Providing Rapid Changes Of Temperature And Humidity
OEM and ODM are welcome
Description :

The rapid temperature change test chamber is suitable for aerospace products, information electronic

instruments, materials, electrical, electronic products, various electronic components in the environment of

rapid changes in high temperature and low temperature, and to test their performance indicators.

Specification

Capacity(L)

225L , 408L , 1000L

Temperature range

-70℃ ～ +100℃(Linear temperature change during -55℃～ +85℃)

70℃ ～ +100℃(Linear temperature change during -40℃～ +85℃)
Temp Uniformity

≦ ± 2.0℃
Temp Fluctuation ±0.5℃
Temperature change rate

Average 3℃/min Average 5℃/min Average :10℃/min Average :15℃/min

Average 20℃/min ( You can choose any one )
Humidity range

10% ,20%R.H,30%～95%R.H (As your requirements )

Interior material

Stainless steel (SUS 304 )

Chamber size

Interior size for 225L: W 700x H700x D 460 mm

Interior size for 408L: W 700x H750 x D 800mm

Interior size for 1000L: W 1000x H 1000 x D 1000mm(Can be produce as your requirements )

Power

AC 3ψ4W 380V 50Hz (R, S, T, N plus ground) (voltage fluctuation ≦ ± 10%)

Insulation Material
Rigid polyurethane foam
Other specification

Door

Double door, left open. Heating wire was installed at the door frames to prevent

condensation at low temperatures.

Observation window

With observation window(according to design), multi-hollow electric insulation

coated glass prevent condensation effectively

Lighting device

LED Lighting device *1 located on observation window

Heater

High quality nickel-chromium alloy wire electric heaters,

Non-contact control mode(SSR)

Condensate drain hole

With workroom condensate and condensate drain.

Cable port

Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover

Surroundings Environmental

Ambient temp. and humidity operating promise Environmental Temp Range : 5〜35℃,Relatively Humidity:≦85%RH

Feathers

1 The entire cabinet is of integral construction. Box structure


2 The inside of the box is made of 1.0mm imported SUS304B stainless steel plate, the outer side is sprayed

with 1.0mm cold-rolled steel plate, and the insulation material is made of ultra-fine glass insulation cotton.


3 The door seal is made of double-layer silicone rubber sealing material.


4 The observation window is a multi-layer conductive film tempered insulating glass with a size of

350×500mm to prevent frosting of the glass at low temperature. The special built-in special safety voltage

heating wire surrounds the heating belt with a supply voltage of 36V, and is equipped with an illumination

lamp for observation. Provide lighting.


5 There is a φ50mm test hole with a plug on the side of the box. The plug material is low foaming of silicone

rubber, which can withstand high and low temperature, and has thermal insulation performance.


6 An air conditioning cabinet is installed on the rear side of the cabinet studio, and humidifiers, evaporators,

electric heaters, fans, fan volutes, etc. are installed between them.


7 The temperature sensor is placed at the air outlet.

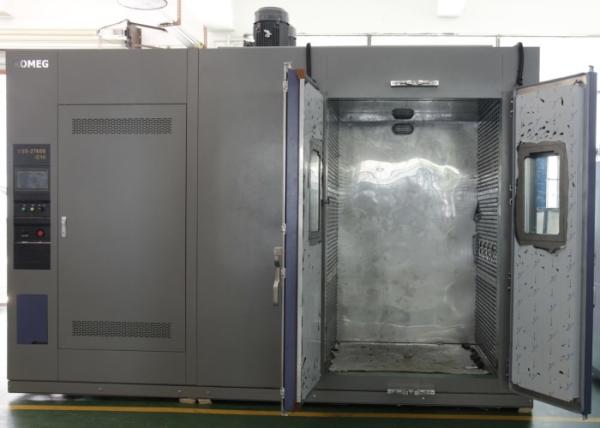

Photos show
