300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
Specifications
Brand Name :
KOMEG
Model Number :
KTS-300B
Certification :
CE approval
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
35 working days after received 60% deposit
Packaging Details :
Packed in carton firstly, and then reinforced with plywood case for outer packing
High Temperature :
-70℃ ～ -10℃
Low Temperature :
-55℃ ～ -10℃
Shock recovery time :
-55℃ ～ +150℃ about 5min (with load IC 15kg)
Temperature :
±0.5℃
Temp Range :
+15℃ ～ +50℃
Description

300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller

Applications

The use of low temperature and high temperature thermal storage tank, according to the

need to open the DAMPER, achieve a rapid shock impact; balance temperature control system

(BTC), PID control SSPR, the system heat equal to the amount of heat loss so that can be

long-term stability usage.

Specifications

Ⅱ. Main Technical Parameters:(Water Cooled,Water temperature+25℃,no load )
1. High Temperature
Cabinet		 +60℃ ～ +150℃
2. Low Temperature
Cabinet		 -55℃ ～ -10℃
3. High Temperature
Cabinet setting range		 +60 ～ +200℃
4. High Temperature
Cabinet setting range		 -70℃ ～ -10℃
5. Low Temp.chamber pull down time From +20℃ ～ -70℃ 60min
6. Shock recovery time

-55℃ ～ +150℃ about 5min (with load IC 15kg)
( Sensor placed in the unit outlet)
7. High and low
temperature shock
constant temperature		 Above 30min

8. Temperature
fluctuation

 ±0.5℃
9. Temperature
deviation		 ±2.0℃
Ⅲ. Structure
1. Workspace volume W 800 × H 460 × D 815 mm

2.Exterior size

 Approx W 1810 × H 1980 × D 2335 mm
3. Chamber Structure Independent product testing area, high temperature heat storage
area, low temperature storage area.
4. Interior material (SUS 304#)
5.Exterior material
Baked painting steel
6. Insulation material

High Temp.chamber:24k Glass fibre wool

Low Temp.chamber: PU Foam+Glass fibre wool
7. Heater

Bare wire heater
8. Air circulation system a.TECO Motor
b.Stainless steel ext
c.(SIROCCO FAN)
9.Door Single door,
a .Flat embedded handl
B. Rear button:SUS 304
C. Silicone foam strip

Standards Met and Implemented:

GB/T2423.1.2

GB10592-89

GJB150

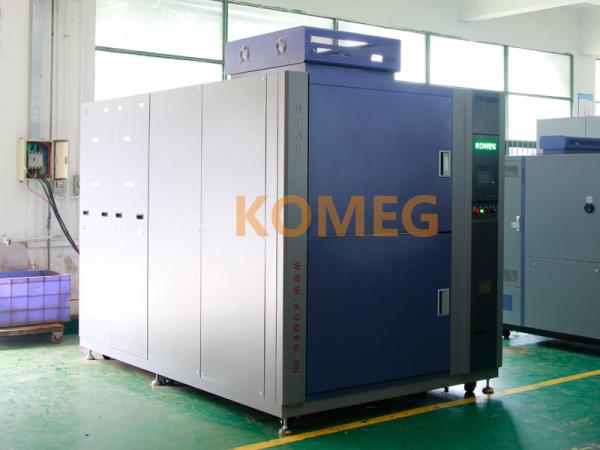

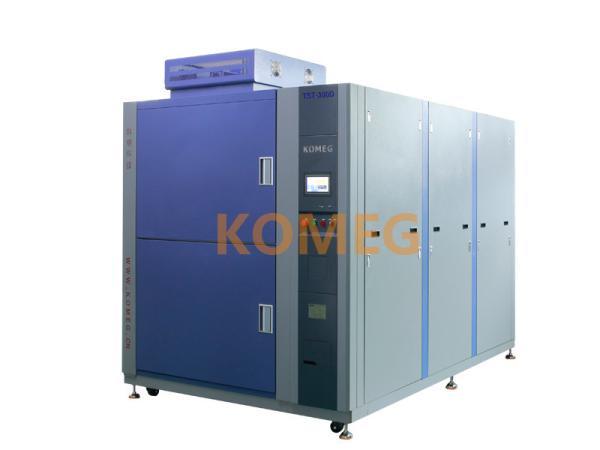

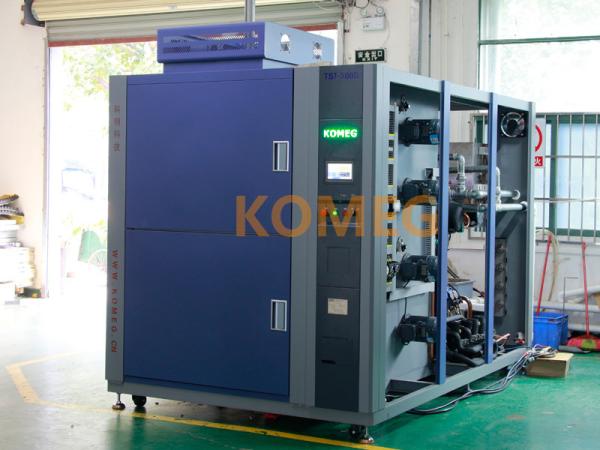

Prouduct Display

300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller

Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.
300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
After-sales service

We deal with your complains within 24 hours.
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be
dedicated to provide high quality service and products for you.
