Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
Specifications
Brand Name :
KOMEG
Model Number :
KST-150D
Certification :
CE approval
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1, 000~1, 500 SETS / YEAR
Delivery Time :
30 day after confirm the order
Packaging Details :
rigid foam and wooden box
Laboratory temperature range :
-65℃ ～ +150℃
High Temp.chamber :
+60 ～ +200℃
High temp.chamber heat up time :
From +60℃ ～ +200℃ 20min
Low Temp.chamber :
-80℃ ～ -10℃
Low Temp.chamber pull down time :
From +20℃ ～ -70℃ 60min
Shock recovery time :
-65℃ ～ +150℃ about 5min (with load IC 5kg) （Sensor placed in the unit outlet）
Description

Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃

Applications

Use low temperature and high temperature cold storage heat storage tank to open DAMPER according to

the action to achieve rapid impact effect; balance temperature control system (BTC), control SSPR in

P.I.D. mode, so that the heating amount of the system is equal to the heat loss, so it can be used stably

for a long time.

Specifications

Ⅱ. Main Technical Parameters:(Water Cooled,Water temperature+25℃,no load )
1. Laboratory temperature range -65℃ ～ +150℃
2. High Temp.chamber +60 ～ +200℃
3. High temp.chamber heat up time From +60℃ ～ +200℃ 20min
4. Low Temp.chamber -80℃ ～ -10℃
5. Low Temp.chamber pull down time From +20℃ ～ -70℃ 60min
6. Shock recovery time

-65℃ ～ +150℃ about 5min (with load IC 5kg)

(Sensor placed in the unit outlet)
7. High and low
temperature shock
constant temperature		 Above 30min

8. Temp.uniformit

 ±2.0℃
9. Temp.fluctuation ±0.5℃
Ⅲ. Structure
1. Workspace volume W 600 × H 500 × D 500 mm

2.Exterior size

 About W 1620 × H 2040 × D 2100 mm (Not contain a prominent part)
3. Chamber Structure Independent product testing area, high temperature heat storage
area, low temperature storage area
4. Interior material (SUS 304#)
5.Exterior material
Baked painting steel
6. Insulation material

High Temp.chamber:24k Glass fibre wool

Low Temp.chamber: PU Foam+Glass fibre wool
7. Heater

Bare wire heater
8. Air circulation system a.TECO Motor
b.Stainless steel ext
c.(SIROCCO FAN)
9.Door Single door,
a .Flat embedded handl
B. Rear button:SUS 304
C. Silicone foam strip

Standards Met and Implemented:

GB/T2423.1.2

GB10592-89

GJB150

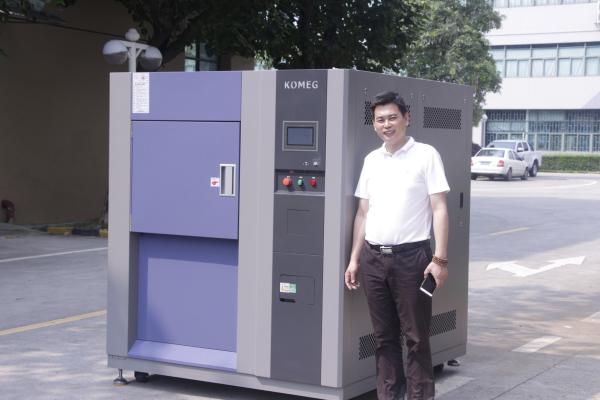

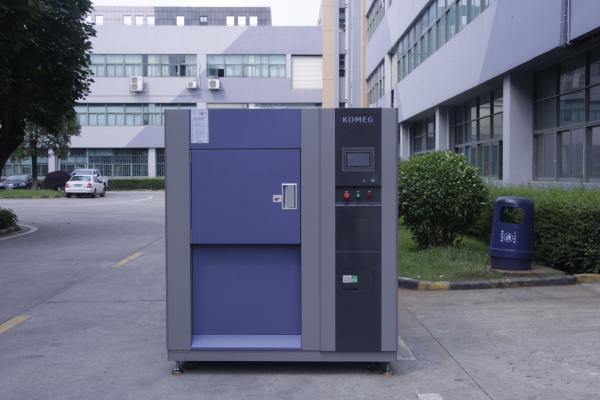

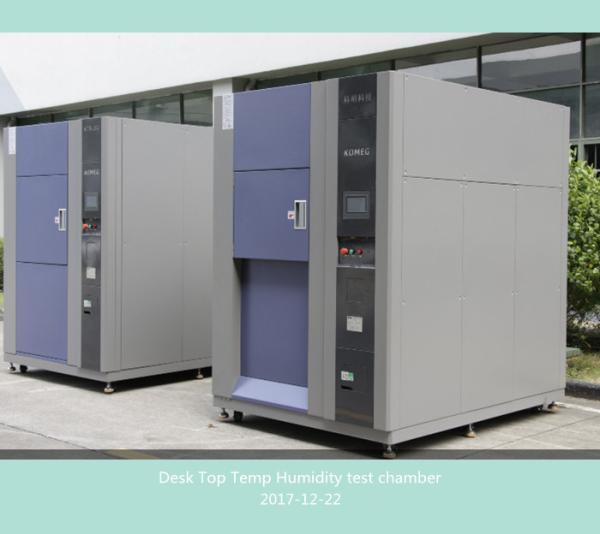

Prouduct Display

Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃

Packing and Shipment:

(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.
Laboratory 150L Thermal Shock Test Chamber Temperature Range -65℃ ～ +150℃
After-sales service

We deal with your complains within 24 hours.
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be
dedicated to provide high quality service and products for you.
