High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7 LCD Toch Panel
High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7 LCD Toch Panel
High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7 LCD Toch Panel
High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7 LCD Toch Panel
High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7 LCD Toch Panel
High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7 LCD Toch Panel
High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7 LCD Toch Panel
High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7 LCD Toch Panel
Specifications
Brand Name :
KOMEG
Model Number :
KTS-150D
Certification :
CE ,ISO
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
30 days after confirm the order
Packaging Details :
Rigid foam and wooden box
High temperature setting :
+60℃ ～ +200℃
Interior Material :
SUS 304
Low temperature setting :
-80℃ ～ -10℃
Compressor :
Semi-Hermetic Compressor
Condenser :
Water-cooled
Insulation material :
Rigid polyurethane foam+glass fibre wool
Description

High temp chamber :+60℃ ～ +200℃ 150L 3-Zone thermal shock chamber with 7"LCD toch panel

Prouduct Application

3 zones Themral Shock Test Equipment is used to test the bearing extent of the material structures and

composite material in an instant and continuous high temperature and extremely low temperature

environment, can used to test its thermal expansion and contraction caused by chemical change or

physical harm in the shortest time, are widely applied for metal, plastic, rubber, electronics and other

materials and it can be used as an important reference for improving product quality.

Main features of Thermal test chamber:


Direct-drive system for reliable transfer between zones

Compact design with integrated mechanical refrigeration

Two specimen baskets

Includes caster and leveling pads for easy movement

Designed for performance with maximum load

Prouduct Specifications

Model KTS-150D
Temp.range High Temp.chamber +60℃ ～ +200℃
pre-heat time +60 ℃~+200 ℃ Within 20 Min
Low Temp.chamber -80℃ ～ -10℃
pre-cooling time +20℃~-70 ℃ Within 60 Min
Test.chamber -65℃~+150 ℃
Recovery time Exposure 30 min
Exposure 30 min
Within 5 min
Test weight(kg) 5
Inside Dimension (mm) W 600
H 500
D 500
Outer Dimension (mm) W 1620
H 2150
D 2300
Interior material Stainless Steel Plate(SUS304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fibre wool
Refrigeration system Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant
Controllor Panel Operation model Memory capacity Accuracy Input Comm.port LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option)
Safety Devices No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector.
Standard Accessories Shelvesw*2,cable port(portØ50mm)*1
Ambient Temp +5℃~+35℃
Power AC380±10%50Hz 3phase 4 wires+Groud Wires

Feathers

● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.5-1986 Temperature Shock Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test

● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test

● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test

● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

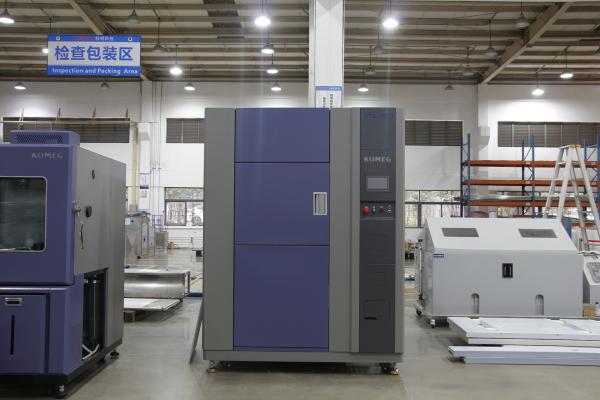

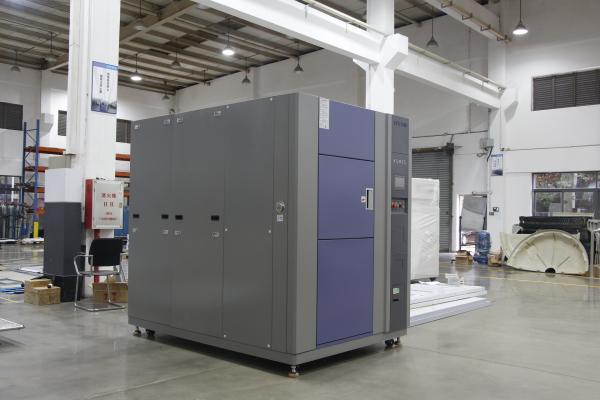

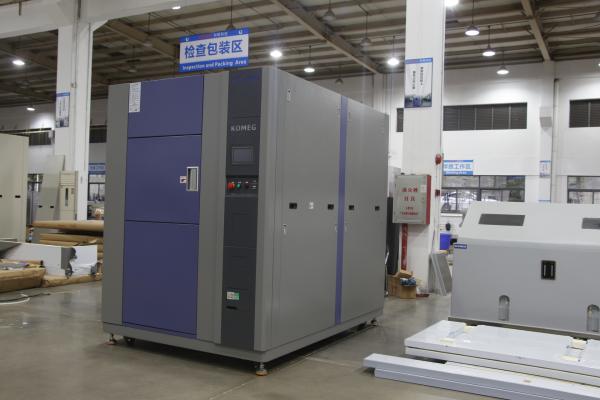

Prouduct Display

High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7

Packing and Shipment:

(1). Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
High Temp Climatic Test Chamber 150L 3 Zone Thermal Shock Chamber 7
Pre-sales service

1) More than 20 years manufacturer experience and 8 years export experience.
2) Acceptable customization for all kinds of special specification products.
3) We value very inquiry sent to us, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 4 years experience, more professional and reliable.
6) Welcome to view our factory at any moment .
After-sales service

1) We deal with your complains within 24 hours.
2) Training how to install the machine, training how to use the machine.
3) Engineers available to service machinery overseas.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be
dedicated to provide high quality service and products for you.
