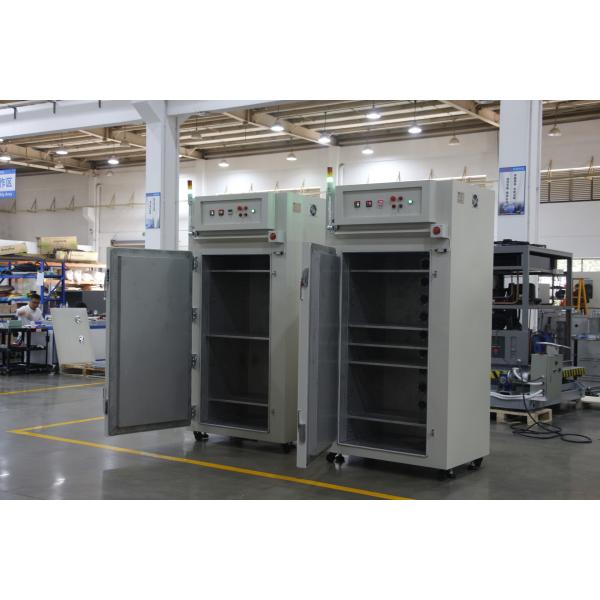

Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Large Capacity Stainless Industrial Curing Oven , Vacuum Drying Oven For Heating Test
Specifications
Brand Name :
KOMEG
Model Number :
KOV-800
Certification :
CE
Place of Origin :
GUANGDONG CHINA
MOQ :
1 piece Industrial Drying Ovens
Price :
USD1000-USD20000/ piece Industrial Drying Ovens
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000 pieces a year Industrial Drying Ovens
Delivery Time :
35 days upon your deposit
Packaging Details :
Strong Plywood Case, Meet International Standard
produce name :
Industrial Drying Ovens
Usage :
high temperature testing
Temp. Range :
50℃～300℃
Temp. Constancy :
±1.0℃
Temp. Uniformity :
±2.0℃
Volume :
800 liter
Warranty :
1 Years
Safety devices :
NFB, Over Temp. reley, fuse
Description

Large Capacity Stainless Industrial Drying Ovens For Heating Test

Industrial Drying Ovens:

The oven is suitable for the drying, baking in industrial, medical and research institutes. schools, medicines and other research institutes conduct dry roasting, disinfection, heat preservation, and heat treatment tests on non-combustible articles. They are arbitrarily set at constant temperature, simple in operation, accurate in temperature control, and have an ultra-high temperature oven series. The maximum temperature can be Up to 500°C.

Specification


specifications
Model KOV-600 KOV-720 KOV-1000 KOV-1800
Interior size (W*H*D)mm 1000*1000*600 900*1000*800 1000*1000*1000 1600*1400*600
Exterior size (W*H*D)mm 1360*1720*880 1300*1750*1000 1300*1750*1000 1600*1940*1200
Capacity(KVA) 6.5 7.5 8.5 9.5
Power AC 380V±10% 3Φ4wire 50Hz/60Hz
Temp. range 50 ºC~ 200 ºC( 300 ºC)
Temp. constancy ±1.0 ºC
Temp. uniformity ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)
Heat up time 50 ºC to 200 ºC within 50 min
Interior material Stainless steel plate
Exterior material Painted Stainless steel plate
Insulation material Glass wool
Safety devices No fuse breaker, over temp protection, ceramic fuse
Accessories Recorder, insolating layer
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations

South Korea imported thermostat controller ST-570

* Achieve high accuracy (0.1%), high-performance

* High resolution (0.1%), high performance

* Support multi-input (T / C, RTD, DCV)

* Can complete simultaneously output multiple output (Max 4 points)

* Simple parameter setting, text available

* Support suppression system (Overshoot) temperature function

* Alarm output 1 point

* RUN/STOP performance

* Default operation start and termination functions

* Operation screen displays of the auxiliary output status

* Each interval input adjustment function (Max 4 Zone)

*Achieve control of heating, cooling function

* PID auto-adjustment function (AT Gain)

* Support for multiple communication protocols (Modbus, etc.)

* Achieve high-quality, high reliability (CE, CUL, ISO, etc.)

Our service

After-sale Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.

Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
