Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
Specifications
Brand Name :
komeg
Model Number :
KOV-200
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs /day
Delivery Time :
30 day after confirm the order
Packaging Details :
rigid poly foam and wooden box
Interior Size :
w 600 x H 600 x D 600 cm
Exterior Size :
W 960 × H 1360 ×D 800 mm
Temp Range :
50℃～200℃ Approx 50 Min ( no load )
Interior Material :
Stainless steel
Exterior Material :
Baked painting steel
Heating Method :
PID+S.S.R
Description

High Temperature Precise Drying Chamber Hot Air Circulating Drying Oven For Industrial

OEM and ODM are welcome ,kindly contact: anna@komegtech.com

Application

The chamber is applicable to the reliability test/production of industrial products. It has the characteristics of

temperature control accuracy and wide control range. The performance index complies with

GB5170.2.3.5.6-95 "High-Temperature Test Equipment for Basic Parameters Verification of Electrical and

Electronic Products Environmental Testing Equipment.

Ⅱ. Specifications
1.Air supply mode

Forced air circulation
2.Temperature Range

+20℃ ～ +220℃
3. Temp fluctuation

±0.5℃
4. Temp Uniformity

±2.0℃ (RT+20℃ ～ +100℃)

±3.0℃ (+101℃ ～ +200℃)

±4.0℃ (+201℃ ～ +220℃)
5. Heat up time

RT ～ + 220℃ 50min (no-load)
6. Control mode

PID+SSR output
7. Interior dimension

W600 × H 600 × D 600 mm
8. Exterior dimension

about W 960×H 1360 ×D 800 mm

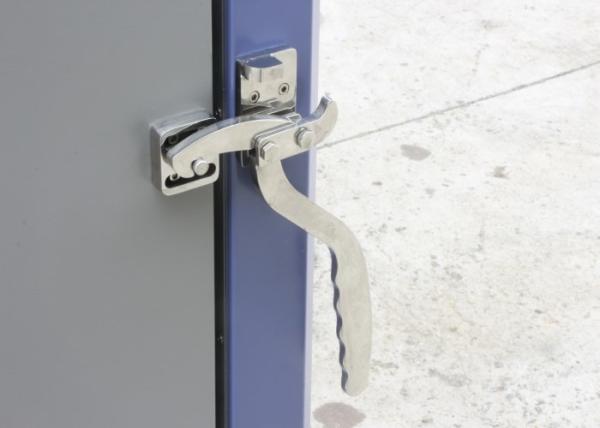

9. Door

Silicone, single door
10. Materials:

interior material :SUS201# stainless steel；

External material: high-quality carbon steel
11.Insulation materials:

glass fiber.
12. Heater

Fins radiator pipe shaped stainless steel electric heater
13.Temperature controller

Korea imported thermostat ST-570

* High precision (0.1%), high performance

* Support multi imput (T / C, RTD, DCV)

* Multi output and simultaneous output (Max 4 points)

* Parameter operation is simple, the text can be set

* Supports suppression of Overshoot function

* Alarm output 1 point

* Operation display of auxiliary output status

* Input adjustment function for each zone (Max 4 Zone)

* Control the heating and cooling functions

* PID automatic adjustment function (AT Gain)

* Supports multiple communication protocols (Modbus, etc.)

* To achieve high quality, high reliability (CE, CUL, ISO, etc.)
14.Temperature measurement

K thermoelectric pairs
15. Work timer

Digital timer type 1, range 0 to 9999min (after the temperature is

reached, timing starts, timing is completed, and operation stops)
16.Frame material

Two stainless steel partitions (adjustable height), 30kg/ply.
17. Protective device

Over-temperature protection, motor overload protection, buzzer, fault

indicator, no fuse switch.
18. Accessory

Power cord 3 meters

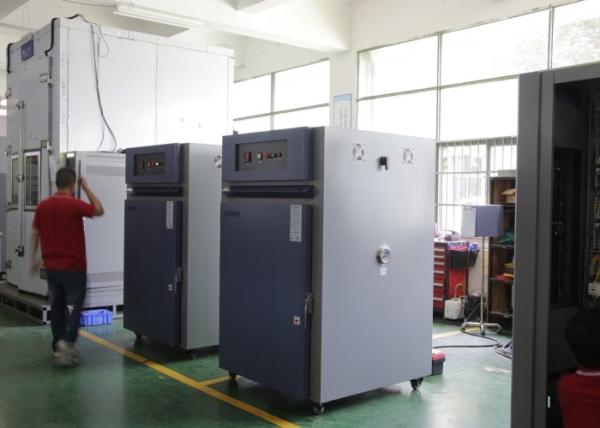

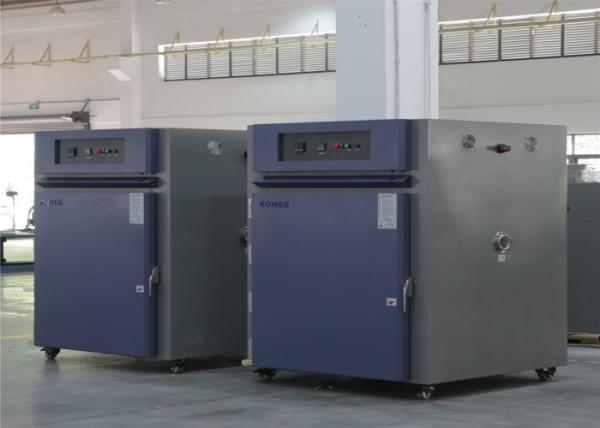

Photos show

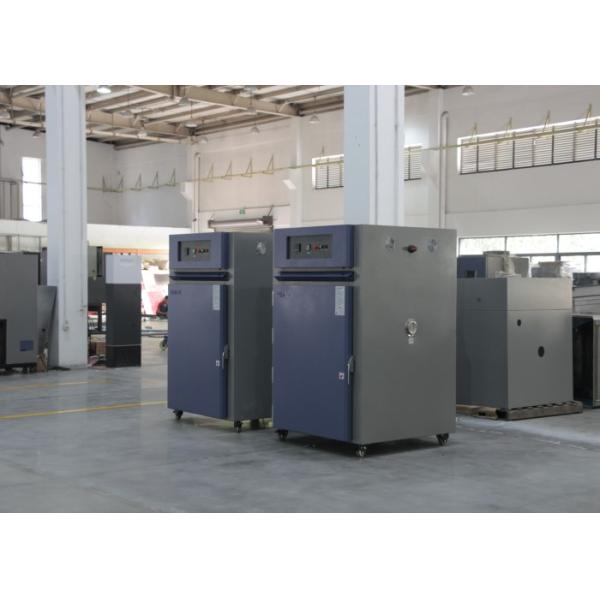

Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
