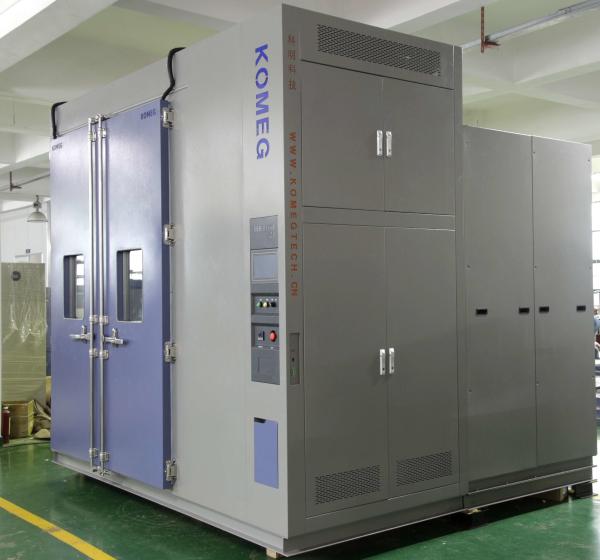

5000L Environmental Stress Screening ESS Chamber with Semi Hermetic Compressor
5000L Environmental Stress Screening ESS Chamber with Semi Hermetic Compressor
5000L Environmental Stress Screening ESS Chamber with Semi Hermetic Compressor
5000L Environmental Stress Screening ESS Chamber with Semi Hermetic Compressor
Specifications
Brand Name :
KOMEG
Model Number :
ESS-1000SL15
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 SETS /YEAR
Delivery Time :
30 days upon on your deposit
Packaging Details :
Strong Plywood Case
Product Name :
Repid Temp Change Chamber
Application :
Reliability Testing, Research & Development Testing, Failure Analysis
Working Chamber Volume :
5000L
Power Source :
AC380V
Cooling Mode :
Water Cooled
Compressor :
Semi-Hermetic Compressor
Heater :
Iron-chrome wire heater
Controllor :
Touch screen programmable controllor
Testing :
Reliability test
Description

5000L Environmental Stress Screening ESS Chamber

1. Advantages of Temperature Cycling:

Rapid temperature test chamber

The product is suitable for electronic elements of safety performance test provide reliability test, rapid temperature test box product screening test, etc., at the same time, through this equipment test, can improve the reliability of products and product quality control.

2. Standards Implemented and Met

1. GB11158 temperature Chambers technical conditions

2. GB10589-89 Chambers cryogenic technology

3. GB10592-89 Chambers technology high and low temperature conditions

4. GB/T2423.1-2001 hypothermia Chambers Test Method

5. GB/T2423.2-2001 temperature changes Test Method
6. GB/T2423.3-93 hot and humid Chambers Test Method
7. GB/T2423.4-93 alternating temperature testing machine

8. GB/T2423.22-2001 temperature testing method
9. IEC60068-2-1.1990 low temperature Chambers Test Method

10. IEC60068-2-2.1974 high temperature Chambers Test Method

11. GJB150.3 High Temperature Test

12. GJB150.4 Low Temperature Test

13. GJB150.9 Damp Heat Test

3. Specifications

Model ESS-SL
1000SL15
Working Chamber Volume(L) 1000L
Temp Rate of Change( ºC /Min) 15 ºC /Min
Temperature Range -70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control)
Humidity Constancy ±0.5 ºC
Temp Constancy ±3.0 ºC
Exterior Material Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel
Interior Material Stainless Steel Plate(SUS 304)
Insulation Material Rigid Polyurethane Foam
Safety Devices over pressure,over heat and over current protection for compressor, over temp. protection,
Compressor Semi-Hermetic Compressor
Cooling Mode Water Cooled
Control system Balanced Temperature & Humidity Control System(BTC type)
Heater Iron-chrome wire heater
Blower Centrifugal Blower
Observation Window Glass incorporating heat generator
Temp Sensor Pt-100
Controller Touch screen programmable controller
Ambient Temp. +5ºC~+35ºC
Power AC 380V/50Hz 3phase 5 wires+ Ground wire
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available

4. Applications:

4.1 A. Who want his products more reliable in different environmental conditions
B. Who plan to make the world a better place with his high quality and reliability products

4.2 Location: Lab, testing center,

4.3 Note:

Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test(ESS)

5000L Environmental Stress Screening ESS Chamber with Semi Hermetic Compressor

5. Material:

Interior material: Stainless Steel Plate SUS304#

Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#

Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
