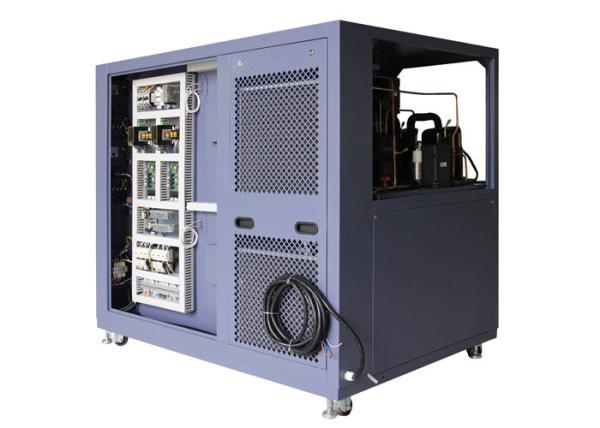

Programmable Temperature Test Chamber Imported LED Digital Display For Electronic
Programmable Temperature Test Chamber Imported LED Digital Display For Electronic
Programmable Temperature Test Chamber Imported LED Digital Display For Electronic
Programmable Temperature Test Chamber Imported LED Digital Display For Electronic
Specifications
Brand Name :
SANWOOD
Model Number :
SM Series
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Temperature control range :
-70℃～180℃
Temperature fluctuation :
±0.5℃
Cooling rate :
180.0℃～-70.0℃ Within 100 mins 1.0～3.0℃/min
Heating rate :
-70.0℃～180.0℃ Within 60 mins 3.0～5.0℃/min
Internal material :
Adopts 1.2mm thickness stainess steel(SUS304)
External material :
Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying
Description

NewProgrammable High and Low Temperatue Testing Chamber for Electronic

Usage:High/low Temperature Test Chamber mainly used in aerospace, information and electronic fields. This equipment is applied to test environmental adaptability and reliability of instruments or meters, electrical products, materials, spare parts and equipment when they are in high, low temperature or low pressure these three condition separately or simultaneously. Meanwhile, it can also test electrical performance parameters of the test specimens after switching on the current.

Model SM-101 SM-225 SM-504 SM-800 SM-1000
Dimension of working room(mm) 450*450*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000
Overall Dimension(mm) 1200*1000*1650 1300*1150*1900 1450*1400*2100 1550*1600*2250 1850*1600*2250
Volume(L) 101 225 504 800 1000
Temperature Range A:-20°C~150°C B:-40°C~150°C C:-60°C~150°C D:-70°C~150°C
Volatility/ Uniformity ≤0.5°C/≤2°C
Temperature Increase Rate 1.0~3.0°C/min
Temperature Decrease Rate 0.7~1.0°C/min
Controller Imported LED digital display PID + SSR microcomputer integrated controller
Accuracy Range Setting accuracy :Temperature 0.1°C
Indication accuracy:Temperature 0.1°C

Safety Protection Equipment

  1. Adjustable over-temperature protection
  2. Temperature fuse wire of test space
  3. Power leakage protectionOverload and short circuit protection
  4. Automatic shutdown upon fault alarming
  5. Overheat of compressor
  6. Overpressure of compressor

After-sale service:

Global professional diagnosis service. Record the real-time operational data to your computer, and send it to us by emailing or instant messenger. Our engineers will review it and provide you a technical feedback report to help you resolve your problem.

Product Catalog:

Temperature and Humidity Test Chamber .pdf
