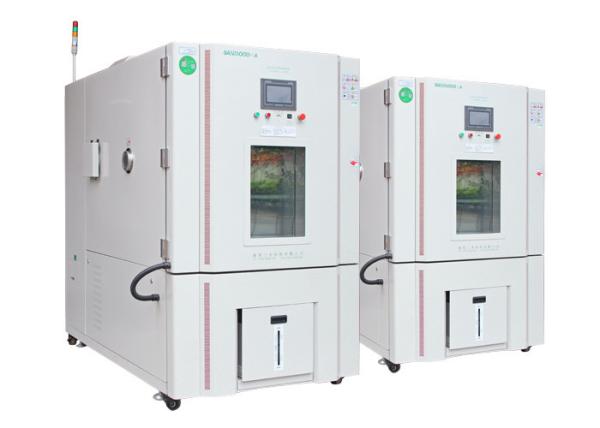

Materials Environmental Testing Equipment , Temperature Humidity Test Chamber
Materials Environmental Testing Equipment , Temperature Humidity Test Chamber
Specifications
Brand Name :
SANWOOD
Model Number :
SM-KS-Series
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Temperature control range :
-70℃～180℃
Temperature fluctuation :
±0.5℃
Temperature uniformity :
±1.5℃ (-40.0℃～100.0℃)
Humidity control range :
10.0%RH～98.0%RH
Humidity fluctuation :
±1.0% RH
Humidity uniformity :
±2.0％RH
Description


Environmental Temperature Humidity Damp Heat Testing Chamber / ESS Chamber


This equipment is widely applied for electronic and electric products, components and materials by constant high low temperature, temperature change, rapid rate temperature change, damp heat etc environmental simulation reliability test.

ModelSM-KS-80-CCSM-KS-150-CCSM-KS-225-CCSM-KS-408-CCSM-KS-800-CCSM-KS-1000-CCSM-KS-1500-CC
TemperatureTemperature control
range		-70℃～180℃
(A:5℃/min;B:10℃/min；C:15℃/min;D:20℃/min)
Temperature fluctuation±0.5℃
Cooling rate155.0℃～-65.0℃ (linear or nonlinear:5.0℃,10.0℃,15.0℃,20.0℃/min)
Heating rate-65.0℃～155.0℃ (linear or nonlinear:5.0℃,10.0℃,15.0℃,20.0℃/min)
Temperature uniformity±1.5℃ (-40.0℃～100.0℃)
±2.0℃ (100.1℃～180.0℃or-40.0℃～-70.0℃)
HumidityHumidity control range10.0%RH～98.0%RH(60℃ above corresponds to 10%RH)
Humidity fluctuation±1.0% RH
Humidity uniformity±2.0％RH
Material /
components		Internal materialAdopts 1.2mm thickness stainess steel(SUS304)
External materialAdopts 1.5mm thickness Cold rolled steel sheet / powder spraying
Heat insulating material100mm thickness polyurethane plate＋10mm thickness mineral wool
FanCentrifugal blower
CompressorSemi-closed Germany Bock, Germany Bitzer
CondenserAir cooling, water cooling
RefrigerantR404A,R23,R508
EvaporatorFin - and - Tube Heat Exchanger
HeaterNickel chromium alloy heating wire
HumidifierSteam humidifier
SizeInterior size(mm)
W*H*D

500*500
*400

500*600
*500

500*750
*600

800*850
*600

1000*1000
*800

1000*1000
*1000

1200*1000
*1250

Volume(L)80L150L225L408L800L1000L1500L
Operating ambient temperature+5 ~ 35℃
SafetyAdjustable over temperature protection, heater dry burning over temperature protection, humidifier dry burning, over temperature protection, automatic stop operation when troubles occur. Leakage protection function cuts off main power supply
Power supply380V AC 50/60Hz380V AC 50/60Hz380V AC 50/60Hz380V AC 50/60Hz380V AC 50/60Hz380V AC 50/60Hz380V AC 50/60Hz
ControllerStandard: South Korea TEMI-1500 Optional: South Korea TEMI-2500,South Korea TEMI-2700


Product Catalog:
Rapid Temperature Change Test Chamber.pdf
