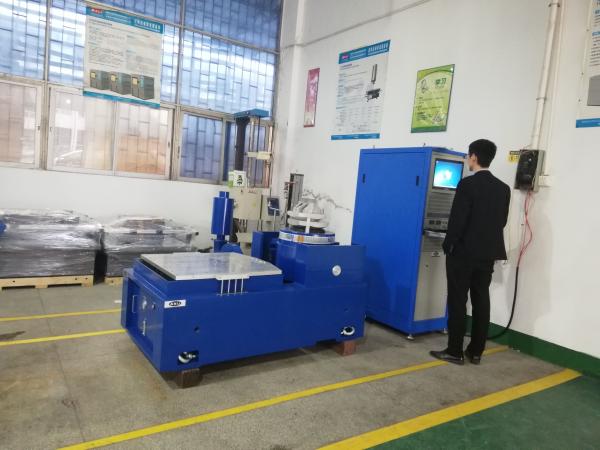

Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Specifications
Brand Name :
ASLI
Model Number :
ES-10
Certification :
CE, ISO,SGS, BV
Place of Origin :
CHINA
MOQ :
1 Set
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets per quarter
Delivery Time :
35 workdays
Packaging Details :
export wooden case
vibration force :
10KN
Vibration direction :
Vertical+Horizontal
cooling method :
Air Cooling
type :
Electromagnetic
test standard :
MIL-STD-810F
table size :
600*600mm
Description

vibration test equipment ES-10.pdf

Air Cooling Vertical+Horizontal Electromagnetic High Frequency Vibration Tester

Product Description
electromagnetic vibration shaker with power analyzer Parameter:
Model
Rated Sine
Force (N)
Rated Random Force (N)
Frequency Range (Hz)
Rated Acceleration (m/s2)
Rated Speed (m/s)
Rated displacement (p-p) mm
Max. Loading (Kg)
moving coil(Kg)
Dimension of Moving coil (mm)
ES-3
3000
3000
3-3500
1000
1.6
25
100
3.5
Φ150
ES-3a
3000
3000
3-3500
400
1.6
40
120
9
Φ230
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450

Technical Parameters of Vertical Expander

Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester

Technical Parameters of Horizontal Expander:

Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester

High Frequency UN38.3 Battery Standard Vibration Test Machine Price Specifications

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

Detailed Images
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Other Products
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester
Air Cooling Vertical Horizontal Electromagnetic High Frequency Vibration Tester

If you need more information about Air Cooling Vertical+Horizontal Electromagnetic High Frequency Vibration Tester, please feel free to send your inquiry.
