Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
Specifications
Brand Name :
ASLI
Model Number :
TH-1000-D
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
20 workdays
Packaging Details :
wooden case
test hole :
50mm or 100mm
water tank :
25L
internal dimension :
W1000*H1000*D1000mm
viewing window :
250*300mm
Controller :
Programmable LCD touch screen
Material :
SUS 304# Stainless steel
Cooling speed :
1~1.5C/min
application :
LED, Battery, PV modules, glass
Description

=click for details>>>>>>>Temperature Humidity Test Cabinet TH-1000-F.pdf

• Water Tank with level detector

• Adjustable Shelf

• With RS485/232 output to computer

• Window Software

Parameter:

Name
Temperature and Humidity Chamber
Model
TH-408(A~F)
TH-800(A~F)
TH-1000(A~F)
Internal Dimension WxHxD(mm)
600x850x800
1000x1000x800
1000x1000x1000
External Dimension WxHxD(mm)
1200x1950x1350
1600x2000x1450
1600x2100x1450
Temperature Range
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)
High Temperature 150°C
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
Control Accuracy of Temperature and Humidity
±0.5°C; ±2.5% R.H.
Temperature Rising/ Falling Velocity
Temperature rising approx. 0.1~3.0°C/min ;
temperature falling approx. 0.1~1.0°C/min;
( Falling Min.1.5°C/min is optional)
Optional Accessories
Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Power
AC380V 3 phase 5 lines , 50/60HZ

Features of Humidity Chamber:

• LCD Touch Screen (TATO TT5166)

• PID Control of Temperature and Humidity

• Both Temperature and Humidity are Programmable (can have 100 pattern, each pattern has 999 segment)

• With Humidity Sensor

•With thermostats (prevent overheat)

• Test Hole (50 mm diameter)

• With Data Storage function by USB Flash Memory

• Protection (phase protection, overheat, over current etc)

• Remote fault notification(optional)

• With Viewing Window

• Anti-condensation technology of the workroom .(Optional)

• User friendly three color LED indicator lamp ,easy to read working condition

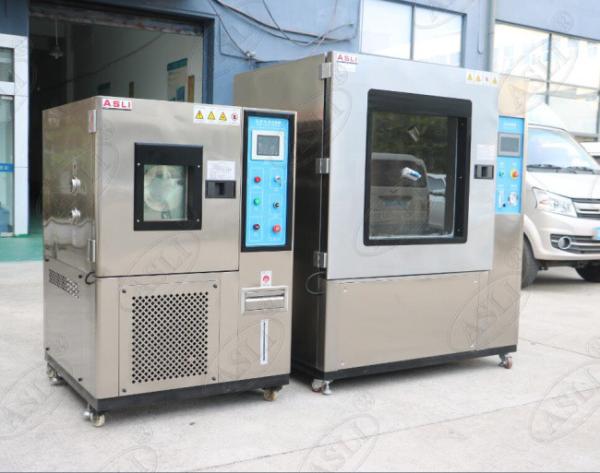

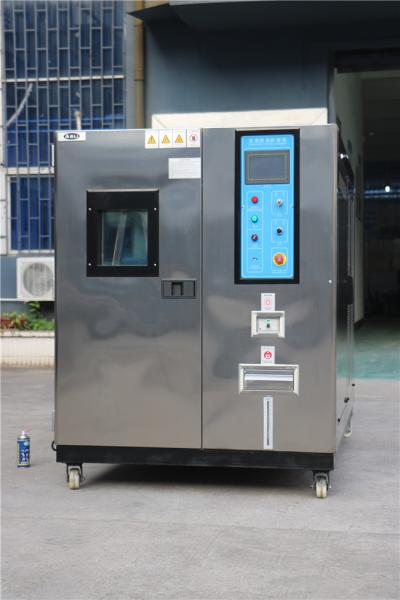

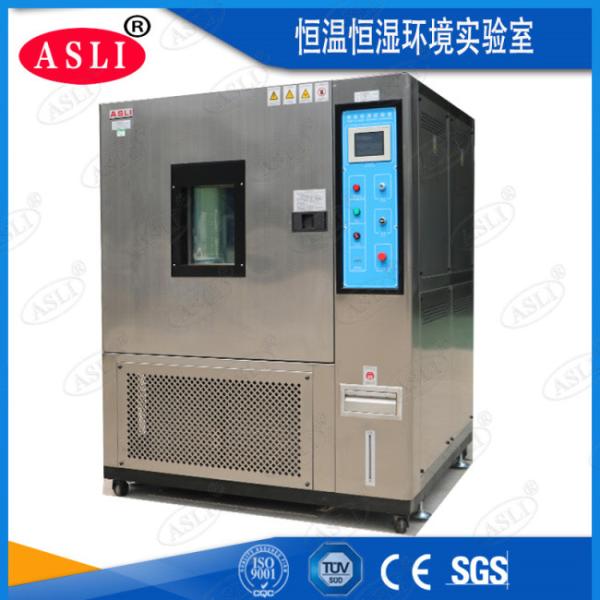

Pictures for reference:

Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber

Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber
