Specifications
Brand Name :
ASLI
Model Number :
TS-80-B
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per year
Delivery Time :
15 workdays
Packaging Details :
wooden case
internal dimension :
W500xH400xD400mm
temperature range :
-55~150C
Product name :
Thermal Shock Test Chamber, Programmable Thermal shock test chamber fast cycling hot and cold, benchtop constant climate test chamber, High low temperature environmental test chambe, hot cold cycling equipment
Body materials :
SUS#304 Stainless Steel Plate
Temperature conversion time :
Less than 10S,within 5sec
Application :
Battery,Bench Top Temperature Humidity chamber,test the prodcuts quality
Description

Thermal Shock Test Chamber TS-80-B.pdf

-55~150C Thermal Shock Chamber for LED Light Environmental Climate Simulation Test

Parameter:

Name Thermal Shock Test Chamber
Model TS-49(A~C) TS-80(A~C) TS-150(A~C)
Internal Dimension WxHxD (mm) 400x350x350 500x400x400 600x500x500
External Dimension WxHxD (mm) 1400x1800x1400 1550x1950x1550 1600x2000x1700
Temperature Range of Testing zone Type A:-40 ℃~+150℃ ( 200℃ is Optional) Type B:-55℃ ~+150℃ ( 200℃ is Optional ) Type C:-65℃ ~+150℃ ( 200℃ is Optional)
Control Accuracy / Distribution Uniformity ±0.5℃/±2℃
Internal and External Material Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Insulation Material High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materials

Specifications

The thermal shock test machine is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.


Test standards


1.GB/T2423.1-1989
2.GB/T2423.2-1989
3.GB/T2423.22-1989
4.GJB150.5-86
5.GJB360.7-87
6.GJB367.2-87 405
7.SJ/T10187-91Y73
8.SJ/T10186-91Y73
9.IEC68-2-14
10.GB/T 2424.13-2002
11.GB/T 2423.22-2002
12.QC/T17-92
13.EIA 364-32

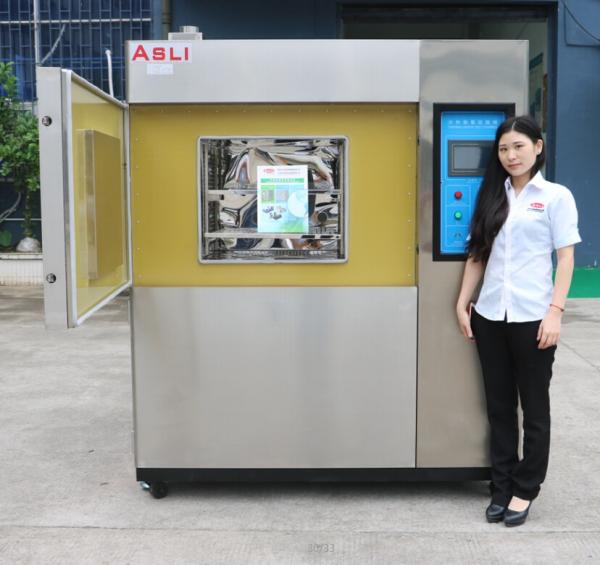

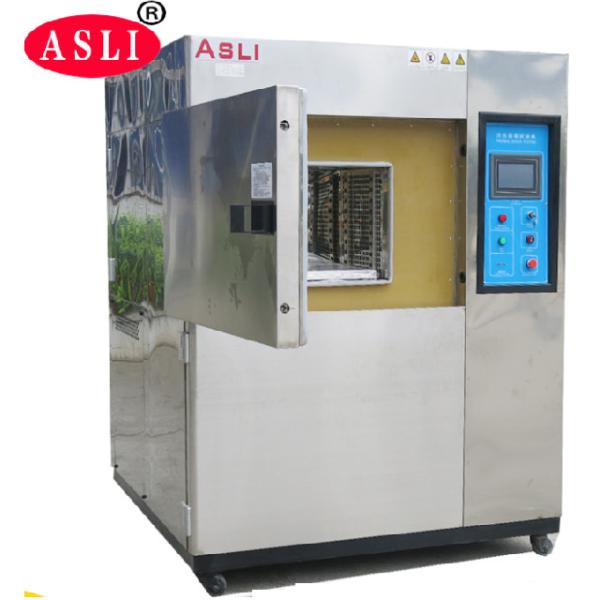

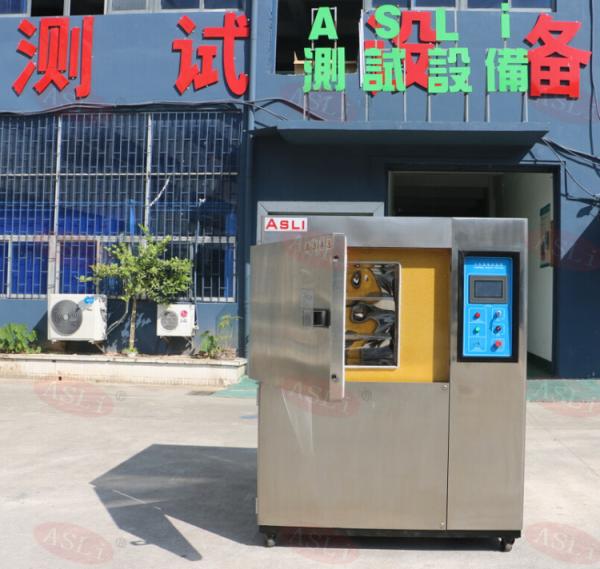

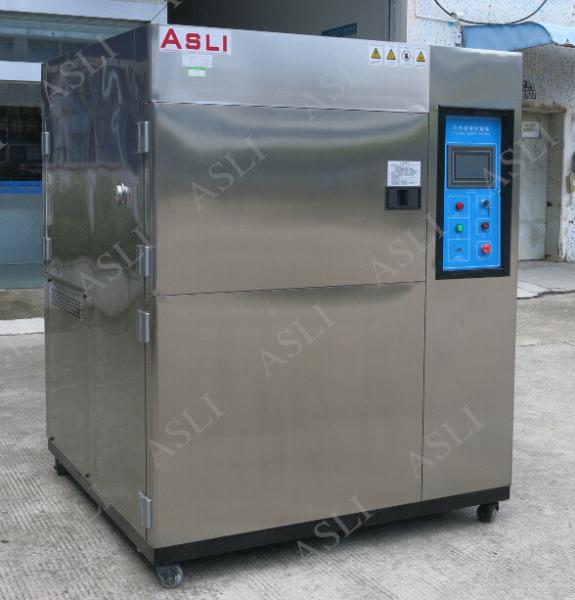

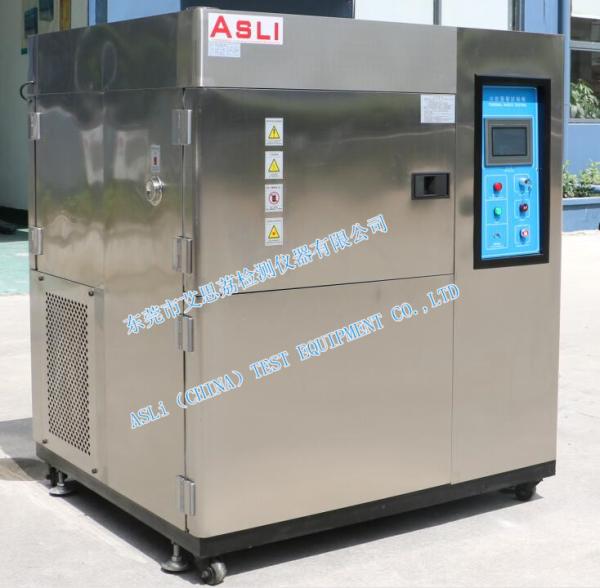

More Pictures for reference:

-55~150C Thermal Shock Chamber For LED Light Environmental Climate Simulation Test
