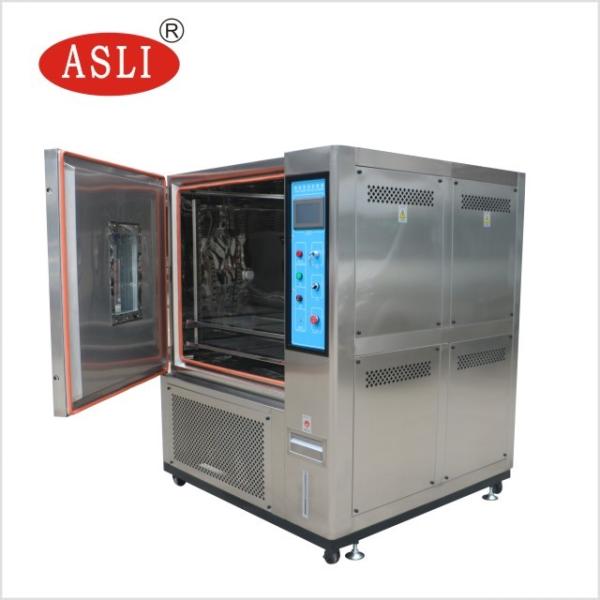

Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Programmable Constant Temperature Humidity Test Machine For LED Light
Specifications
Brand Name :
ASLI
Model Number :
TH-150-D
Certification :
CE, ISO,SGS, BV
Place of Origin :
CHINA
MOQ :
1 Set
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets per quarter
Delivery Time :
20 workdays
Packaging Details :
export wooden case
Temperature range :
-40~+150℃
Humidity range :
20%~98%R.H.(10%-98%R.H / 5%~98%R.H is the specific condition )
Product name :
Humidity Environment Test Chamber
Material :
SUS 304# Stainless steel
Inner size :
150L.etc. Temperature Humidity Inspection Chamber
application :
LED Light
internal dimension :
W500*H600*D500mm
test hole :
Dia. 50mm or bigger
Description

Temperature Humidity Test Chamber TH-150-D.pdf

Programmable Constant Temperature & Humidity Test Machine for LED Light

Application :

High and Low Temperature Humidity Test Chamber has conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing.

It is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.

Temperature Humidity Machine Technical Parameter:

Model TH-150(A~F)

Internal Dimension

WxHxD (mm)

 500x600x500
External Dimension WxHxD (mm) 1050x1750x1050
Temperature Range

Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)

High Temperature 150°C

Humidity Range 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
Indication relolution/ Distribution uniformity of temperature and humidity 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
Control Accuracy of Temperature and Humidity ±0.5°C; ±2.5% R.H.
Temperature Rising/ Falling Velocity

Temperature rising approx. 0.1~3.0°C/min ;

temperature falling approx. 0.3~1.0°C/min;

( Falling Min.1.5°C/min is optional)
Inner and Outer Material Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System Wind cooling or water cooling, (single segment compressor-40°C, double segment compressor -70°C)
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection

Pictures for reference:

Heated humidification system:
1.Adopt U-TYPE SUS#304ss Electric heat pipe heater
2.Humidify barrel made of SUS#304ss,with observation glass and electromagnetic valve of water level
3.Idepently heat,wet humidify,dehumidify system.
4.With auto heating,wetting and demist function,with observation glass and imported tube.
5.Humidification water recycling, automatic filling water system,25L built in draw-out type water tank

Exhibition:

Programmable Constant Temperature Humidity Test Machine For LED Light

Relative Products:

PCT Pressure Cooker Salt Spray Test Chamber Temperature Humidity Vibration System

if you need more information about Programmable Constant Temperature & Humidity Test Machine for LED Light, please feel free to contact us
