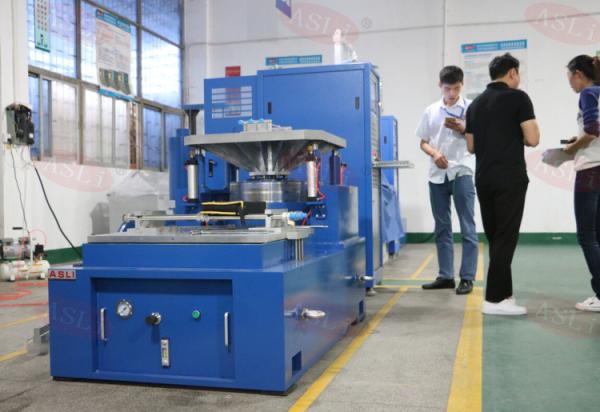

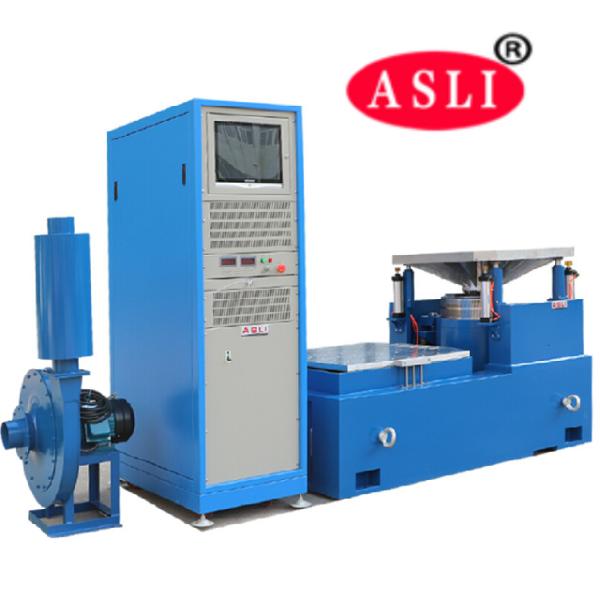

High Frequency Sine Random Vibration Test Machine For Automotive Industry
High Frequency Sine Random Vibration Test Machine For Automotive Industry
High Frequency Sine Random Vibration Test Machine For Automotive Industry
High Frequency Sine Random Vibration Test Machine For Automotive Industry
High Frequency Sine Random Vibration Test Machine For Automotive Industry
High Frequency Sine Random Vibration Test Machine For Automotive Industry
High Frequency Sine Random Vibration Test Machine For Automotive Industry
High Frequency Sine Random Vibration Test Machine For Automotive Industry
High Frequency Sine Random Vibration Test Machine For Automotive Industry
High Frequency Sine Random Vibration Test Machine For Automotive Industry
Specifications
Brand Name :
ASLI
Model Number :
ES-10
Certification :
CE , ISO , SGS
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
400 sets per year
Delivery Time :
45 workdays
Packaging Details :
standard export plywood case
Sine Force :
10000N
Vibration Wave :
sine, random, shock
Vibration Directions :
Three Directions Free Vibration
Acceleration Sensor :
1 pc
Input :
1 channel
Application :
Automotive Industry
Description
High Frequency Sine Random Vibration Test Machine for Automotive Industry
High Frequency Sine Random Vibration Test Machine Parameter:
Model
Rated Sine
Force (N)
Rated Random Force (N)
Frequency Range (Hz)
Rated Acceleration (m/s2)
Rated Speed (m/s)
Rated displacement (p-p) mm
Max. Loading (Kg)
moving coil(Kg)
Dimension of Moving coil (mm)
ES-3
3000
3000
3-3500
1000
1.6
25
100
3.5
Φ150
ES-3a
3000
3000
3-3500
400
1.6
40
120
9
Φ230
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450

Technical Parameters of Vertical Expander

High Frequency Sine Random Vibration Test Machine For Automotive Industry

Technical Parameters of Horizontal Expander:

High Frequency Sine Random Vibration Test Machine For Automotive Industry

High Frequency Vibration Tester Specifications

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

Detailed Images
High Frequency Sine Random Vibration Test Machine For Automotive Industry
ASLI Door to Door Service:
High Frequency Sine Random Vibration Test Machine For Automotive Industry
