Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Specifications
Brand Name :
ASLI
Model Number :
AS-DT-150
Certification :
CE , BV, TUV
Place of Origin :
China
MOQ :
1 Set
Drop Height :
300~1500mm
Application :
water bucket
Max. Load :
60 Kg
Drop Method :
Face, edge, angle
Drop Wing :
Single Wing
Max. Sample Dimension :
1000x800x1000mm
Description

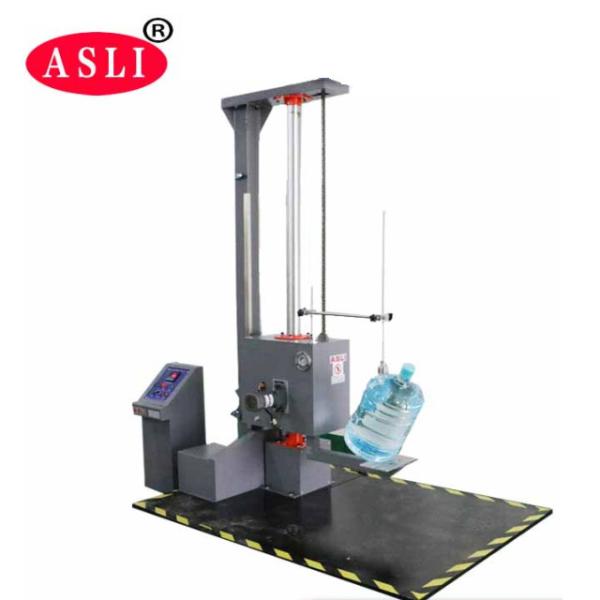

Drop Resistance Test Machine for Water Bucket,Packing Drop Test Equipment
Product Description

Drop Resistance Test Machine for Water Bucket,Packing Drop Test Equipment is used for testing packaged products are free of the damage degree, fall the rhombohedrons, including packaging container, surface can be tested and evaluate electronic components in handling, falling of strength, mainly used for assessment product package in the transportation, loading and unloading process to improve the ability to withstand fall, perfect packaging design.

Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment
Drop Resistance Test Machine Parameter:
Name
 Packing Drop Test Equipment
Model
AS-DT-120
AS-DT-150
AS-DT-200
Max. Weight of Test Samples (Kg)
≥200
60
60
Height of Drop (mm)
0~1200
300~1500
300~2000
Max. Dimension of Test Sample WxHxD (mm)
1200x1200x1200
1000x800x1000
1000x800x1000
Falling Floor Size WxHxD (mm)
1400x50x2000
1700x50x1200
1700x50x1200
Drop Method
Face, edge, angle
Test Bench External Dimension WxHxD (mm)
1400x2000x1800
1700x2700x1200
1700x2700x1200

Drop Resistance Test Machine for Water Bucket Specifications

1,Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.
2,With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.
3,Damping screw lifting mechanism, preventing drop institution unexpectedly glide.
4,Pneumatic automatic chain, preventing swing arm unusual break away.
5,Extensible support bracket and baseboard.

Drop Resistance Test Machine for Water Bucket , Packing Drop Test Equipment

More Drop Resistance Test Machine for Water Bucket,Packing Drop Test Equipment information, please contact us.
