PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
Specifications
Brand Name :
ASLI
Model Number :
SH-90
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100 Sets per month
Delivery Time :
15workdays
Packaging Details :
standard export plywood case
Internal Dimension :
W900*H500*D600mm
Saline test :
35 ℃
Corrosion Test :
50 ℃
Volume :
270 Liters
Saline Concentration :
5% concentration of NaCl
Compressed Air Pressure :
1.0~6.0Kgf
Material :
PVC
Power :
AC220V
Description


PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber

Technical Parameters
Model SH-60 SH-90 SH-120 SH-160 SH-200
Internal Dimension WxHxD (mm) 600x400x450 900x500x600 1200x500x800 1600x500x800 2000x500x800
External Dimension WxHxD (mm) 1100x600x1200 1400x950x1200 1900x1300x1400 2300x1300x1400 2700x1500x1500
Lab Temperature Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C
Pressure Bucket Temperature Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C
Lab Capacity(L) 108 270 480 640 800
Saline Capacity(L) 15 25 40 40 40
Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
Compressed Air Pressure(Kgf) 1.0~6.0
Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
Spray Form Continuous Spraying or Programmable Spraying
Power AC220V 1 phase 3 lines15A
Weight(Kg) 65 80 120 160 200

Application:
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber is specially designed for the testing of the corrosion erosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating, anti-rusting oil and other anti-erosion treatment.

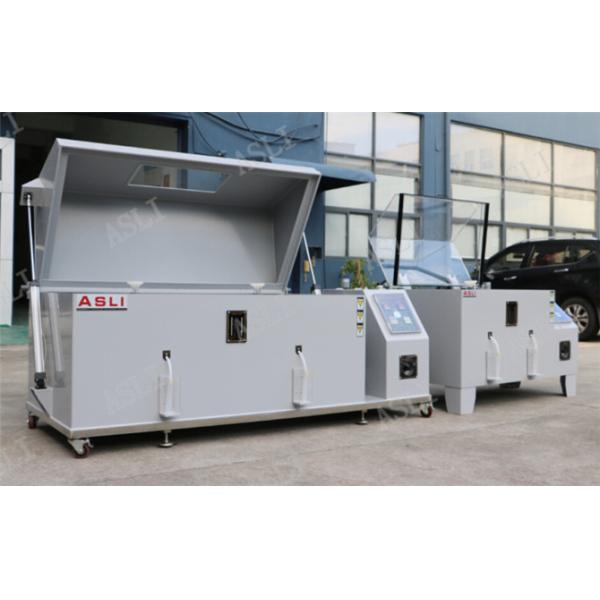

Product Pictures

PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber

PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1°C
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)

Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

PVC Material Cyclic Corrosion Environmental Salt Spray Test Chamber
